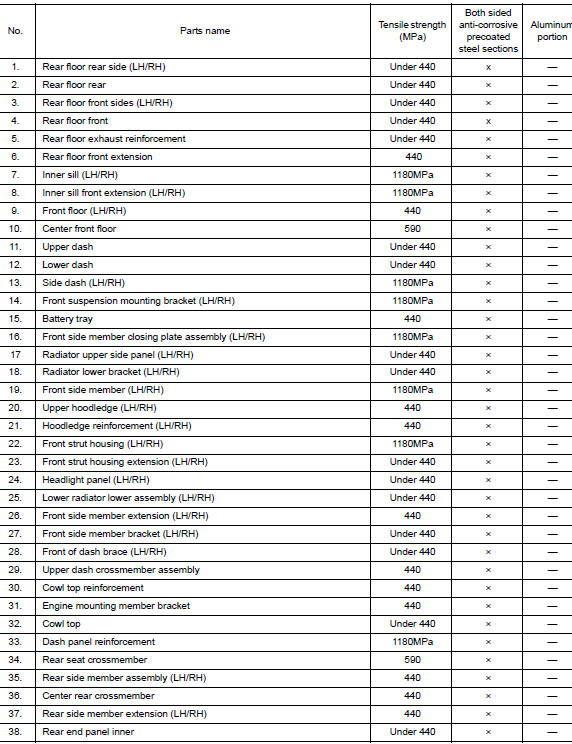

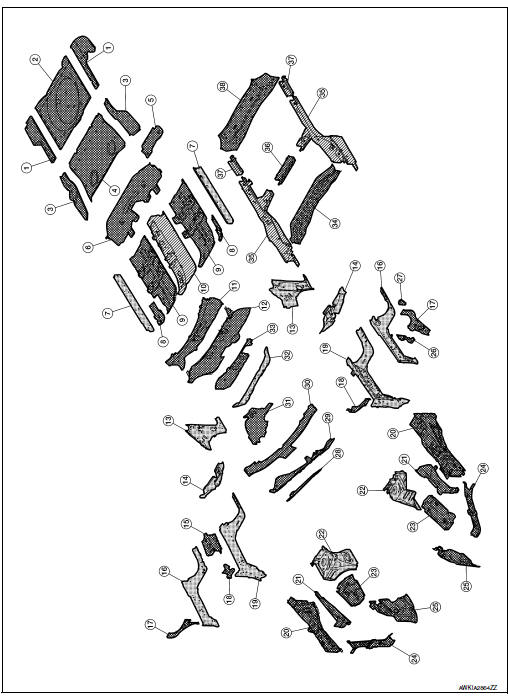

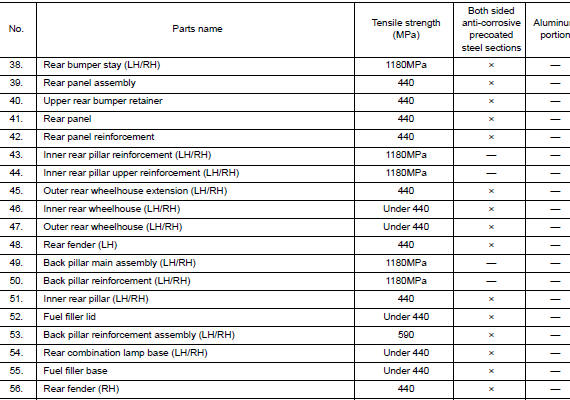

Underbody Component Parts
Both sided anti-corrosive
precoated steel portions
High strength steel (HSS)
portions: 440 MPa
Both sided anti-corrosive
steel and HSS portions: 440 MPa
CAUTION: If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.
NOTE:
- For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
- Tensile strength column shows the largest strength value of a part in the component part.

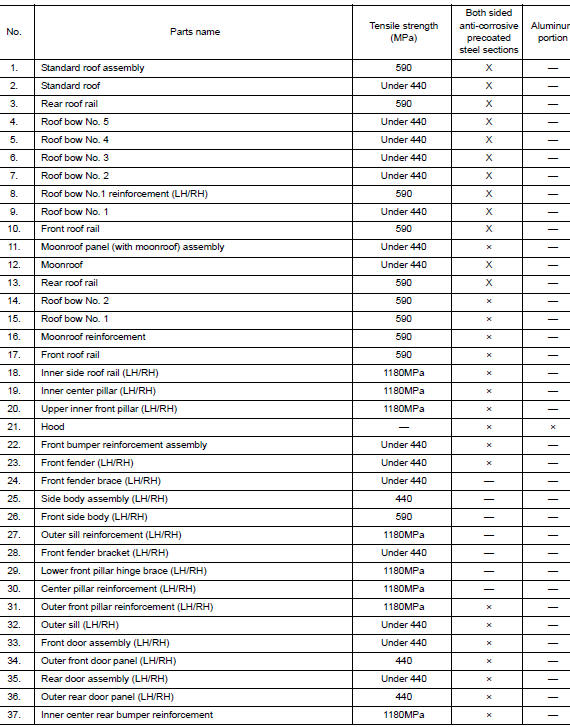

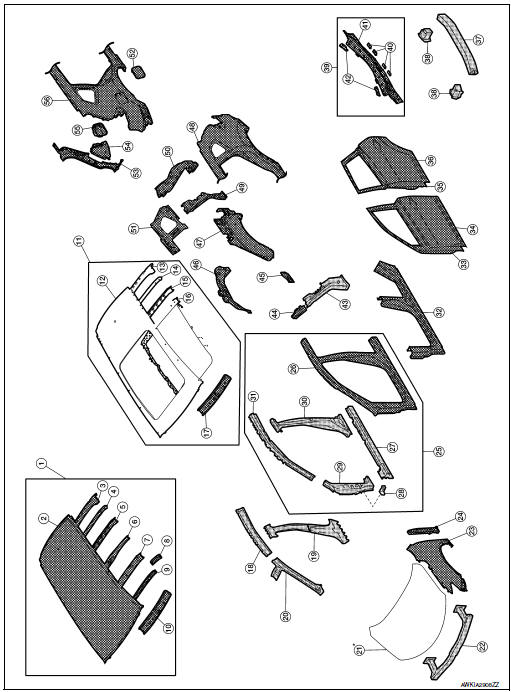

Body Component Parts
Both sided anti-corrosive
precoated steel portions
High strength steel (HSS)
portions
Both sided anti-corrosive
steel and HSS portions
* Aluminum portion
CAUTION: If the high strength steel (ultra high strength steel) is bent or broken, replace by assembly for the supply part.
NOTE:
- For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
- Tensile strength column shows the largest strength value of a part in the component part.
Repairing material
Foam Repair
During factory body assembly, foam insulators are installed in certain body
panels and locations around the
vehicle. Use the following procedure(s) to replace any factory-installed foa ...
