Nissan Rogue Service Manual: Brake pedal
Inspection
BRAKE PEDAL HEIGHT

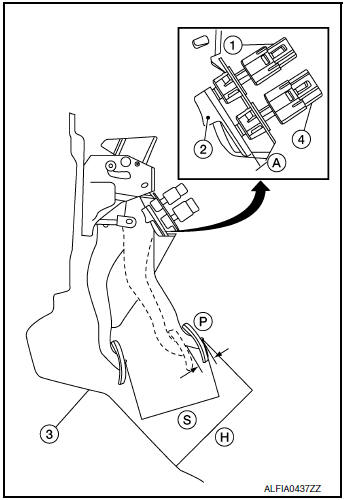

Check the brake pedal height (H) between the dash lower panel (3) and the brake pedal upper surface.
CAUTION: Check the brake pedal height with the floor trim removed.
| Brake pedal height (H) from dash lower panel (3) | Refer to BR-54, "Brake Pedal". |
| Clearance (A) between brake pedal stopper bracket (2), stop lamp switch (4) and brake pedal position switch (1) contact ends | Refer to BR-54, "Brake Pedal". |
| Brake pedal full stroke (S) | Refer to BR-54, "Brake Pedal". |
| Brake pedal play (P) | Refer to BR-54, "Brake Pedal". |
