Nissan Rogue Service Manual: Component parts
MOONROOF

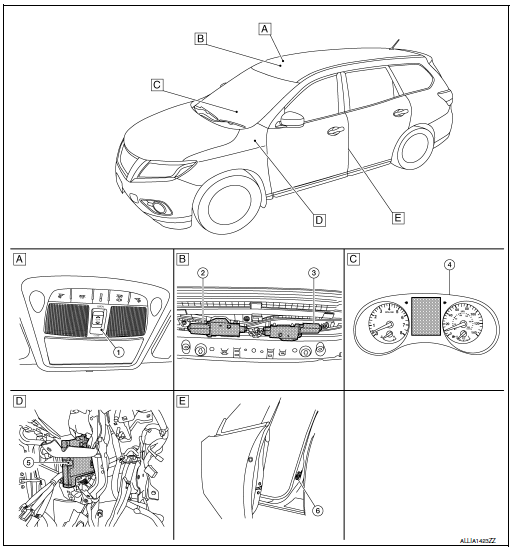

MOONROOF : Component Parts Location
- Moonroof switch
- View with headliner removed
- Combination meter
- Behind instrument panel (LH)
- View with LH door open (RH similiar)
MOONROOF : Component Description
|
No |
Component |
Function |
| 1 | Moonroof switch | Transmits open/close operation signal to the moonroof and sunshade motor assembly. |
| 2 | Sunshade motor | The sunshade motor and CPU are integrated into one unit that opens/closes by input from the moonroof switch operation. |
| 3 | Moonroof motor | The moonroof motor and CPU are integrated into one unit that opens/closes by input from the moonroof switch operation. |
| 4 | Combination meter | Transmits the vehicle speed signal to BCM via CAN communication. |
| 5 | BCM | Supplies the power supply to the moonroof & sunshade motor assembly. |
| 6 | Front door switch LH | Detects door open/close condition and transmits to BCM. |
System
MOONROOF
MOONROOF : System Diagram
MOONROOF & SUNSHADE
MOONROOF : System Description
MOONROOF SYSTEM
INPUT/OUTPUT SIGNAL CHART
Item
Input signal to moonroof motor assem ...
