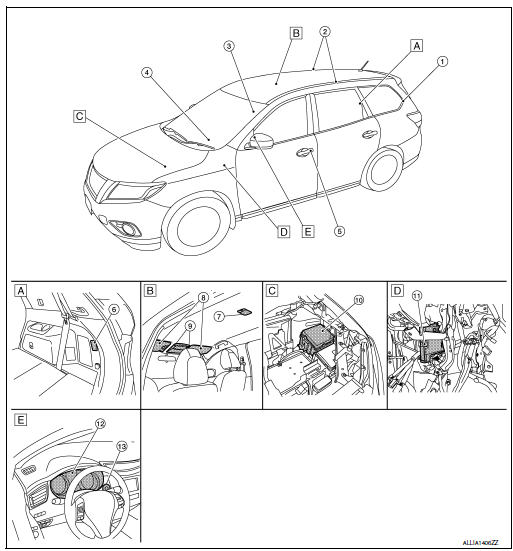

Component Parts Location

Component Parts Location

Rear luggage area (RH)
Front headliner area
Engine compartment (LH)
Left side of instrument panel (view with finish panel removed)
Instrument panel (LH)

No.	Part	Description
1	Back door lock assembly (back door switch)	Refer to DLK-21, "Back Door Lock Assembly".
2	Personal lamps 2nd row	Refer to INL-63, "Bulb Specifications".
3	Front door request switch (RH)	Refer to DLK-24, "Front Door Request Switch (RH)".
4	Optical sensor	Refer to EXL-10, "Optical Sensor".
5	Front door request switch (LH)	Refer to DLK-24, "Front Door Request Switch (LH)".
6	Luggage room lamp	Refer to INL-63, "Bulb Specifications".
7	Room lamp	Refer to INL-63, "Bulb Specifications".
8	Vanity mirror lamps	Refer to INL-63, "Bulb Specifications".
9	Map lamp assembly	Refer to INL-63, "Bulb Specifications".
10	IPDM E/R	Controls audio unit and AV control unit illumination supply voltage according to the request signal from BCM (via CAN communication). Refer to PCS-4, "Component Parts Location" for detailed installation location.
11	BCM	Activates the interior room lamp timer depending on the vehicle condition to turn the interior room lamps ON/OFF. Operates the interior room lamp battery saver depending on the vehicle condition to cut the interior room lamp power supply. Detects each switch condition by the combination switch reading function. Judges the illumination lamp ON/OFF status depending on the vehicle condition. And then it transmits position light request signal to IPDM E/R and combination meter (with CAN communication). Controls the room lamp relay according to the request signal from BCM (via CAN communication). Refer to BCS-7, "BODY CONTROL SYSTEM : Component Parts Location" (with Intelligent Key system) or BCS-79, "BODY CONTROL SYSTEM : Component Parts Location" (without Intelligent Key system) for detailed installation location.

System

INTERIOR ROOM LAMP CONTROL SYSTEM INTERIOR ROOM LAMP CONTROL SYSTEM : System Description SYSTEM DIAGRAM OUTLINE Interior room lamps* are controlled by interior room lamp timer control ...
