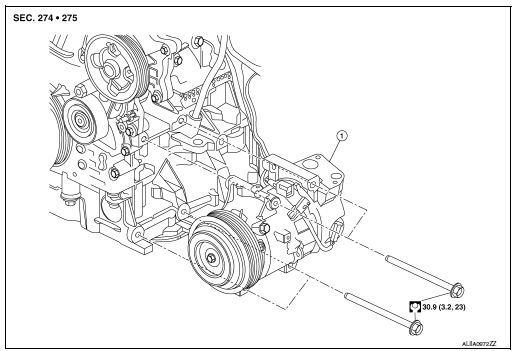

Exploded View

Exploded View

Compressor

Removal and Installation

REMOVAL

Discharge the refrigerant. Refer to HA-23, "Recycle Refrigerant".
Remove the engine under cover. Refer to EXT-37, "ENGINE UNDER COVER : Removal and Installation".
Release the drive belt from the compressor. Refer to EM-13, "Removal and Installation".
NOTE: Complete removal of the drive belt is not necessary.
Partially remove the front fender protector (RH). Refer to EXT-28, "FENDER PROTECTOR : Removal and Installation".

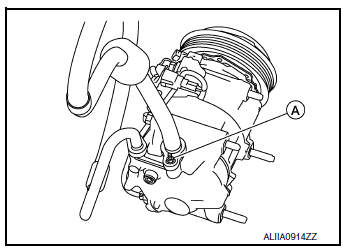

Remove the nut (A) that retains the low-pressure flexible hose to the compressor.
CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

Removal

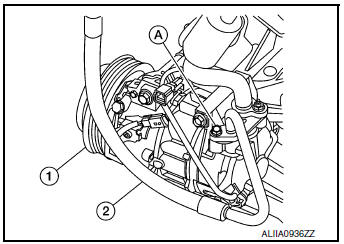

Remove the bolt (A) that retains the high-pressure flexible hose (2) to the compressor (1).

Removal

Disconnect the harness connectors from the compressor.
Remove bolts and compressor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten nut/bolt to specification. Refer to HA-32, "Exploded View".
Do not reuse O-rings.
Apply A/C oil to new O-rings for installation.
After charging refrigerant, check for leaks. Refer to HA-21, "Leak Test".
After installation, check the tension of the drive belt. Refer to EM-13, "Checking".

Cooler pipe and hose

Exploded View Condenser High-pressure flexible hose Low-pressure flexible hose Low-pressure pipe Heating and cooling unit assembly High-pressure pipe Compressor ...
