Nissan Rogue Service Manual: Door mirror remote control switch
Removal and Installation
REMOVAL
- Release pawls using a suitable tool and remove front door pull handle (LH). Refer to INT-15, "Exploded View".

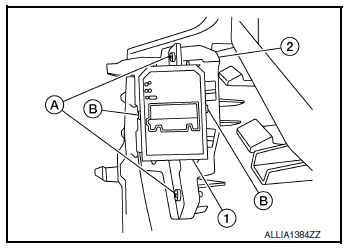

- Release pawls (B) using a suitable tool and remove door mirror remote control switch (1).
- Remove screws (A) and door mirror remote control switch bracket (2) (if necessary).
INSTALLATION
Installation is in the reverse order of removal.
Side camera finisher
Removal and Installation
The side camera finisher (if equipped) or door mirror lower finisher is
serviced as part of the door mirror rear
finisher. Refer to MIR-25, "Removal and Installation& ...
