Nissan Rogue Service Manual: ECU diagnosis information

Nissan Rogue Service Manual / Ventilation, heater & air conditioner / Heater & Air Conditioning Control System / Automatic air conditioning / ECU diagnosis information

A/C AUTO AMP.

Reference Value

VALUES ON THE DIAGNOSIS TOOL

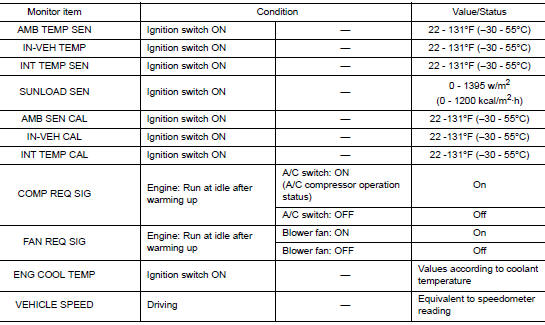

Values on the diagnosis tool

TERMINAL LAYOUT

Terminal layout

PHYSICAL VALUES

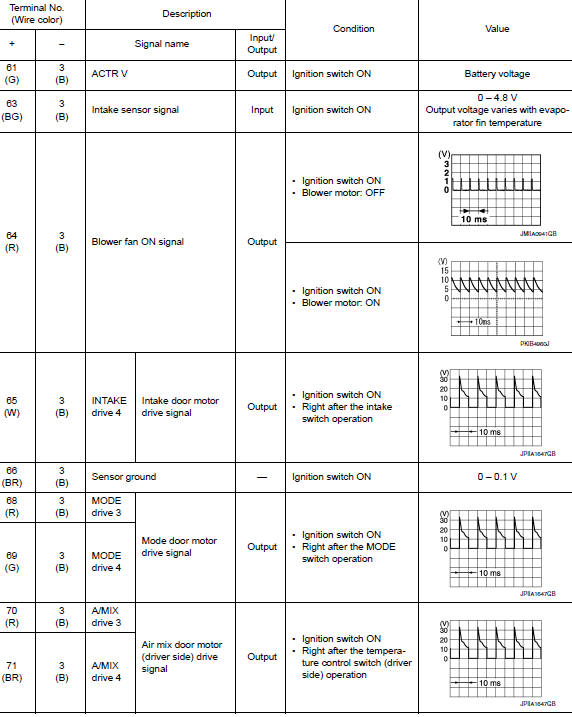

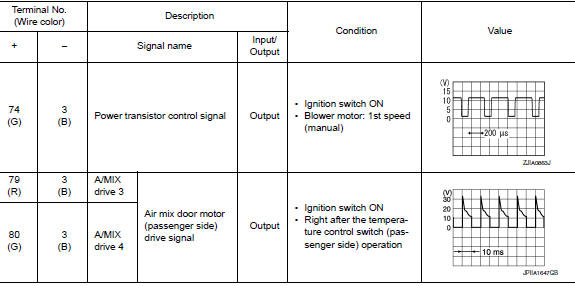

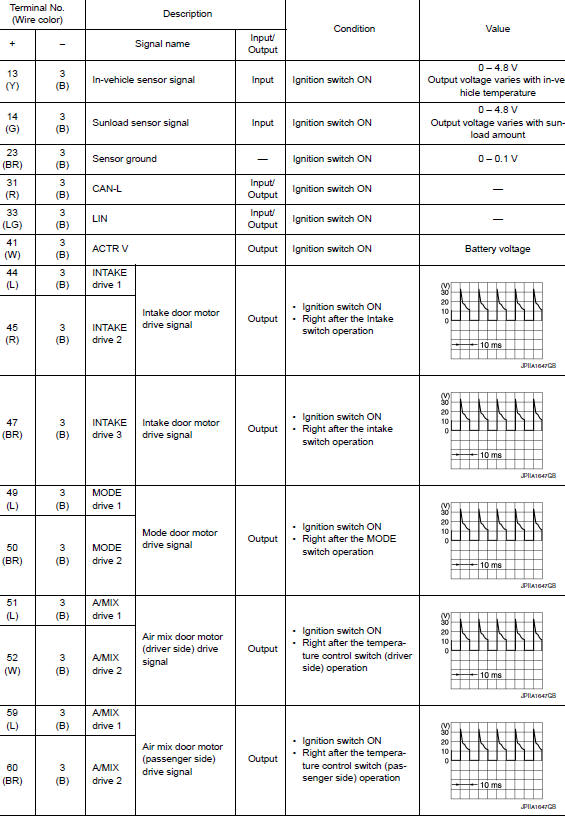

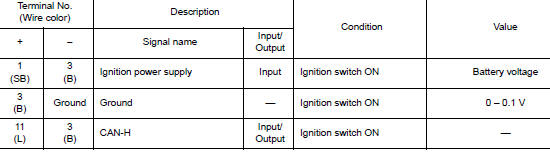

Physical values

DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.

Priority	Detected items (DTC)
1	U1000: CAN COMM CIRCUIT U1010: CONTROL UNIT (CAN)
2	B24A9: SUNLOAD SEN B24A0: A/C AUTO AMP. B24A1: A/C AUTO AMP. POWER SUPPLY B24A4: INTAKE TEMP SEN B24A6: IN-VEHICLE SEN B24BB: LEFT AIRMIX ACTR B24BD: RIGHT AIRMIX ACTR B24B4: A/C CONTROL B24B6: A/C CONTROL B24B7: INTAKE ACTR B24B9: MODE ACTR B24C3: BLOWER MOTOR FEEDBACK B24C6: BLOWER MOTOR CONTROL B24D4: A/C CONTROL COMMUNICATION

DTC Index

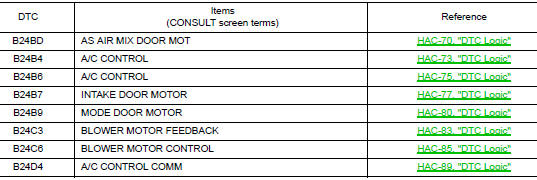

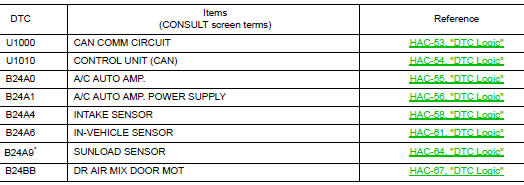

DTC Index

*: Perform self-diagnosis under direct sunlight. When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise selfdiagnosis reports an error even though the sunload sensor is functioning normally.

ECM, IPDM E/R, BCM

List of ECU Reference

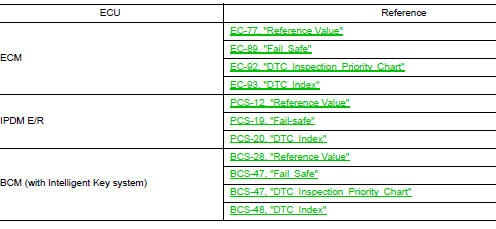

List of ECU Reference
