Nissan Rogue Service Manual: ECU diagnosis information
FRONT AIR CONTROL
Reference Value

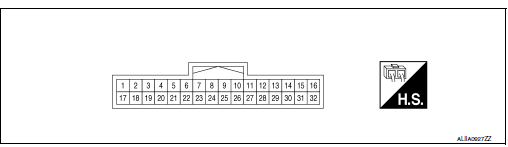

TERMINAL LAYOUT

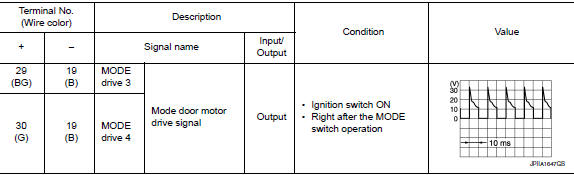

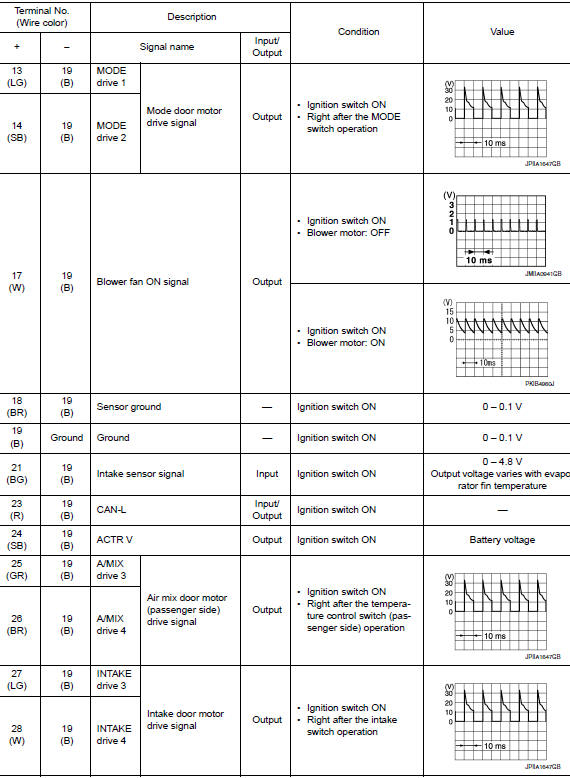

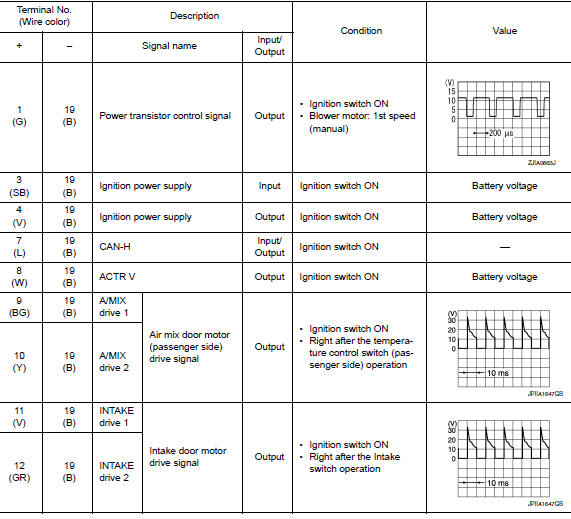

PHYSICAL VALUES
DTC Inspection Priority Chart
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.
|
Priority |
Detected items (DTC) |
| 1 |
|
| 2 |
|

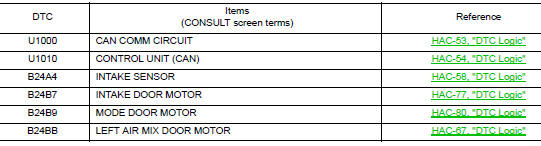

DTC Index
ECM, IPDM E/R, BCM

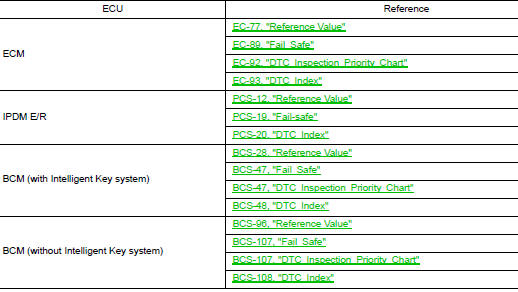

List of ECU Reference
System description
COMPONENT PARTS
Component Part Location
RH side of engine compartment
RH front of vehicle (view with front
bumper fascia removed)
No.
Component
Description
...
Wiring diagram
MANUAL AIR CONDITIONING SYSTEM
Wiring Diagram
...
