Nissan Rogue Service Manual: ECU diagnosis information
Nissan Rogue Service Manual / Driver information &
multimedia / Audio, Visual & Navigation System / Display audio / ECU diagnosis information
AUDIO UNIT
Reference Value

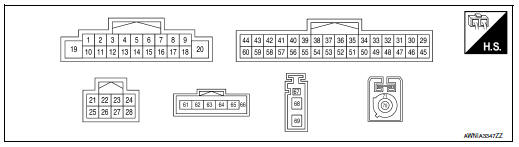

TERMINAL LAYOUT

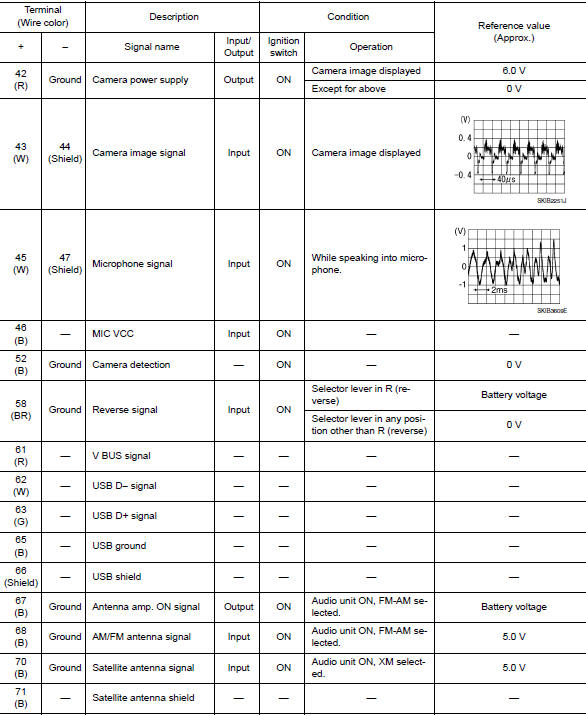

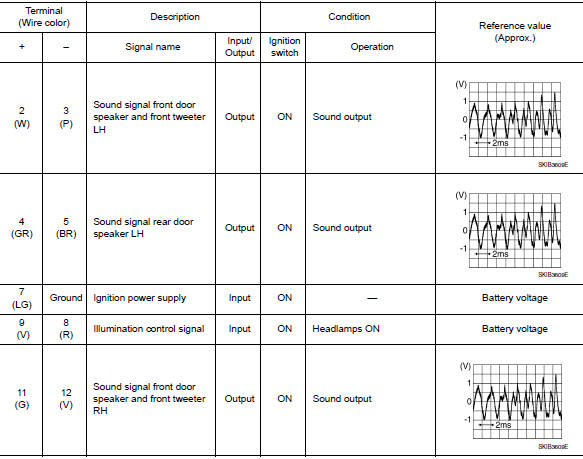

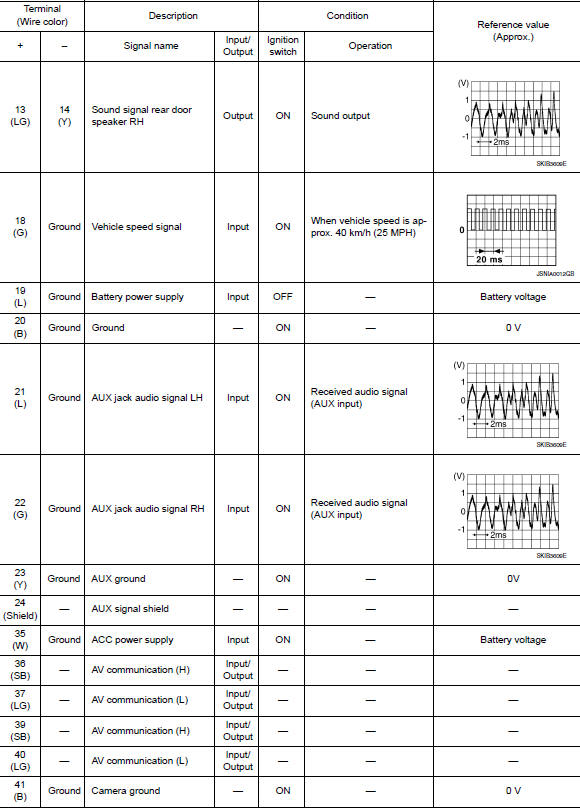

PHYSICAL VALUES
System description
COMPONENT PARTS
Component Parts Location
Center of back door
No.
Component
Function
1
Rod antenna
Refer to AV-14, "Rod Antenna, Antenna Amp., S ...
Wiring diagram
DISPLAY AUDIO
Wiring Diagram
...
