Nissan Rogue Service Manual: ECU diagnosis information
AV CONTROL UNIT
Reference Value

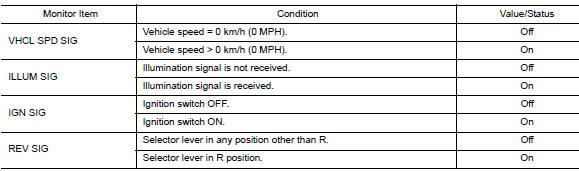

VALUES ON THE DIAGNOSIS TOOL

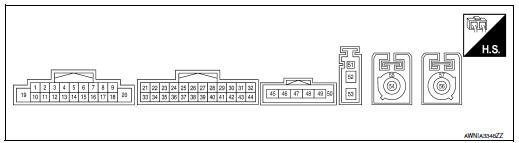

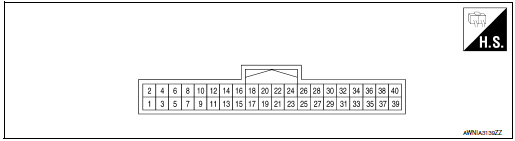

TERMINAL LAYOUT

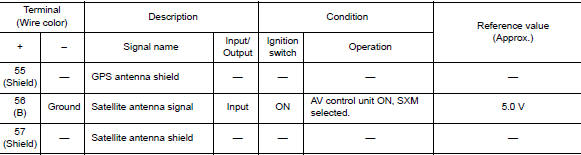

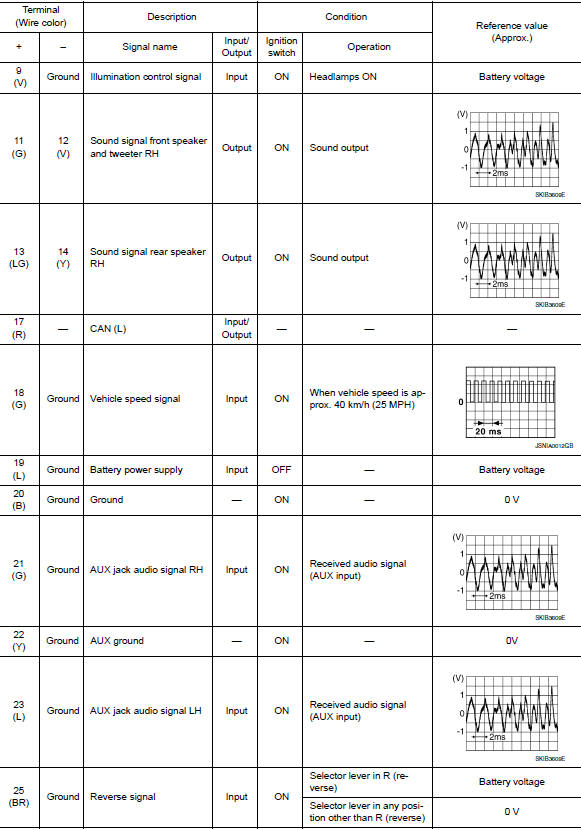

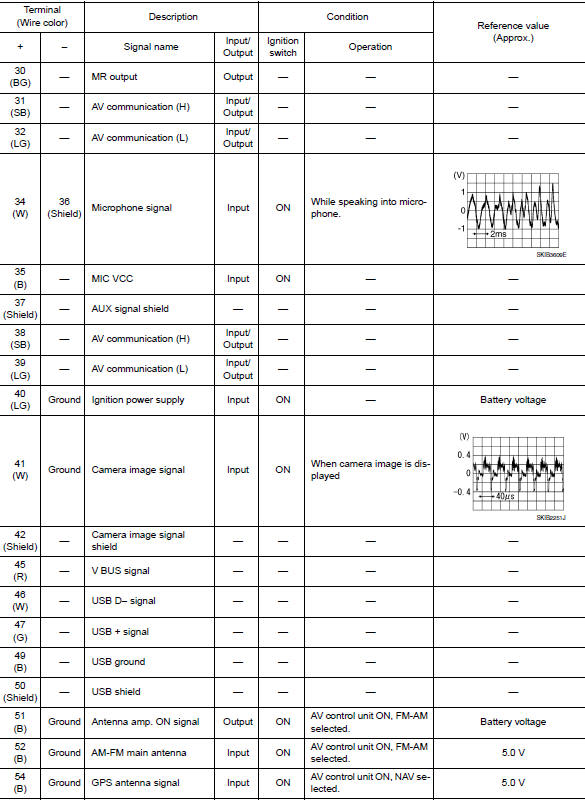

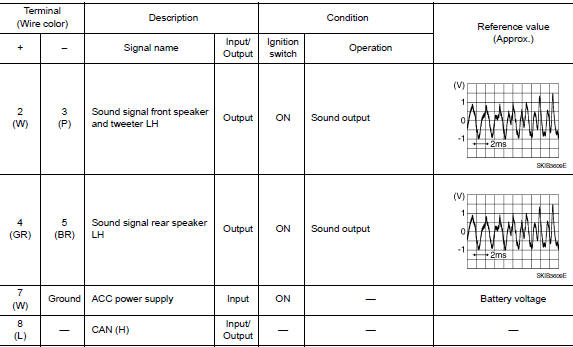

PHYSICAL VALUES

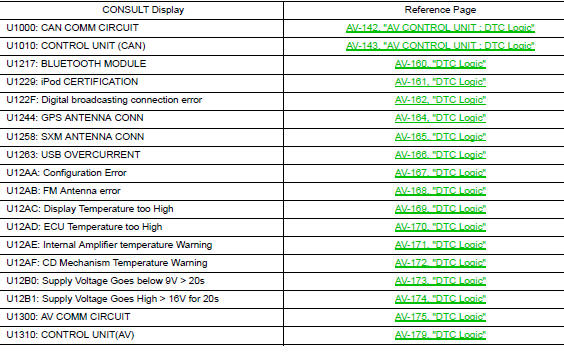

DTC Index
AROUND VIEW MONITOR CONTROL UNIT
WITHOUT DRIVER ASSISTANCE SYSTEM
WITHOUT DRIVER ASSISTANCE SYSTEM : Reference Value

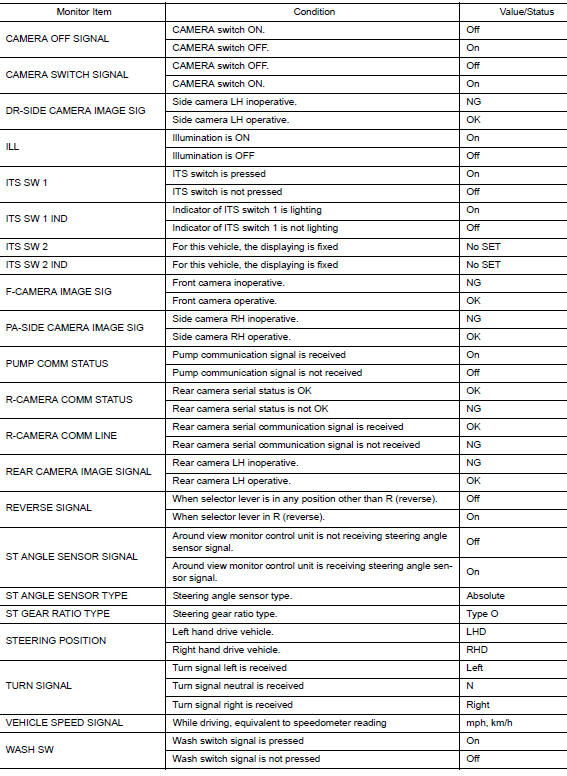

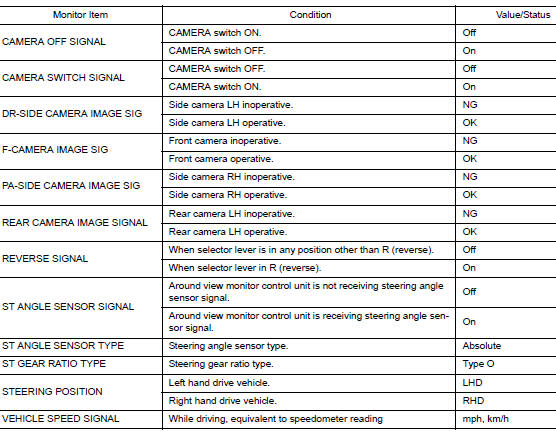

VALUES ON THE DIAGNOSIS TOOL

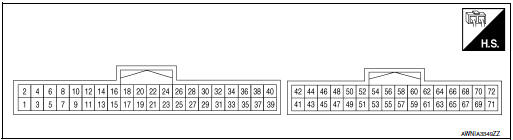

TERMINAL LAYOUT

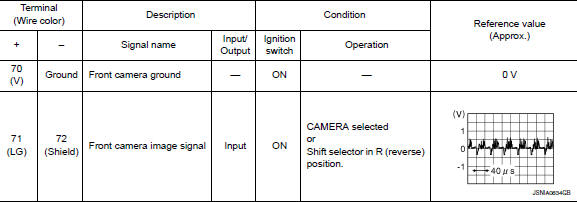

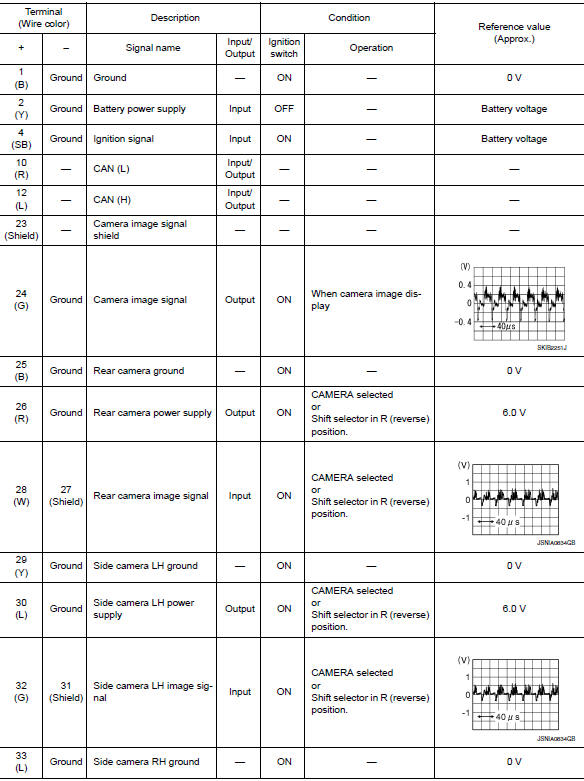

PHYSICAL VALUES

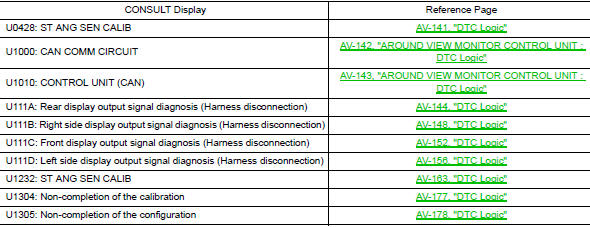

WITHOUT DRIVER ASSISTANCE SYSTEM : DTC Index
WITH DRIVER ASSISTANCE SYSTEM
WITH DRIVER ASSISTANCE SYSTEM : Reference Value

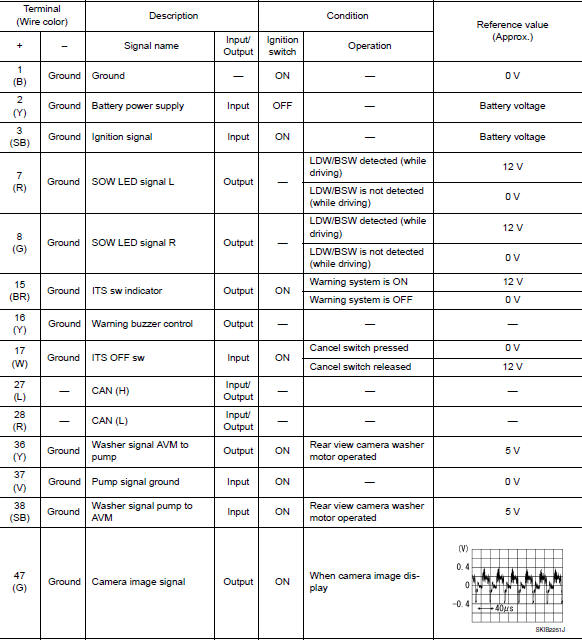

VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT

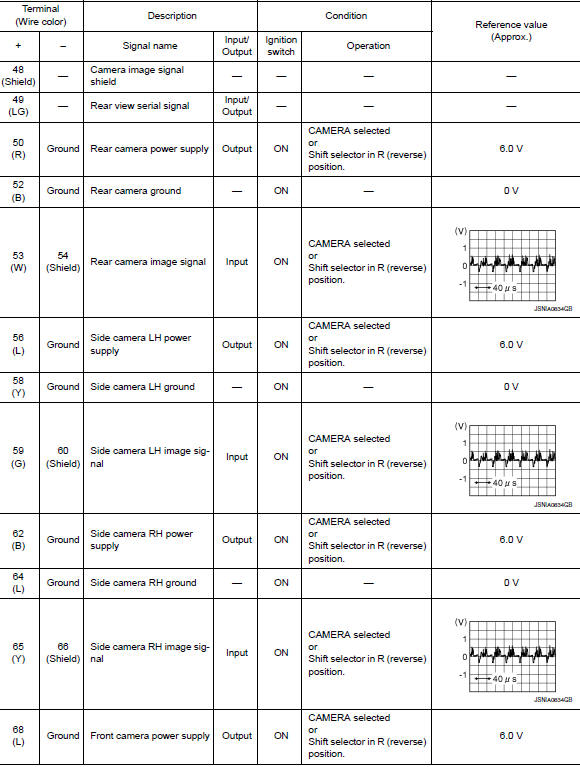

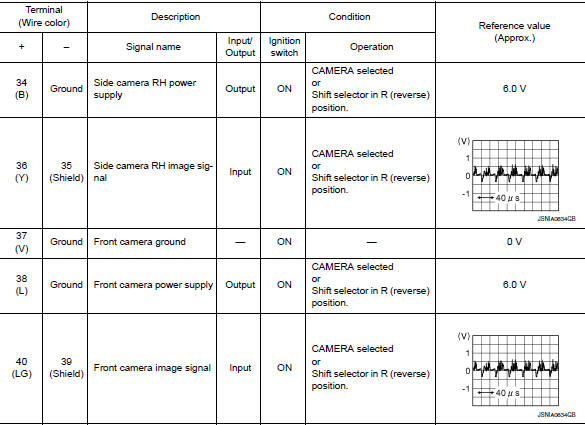

PHYSICAL VALUES

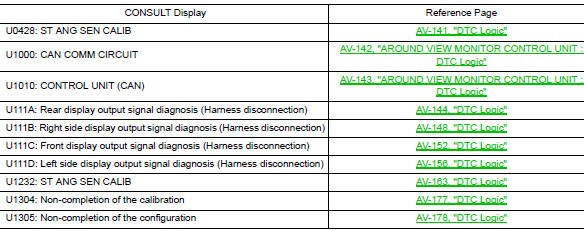

WITH DRIVER ASSISTANCE SYSTEM : DTC Index
System description
COMPONENT PARTS
Component Parts Location
Center of back door
View with glove box removed
No
Component
Function
1
Rod antenna
Refer to AV-232, &qu ...
Wiring diagram
NAVIGATION WITHOUT BOSE
Wiring Diagram
...
