Nissan Rogue Service Manual: ECU diagnosis information
AV CONTROL UNIT
Reference Value

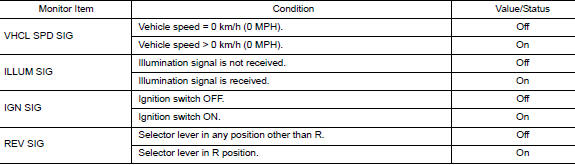

VALUES ON THE DIAGNOSIS TOOL

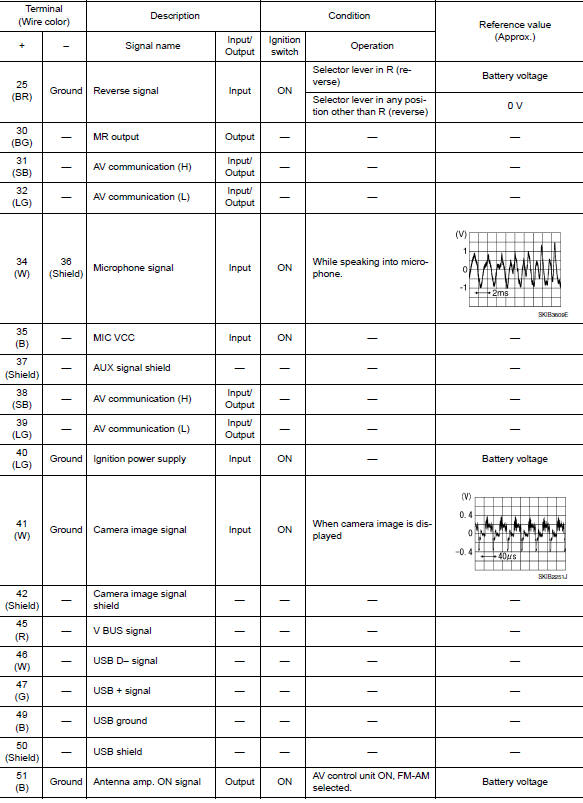

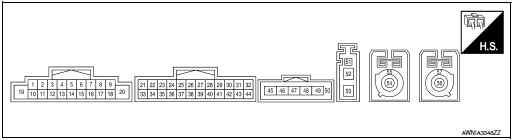

TERMINAL LAYOUT
PHYSICAL VALUES

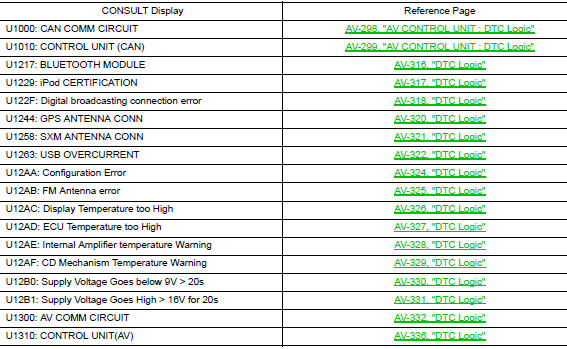

DTC Index
BOSE SPEAKER AMP
Reference Value

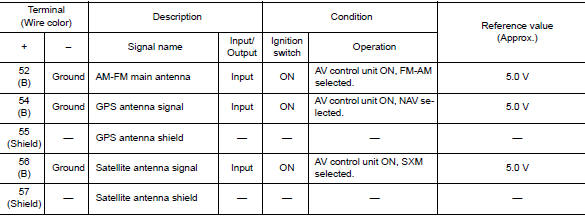

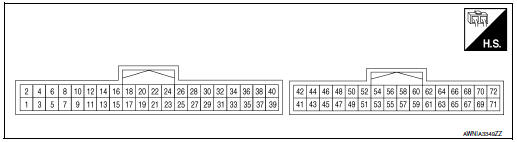

TERMINAL LAYOUT

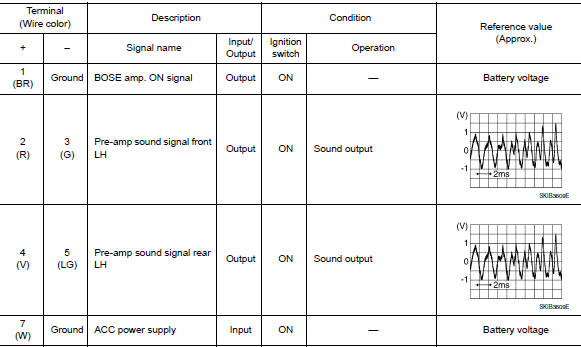

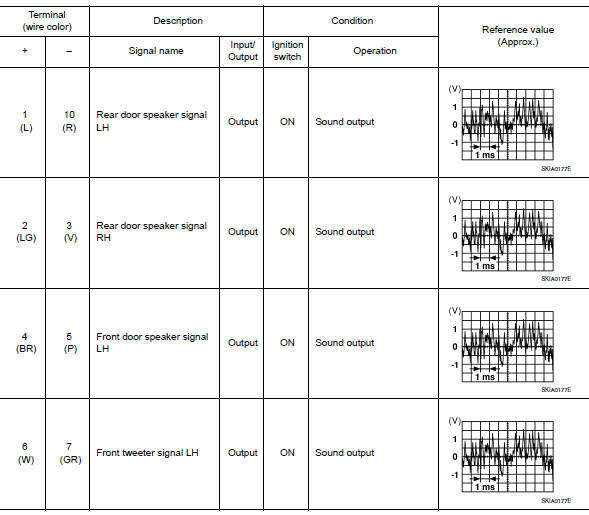

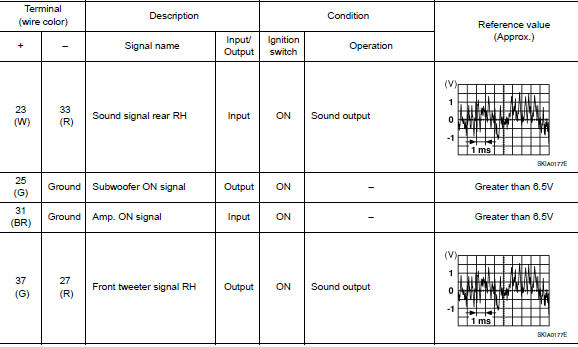

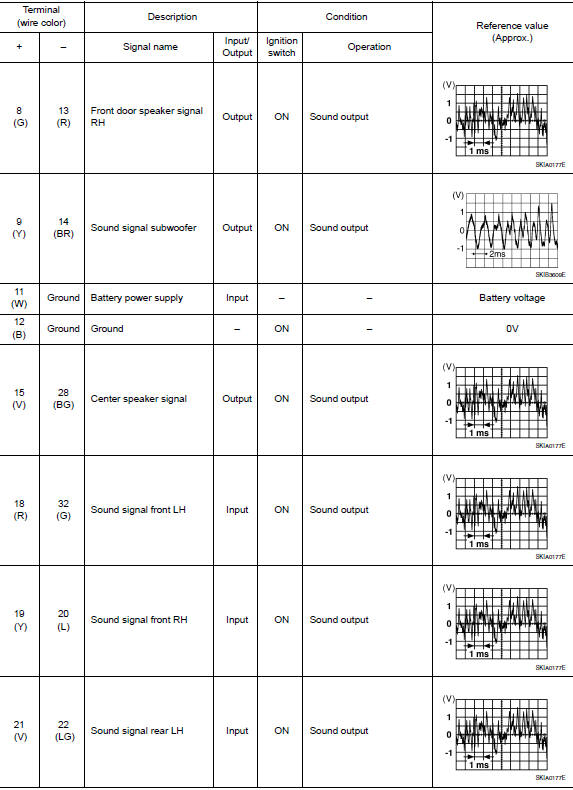

PHYSICAL VALUES
AROUND VIEW MONITOR CONTROL UNIT
WITHOUT DRIVER ASSISTANCE SYSTEM
WITHOUT DRIVER ASSISTANCE SYSTEM : Reference Value

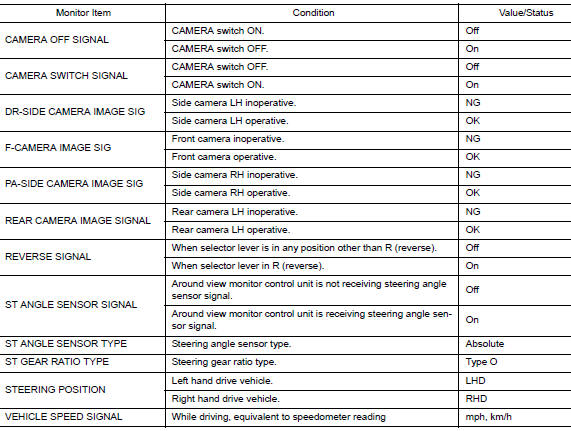

VALUES ON THE DIAGNOSIS TOOL

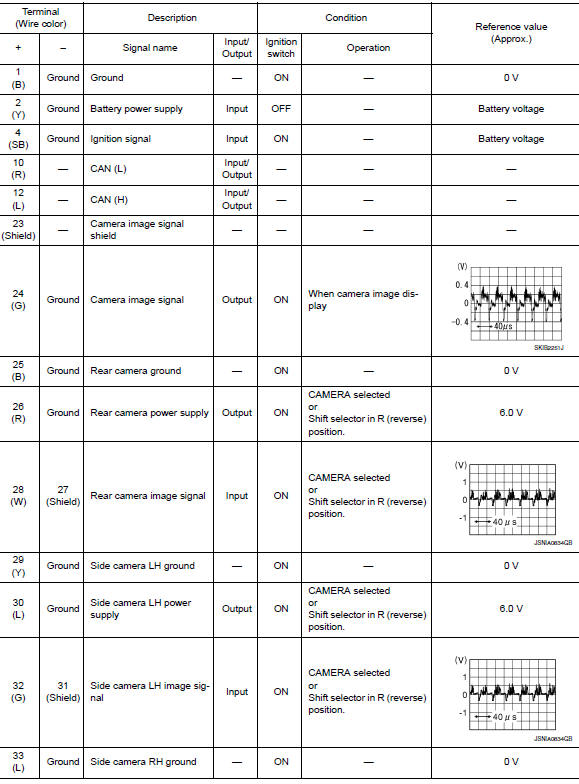

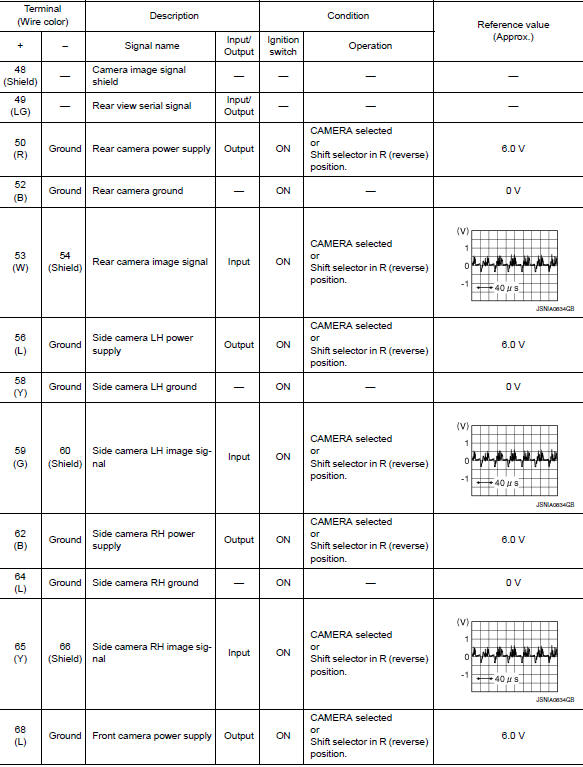

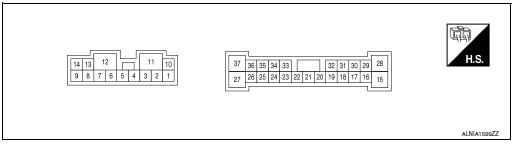

TERMINAL LAYOUT

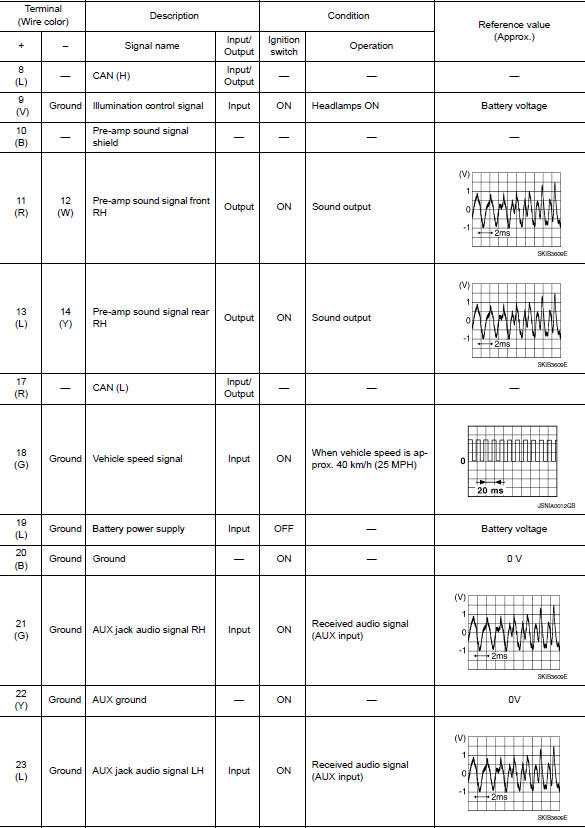

PHYSICAL VALUES

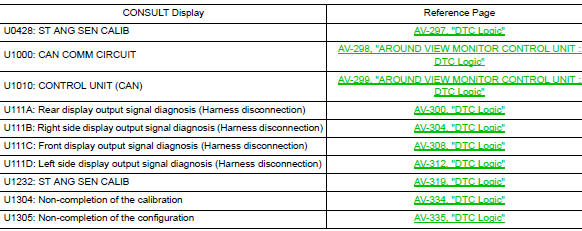

WITHOUT DRIVER ASSISTANCE SYSTEM : DTC Index
WITH DRIVER ASSISTANCE SYSTEM
WITH DRIVER ASSISTANCE SYSTEM : Reference Value

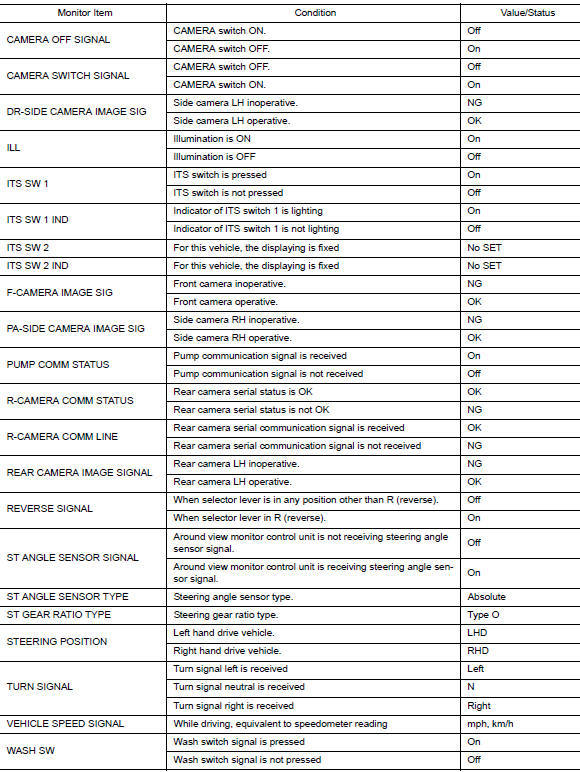

VALUES ON THE DIAGNOSIS TOOL

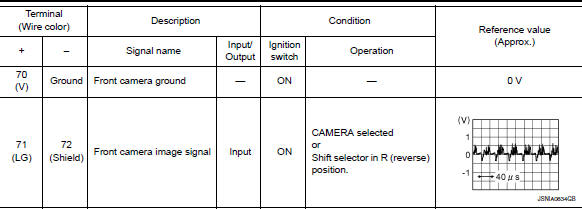

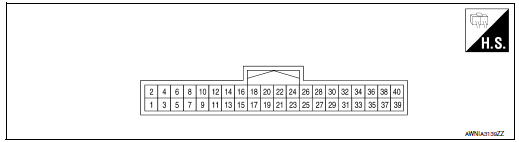

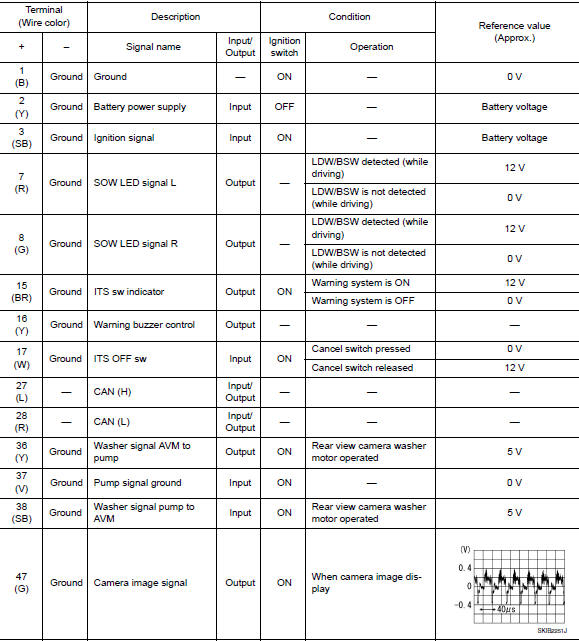

TERMINAL LAYOUT

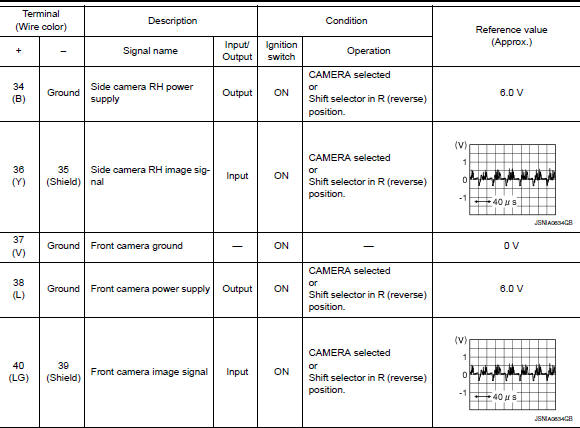

PHYSICAL VALUES

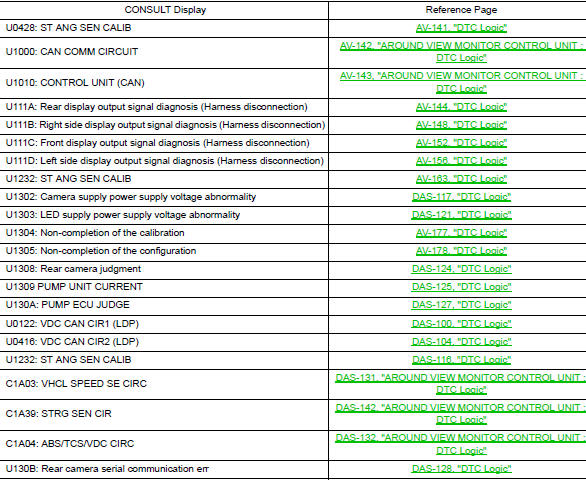

WITH DRIVER ASSISTANCE SYSTEM : DTC Index
System description
COMPONENT PARTS
Component Parts Location
View under rear of front passenger
seat
View with spare tire cover removed
Center of back door
View with glove box removed
...
Wiring diagram
NAVIGATION WITH BOSE
Wiring Diagram
...
