Nissan Rogue Service Manual: ECU diagnosis information
CHASSIS CONTROL MODULE
Reference Value

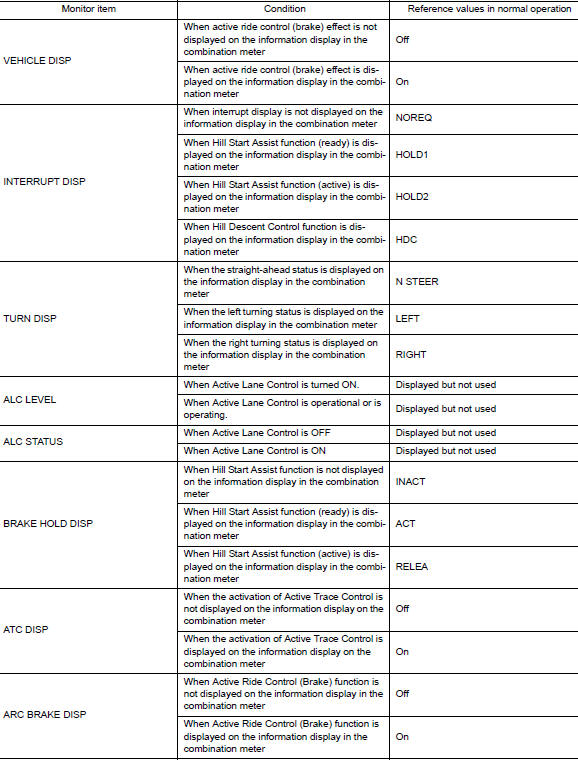

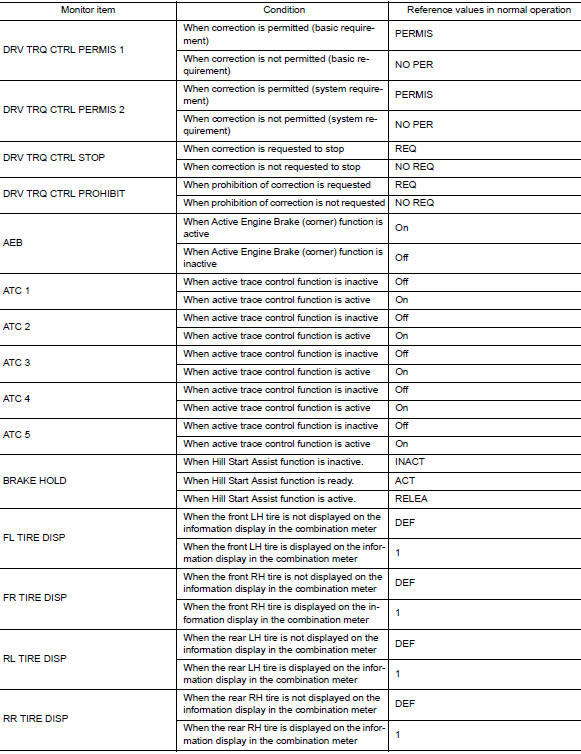

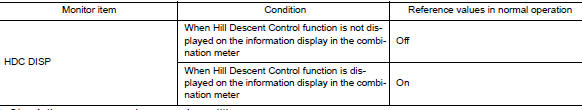

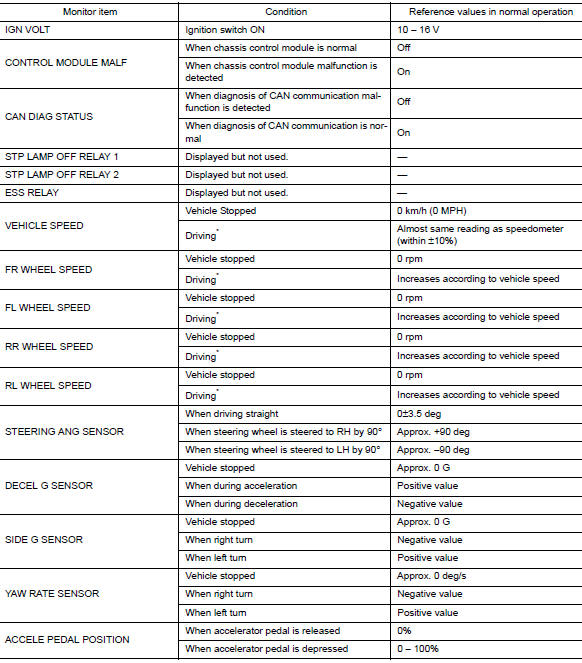

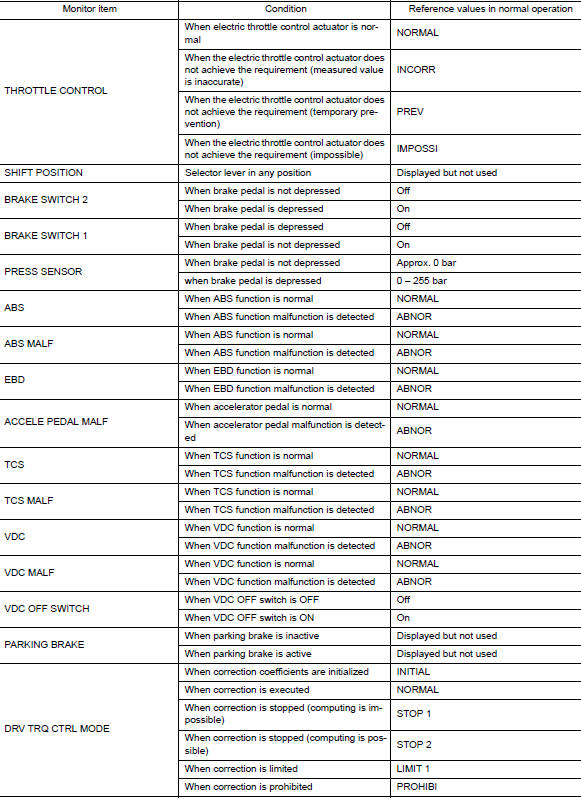

CONSULT DATA MONITOR STANDARD VALUE
NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.
*: Check tire pressure under normal conditions.

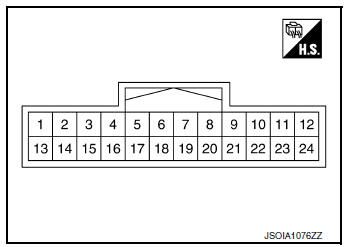

TERMINAL LAYOUT

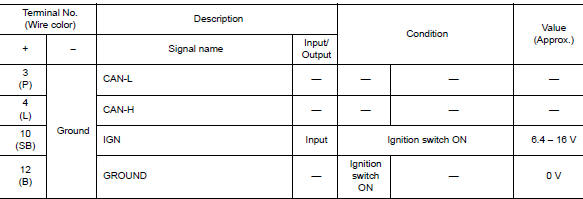

PHYSICAL VALUES

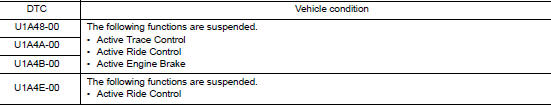

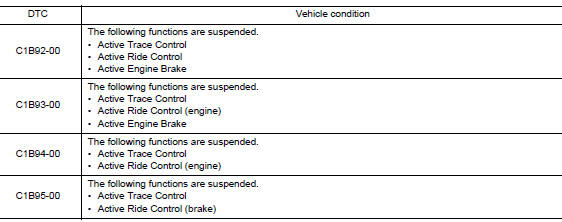

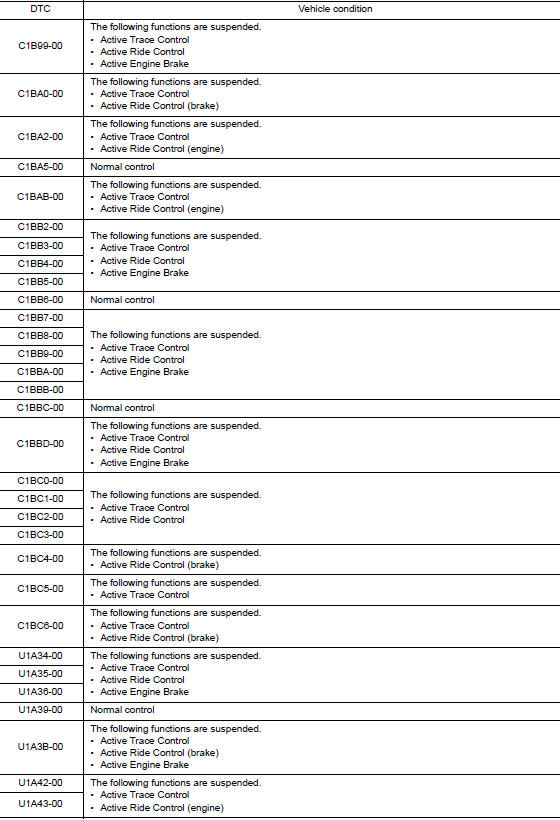

Fail-Safe (Chassis Control Module)
When a malfunction occurs in the chassis control module, the master warning lamp turns ON and an interrupt is displayed on the information display of the combination meter.

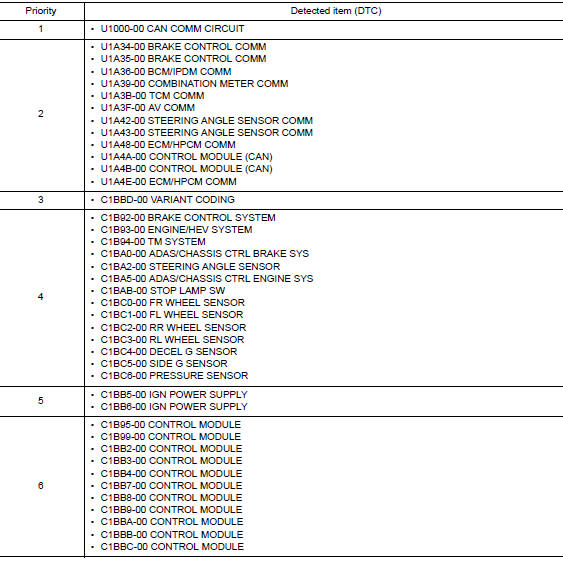

DTC Inspection Priority Chart
When multiple DTCs are displayed simultaneously, check them one by one according to the following priority list.

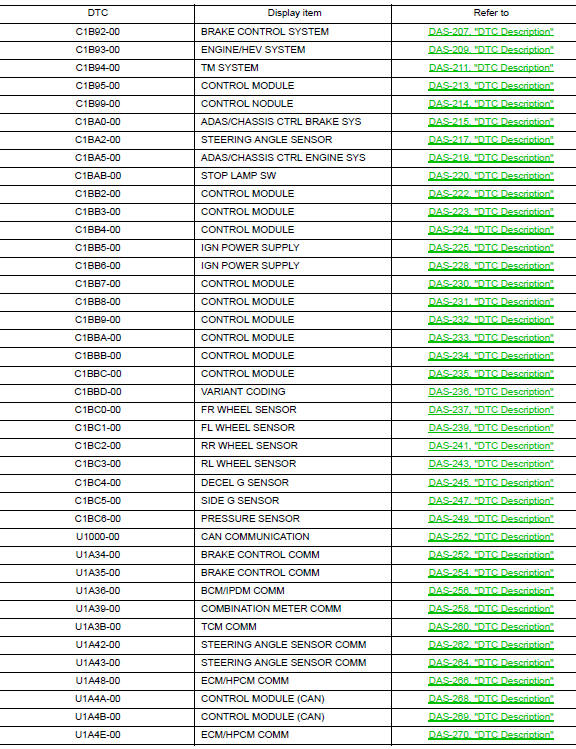

DTC Index
System description
COMPONENT PARTS
Component Parts Location
Front of vehicle
Instrument panel LH
View with glove box removed
Rear of engine compartment RH
RH front of vehicle
Front of engine compar ...
Wiring diagram
CHASSIS CONTROL
Wiring Diagram
...
