Nissan Rogue Service Manual: ECU diagnosis information
DIAGNOSIS SENSOR UNIT
DTC Index

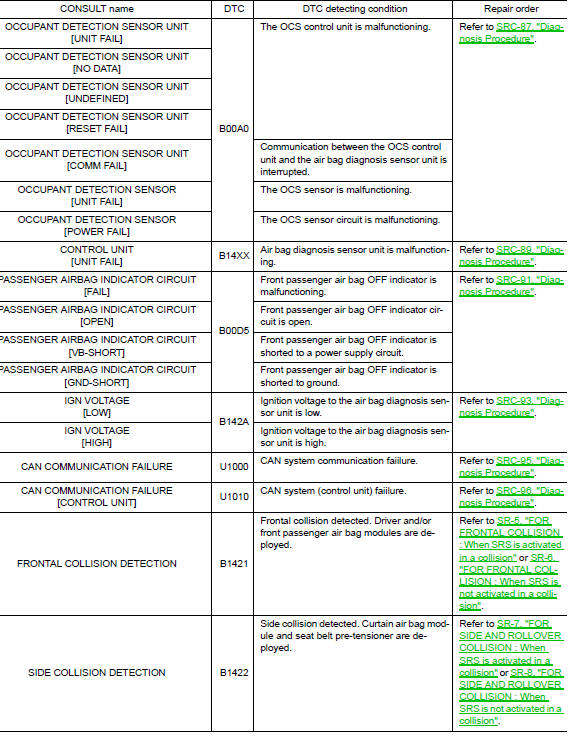

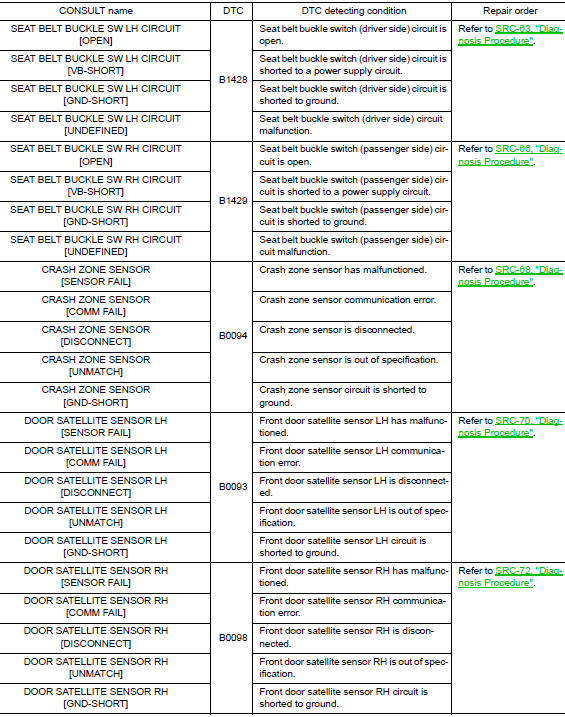

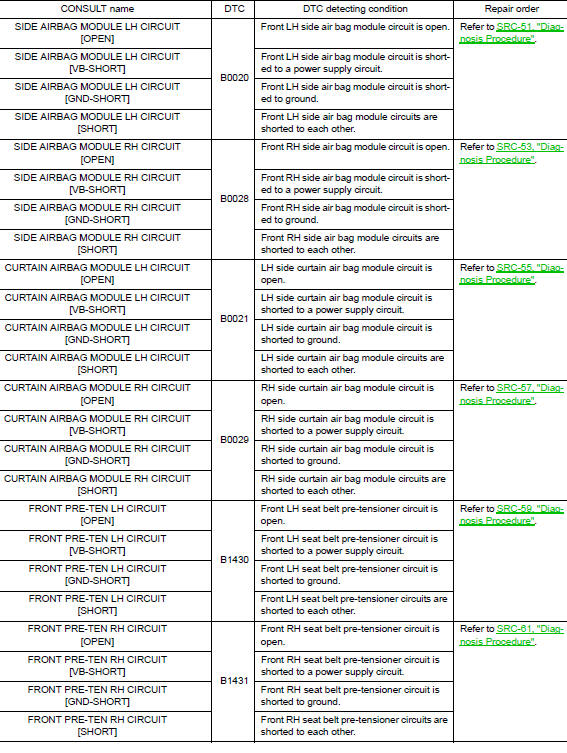

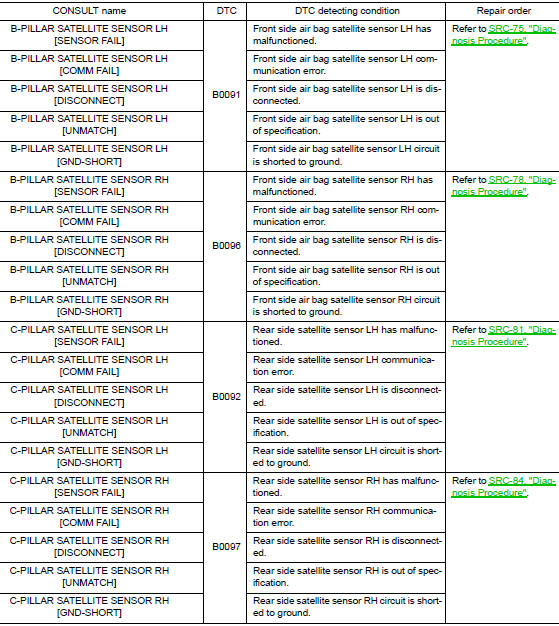

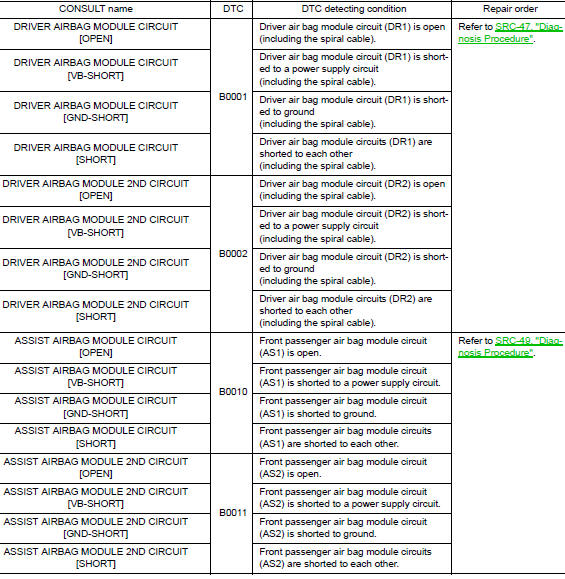

DIAGNOSTIC CODE CHART
NOTE: Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp or CONSULT each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.
Flash Code Index

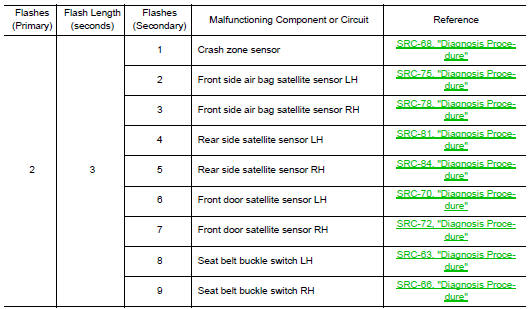

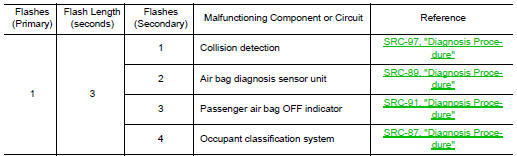

WARNING LAMP FLASH CODE CHART
- Put the vehicle in Diagnosis Mode. Refer to SRC-16, "On Board Diagnosis Function".
- All codes are proceded by a seven second "holding" flash.
- Identify how many primary flashes are displayed as well as the length of each primary flash.
- Refer to the tables and examples below to determine which SRS subsystem the code belongs to.
- Count the short secondary flashes that follow the primary flashes.
- Match the correct flashing pattern to the malfunctioning component and perform the Diagnosis Procedure.

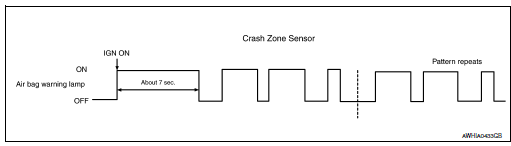

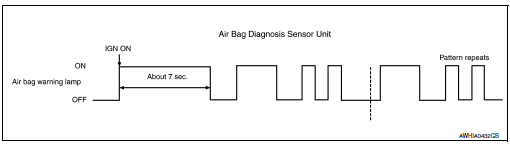

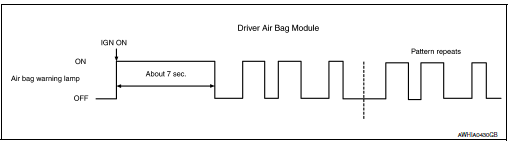

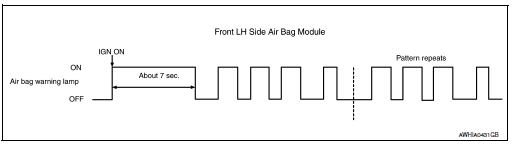

Refer to the illustrations below for an example of each flashing pattern.

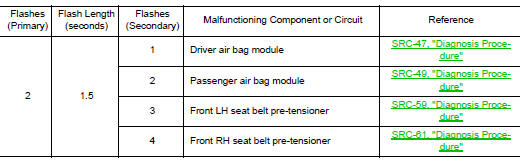

Front subsystem

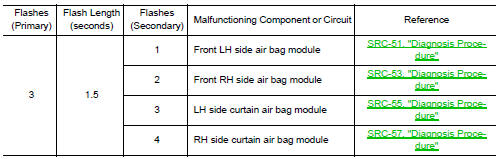

Side subsystem
Air bag subsystem
Sensor subsystem
Diagnosis system (air bag)
Description
CAUTION:
Never use electrical test equipment on any circuit related to
the SRS unless instructed in this Service
Manual. SRS wiring harnesses can be identified by yellow an ...
Wiring diagram
SRS AIR BAG SYSTEM
Wiring Diagram
...
