Nissan Rogue Owners Manual: Engine compartment check locations

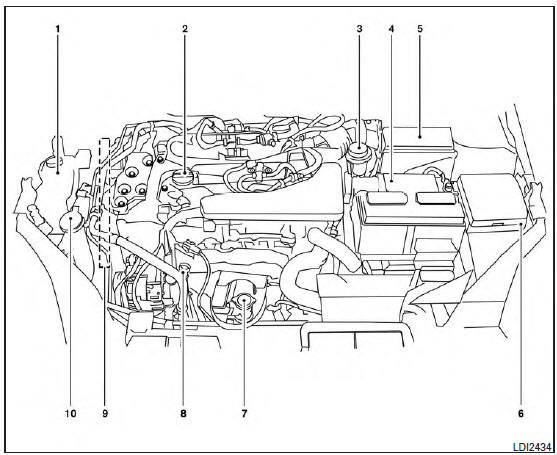

QR25DE engine
- Engine coolant reservoir
- Engine oil filler cap
- Brake fluid reservoir
- Battery
- Air cleaner
- Fuse/Fusible link box
- Radiator cap
- Engine oil dipstick
- Drive belt location
- Windshield-washer fluid reservoir
Engine cover removed for clarity.
See the page number indicated in parentheses for operating details.
