Nissan Rogue Service Manual: Engine control system
Symptom Table

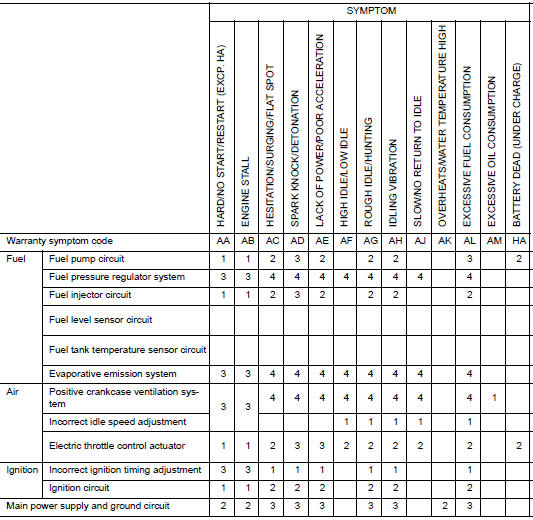

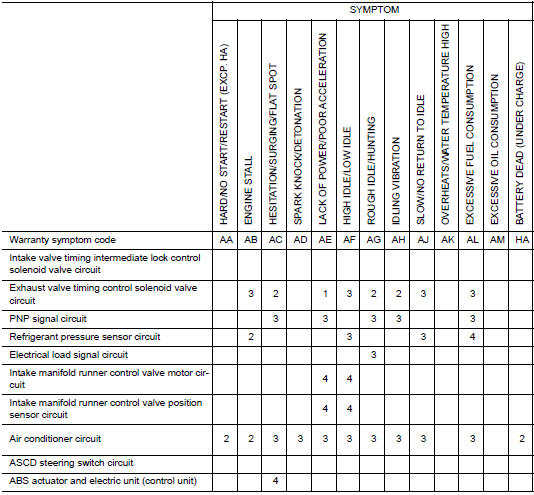

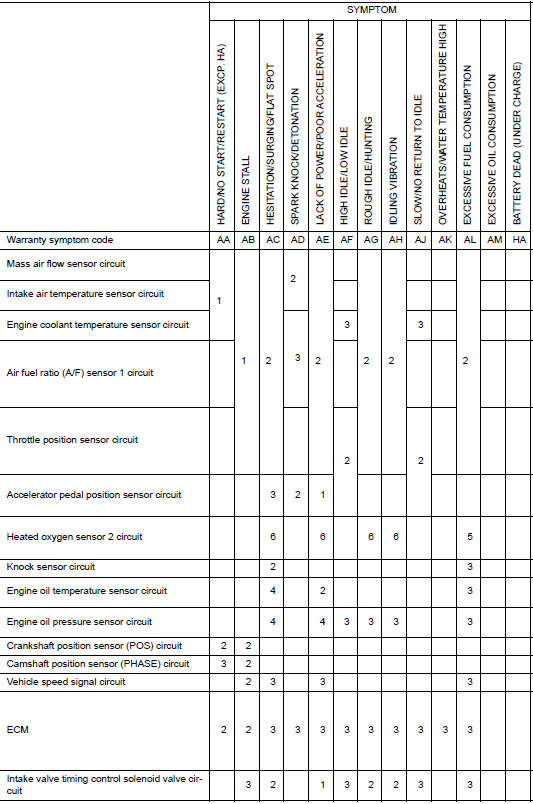

SYSTEM — BASIC ENGINE CONTROL SYSTEM
1 - 6: The numbers refer to the order of inspection.
(continued on next table)

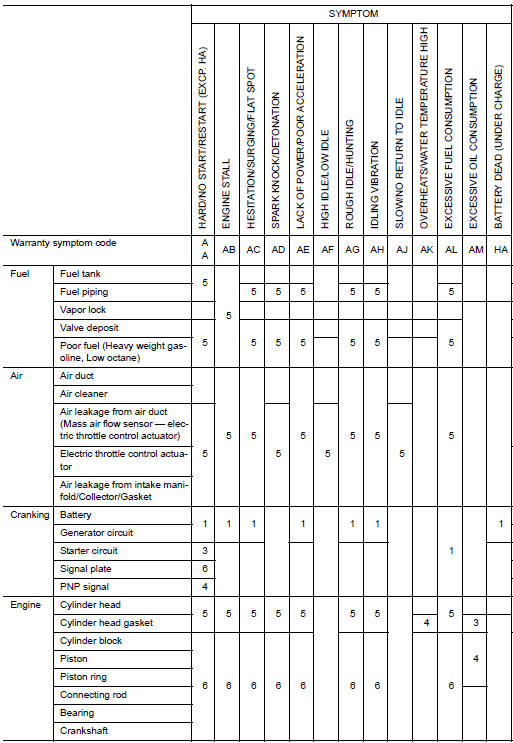

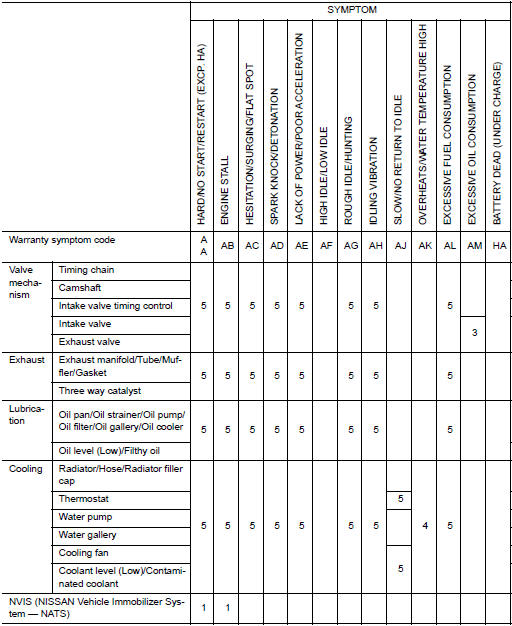

SYSTEM — ENGINE MECHANICAL & OTHER
1 - 6: The numbers refer to the order of inspection.
Information display is malfunctioning
Diagnosis Procedure
1.CHECK DTC WITH ECM
Check that DTC is not displayed.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Perform trouble diagnosis relevant to DTC indicate ...
