BRAKE PAD

BRAKE PAD : Inspection

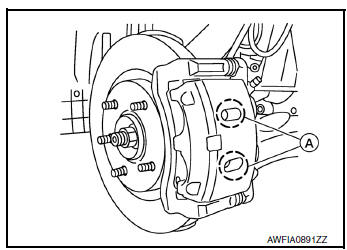

Check brake pad wear thickness from an inspection hole (A) on cylinder body. Check using a scale if necessary.

Wear thickness : Refer to BR-55, "Front Disc Brake".

DISC BRAKE ROTOR

DISC BRAKE ROTOR : Inspection

APPEARANCE

Check surface of disc brake rotor for uneven wear, cracks or damage. Replace if any abnormal conditions exist.

RUNOUT

1.  Check the wheel bearing axial end play before the inspection. Refer to FAX-7, "Inspection"(FWD) or FAX- 38, "Inspection"(AWD).
2.  Secure the disc brake rotor to the wheel hub and bearing with wheel nuts at two wheel nut locations.

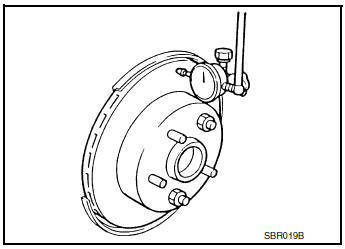

3.  Inspect the runout with a dial gauge, measured at 10 mm (0.39 in) inside the disc brake rotor edge.

Runout : Refer to BR-55, "Front Disc Brake".

4. Find the installation position with a minimum runout by shifting the disc brake rotor-to-wheel hub and bearing installation position by one hole at a time if the runout exceeds the limit value.
5. Refinish the disc brake rotor if the runout is outside the limit even after performing the above operation. When refinishing, use Tool.

Tool number : 38-PFM92

CAUTION:

•  Check in advance that the thickness of the disc brake rotor is wear thickness + 0.3 mm (0.012 in) or more.
•  If the thickness is less than wear thickness + 0.3 mm (0.012 in), replace the disc brake rotor.

Wear thickness : Refer to BR-55, "Front Disc Brake".

THICKNESS

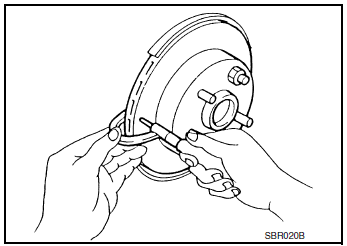

Check the thickness of the disc brake rotor using a micrometer.

Replace the disc brake rotor if the thickness is below the wear limit.

Wear thickness : Refer to BR-55, "Front Disc Brake".
Thickness variation : Refer to BR-55, "Front Disc Brake".
