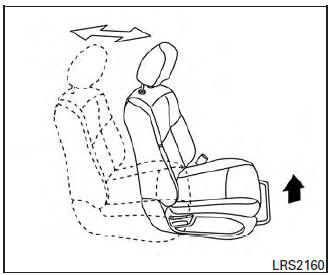

Forward and backward
Pull the center of the bar up and hold it while you slide the seat forward or backward to the desired position. Release the bar to lock the seat in position.

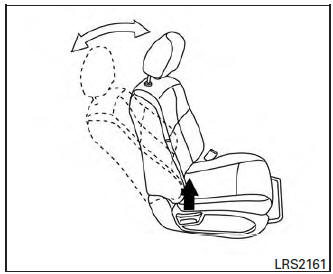

Reclining
To recline the seatback, pull the lever up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. For additional information, refer to “Precautions on seat belt usage” in this section. Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the shift lever is in the P (Park) position.

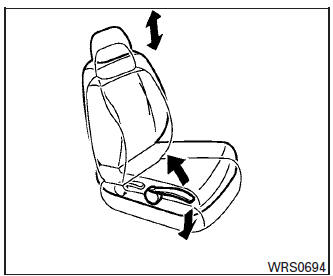

Seat lifter (driver’s seat)
Pull up or push down the adjusting lever to adjust the seat height until the desired position is achieved.
Oil pump
Exploded View
Front cover (Oil pump body united)
Outer rotor
Inner rotor
Oil pump cover
Regulator valve
Regulator valve spring
Regulator valve plug
CAUTION:
Before assembly, apply new engine oil to the parts as shown above.
Removal and Installation
REM ...
Compression pressure
CHECKING COMPRESSION PRESSURE
Warm up the engine to full operating temperature.
Release the fuel pressure. Refer to EC-144, "Work Procedure".
Remove the ignition coil and spark plug from each cylinder. Refer
to EM-36, "Removal and Installation"
and ...
C1609 vehicle speed signal
DTC Logic
DTC DETECTION LOGIC
DTC
Display item
Malfunction detected condition
Possible cause
C1609
CAN VHCL SPEED
Malfunction is detected in vehicle speed signal that
is output from ABS actuator and electric unit (control
unit) via CA ...
