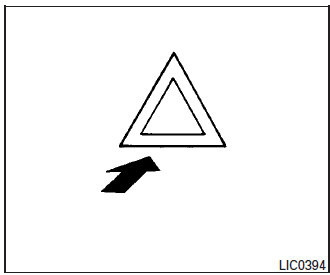

Nissan Rogue Owners Manual: Hazard warning flasher switch
Push the switch on to warn other drivers when you must stop or park under emergency conditions.
All turn signal lights flash.
WARNING
|
The flashers will operate with the ignition switch placed in any position.
Some jurisdictions may prohibit the use of the hazard warning flasher switch while driving.
Emergency engine shut off (Push-button ignition models only)
To shut off the engine in an emergency situation while driving, perform the following procedure:
- Rapidly push the push-button ignition switch three consecutive times in less than 1.5 seconds, or
- Push and hold the push-button ignition switch for more than 2 seconds.
Flat tire
...
