Nissan Rogue Owners Manual: How to use the touch-screen

Nissan Rogue Owners Manual / Monitor, climate, audio, phone and voice recognition systems / Control panel buttons — color screen with Navigation System (if so equipped) / How to use the touch-screen

CAUTION

The glass display screen may break if it is hit with a hard or sharp object. If the glass screen breaks, do not touch it.
Doing so could result in an injury.
To clean the display, never use a rough cloth, alcohol, benzine, thinner or any kind of solvent or paper towel with a chemical cleaning agent. They will scratch or deteriorate the panel.
Do not splash any liquid such as water or car fragrance on the display. Contact with liquid will cause the system to malfunction.

To help ensure safe driving, some functions cannot be operated while driving.

The on-screen functions that are not available while driving will be “grayed out” or muted.

Park the vehicle in a safe location and then operate the navigation system.

WARNING

ALWAYS give your full attention to driving.
Avoid using vehicle features that could distract you. If distracted, you could lose control of your vehicle and cause an accident.

Touch-screen operation

Menu Item		Result

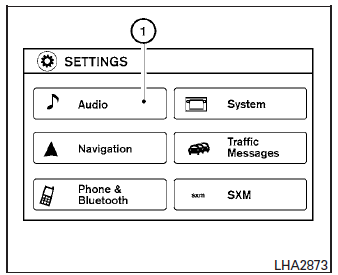

Selecting the item		Touch an item to select . To select the “Audio” key, touch the “Audio” key 1 on the screen. Press the BACK button to return to the previous screen.
Adjusting the item		Touch the “+” key or the “ ” key to adjust the settings of an item. Touch the up arrow to scroll up the page one item at a time, or touch the double up arrow to scroll up an entire page. Touch the down arrow to scroll down the page one item at a time, or touch the double down arrow to scroll down an entire page.
Inputting characters		Touch the letter or number key. There are some options available when inputting characters.
	123/ABC	Changes the available character set to numbers.
	Space	Inserts a space.
	Delete	Deletes the last inputted character with one touch. Touch and hold the “Delete” key to delete all of the characters.
	OK	Completes the character input.

Touch-screen maintenance

If you clean the display screen, use a dry, soft cloth. If additional cleaning is necessary, use a small amount of neutral detergent with a soft cloth. Never spray the screen with water or detergent.

Dampen the cloth first and then wipe the screen.

How to use the BACK button

Press the BACK button to return to the previous screen.

Control panel buttons — color screen with Navigation System (if so equipped)

Control panel buttons — color screen with Navigation System MAP button* Display screen button** button (brightness control) button BACK button ...

How to use the [ ] button

For additional information, refer to the separate Navigation System Owner’s Manual regarding the “SiriusXM® Travel Link”, and “Traffic” features. For additional information, refer ...
