Nissan Rogue Service Manual: Main power window and door lock/unlock switch
Reference Value

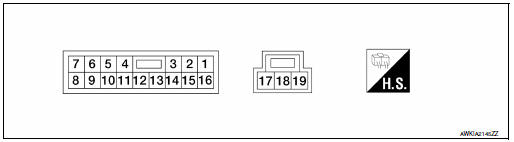

TERMINAL LAYOUT

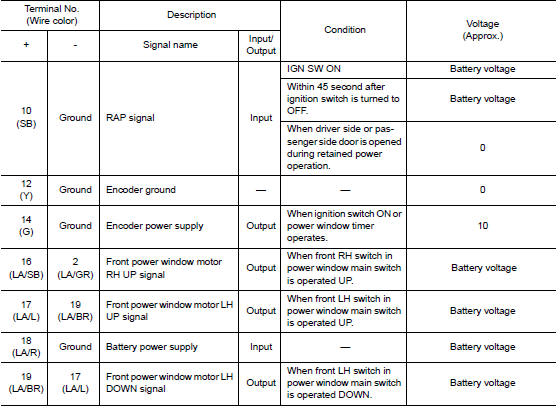

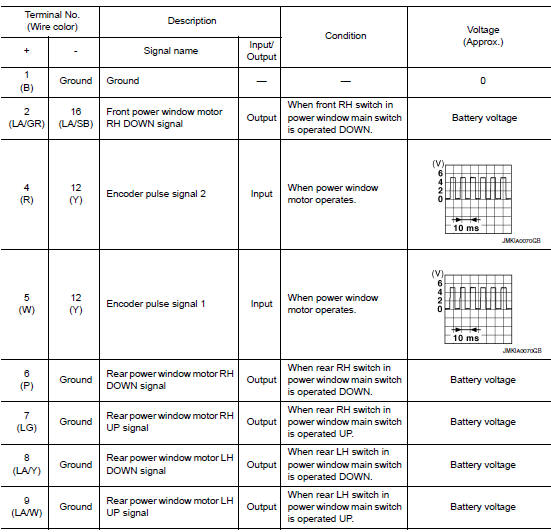

PHYSICAL VALUES
