Nissan Rogue Service Manual: Operation
Switch Name and Function

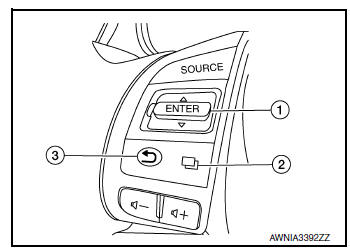

STEERING SWITCH
| No. | Switch name | Operation | Description |
| 1 | Enter/Up/Down switch | Press | The information display settings can be changed. |
| 2 | Display switch | ||
| 3 | Back switch |

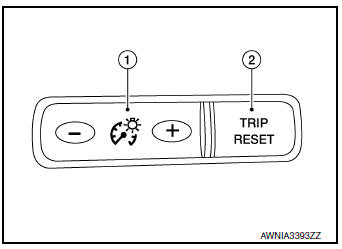

METER CONTROL SWITCH
| No. | Switch name | Operation | Description |
| 1 | Illumination control switch | Press | An illuminance level of the back light of the combination meter can be adjusted. |
| 2 | Illumination control switch | Press |
|
System
METER SYSTEM
METER SYSTEM : System Description
SYSTEM DIAGRAM
Combination Meter Input Signal (CAN Communication Signal)
DESCRIPTION
Combination Meter
The combination meter c ...
Diagnosis system (combination meter)
Description
COMBINATION METER SELF-DIAGNOSIS MODE
The following meter functions can be checked during Combination Meter
Self-Diagnosis Mode:
Pointer sweep of speedometer, tachometer and ...
