Nissan Rogue Service Manual: P2765 input speed sensor B

Nissan Rogue Service Manual / Transmission & driveline / Transaxle & Transmission / Dtc/circuit diagnosis / P2765 input speed sensor B

DTC Description

DTC DETECTION LOGIC

DTC

CONSULT screen terms (Trouble diagnosis content)

DTC detection condition

P2765

INPUT SPEED SENSOR B (Input/Turbine Speed Sensor B Circuit)

When 1 is satisfied and any of 2, 3 or 4 is satisfied and this state is maintained for 5 seconds:

When all of the following conditions are satisfied:

TCM power supply voltage: More than 11 V
After range change completion, it spends 2 seconds or more.

When all of the following conditions are satisfied and this state is maintained for 5 seconds:

Secondary pulley speed: Less than 149 rpm
Primary pulley speed: 1,000 rpm or more

When all of the following conditions are satisfied and this state is maintained for 0.5 seconds:

10-msec-ago secondary pulley speed: 1000 rpm or more
Now secondary pulley speed: 0 rpm

When all of the following conditions are satisfied and this state is maintained for 5 seconds:

Range: D or L
Engine speed: 450 rpm or more
Primary pulley speed: 300 rpm or more
Secondary pulley speed: 300 rpm or more
Input speed: 300 rpm or more
The difference between engine speed and primary pulley speed is 1,000 rpm or less
The difference between engine speed and input speed is 1,000 rpm or less
The difference between primary pulley speed and input speed is 1,000 rpm or less
Lock-up command is being given (except for slip lock-up)
DTC other than the applicable DTC is not detected.
When any of following items are satisfied:

Primary pulley speed/secondary pulley speed: More than 2.9
Primary pulley speed/secondary pulley speed: Less than 0.3

POSSIBLE CAUSE

Harness or connector (Output speed sensor circuit is open or shorted)
Output speed sensor

FAIL-SAFE

Start is slow
Acceleration is slow
Lock-up is not performed

DTC CONFIRMATION PROCEDURE

CAUTION: Be careful of the driving speed.

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.CHECK DTC DETECTION

Start the engine.
Drive the vehicle.
Maintain the following conditions for 10 seconds or more.

Selector lever : “D” position
Engine speed : 1,200 rpm or more
Vehicle speed : 55 km/h (34 MPH) or more

Stop the vehicle.
Check the first trip DTC.

Is “P2765” detected? YES >> Go to TM-168, "Diagnosis Procedure".

NO-1 >> To check malfunction symptom before repair: Refer to GI-41, "Intermittent Incident".

NO-2 >> Confirmation after repair: INSPECTION END

Diagnosis Procedure

1.CHECK OUTPUT SPEED SENSOR POWER CIRCUIT

Turn ignition switch OFF.
Disconnect output speed sensor connector.
Turn ignition switch ON.
Check voltage between output speed sensor harness connector terminal and ground.

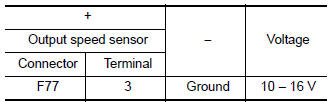

Check output speed sensor power circuit

Is the inspection result normal? YES >> GO TO 2.

NO >> GO TO 6.

2.CHECK OUTPUT SPEED SENSOR GROUND CIRCUIT

Check continuity between output speed sensor harness connector terminal and ground.

Check output speed sensor ground circuit

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace malfunctioning parts.

3.CHECK CIRCUIT BETWEEN OUTPUT SPEED SENSOR AND TCM (PART 1)

Turn ignition switch OFF.
Disconnect TCM connector.
Check continuity between output speed sensor harness connector terminal and TCM harness connector terminal.

Check circuit between output speed sensor and TCM (part 1)

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace malfunctioning parts.

4.CHECK CIRCUIT BETWEEN OUTPUT SPEED SENSOR AND TCM (PART 2)

Check continuity between output speed sensor harness connector terminal and ground.

Check circuit between output speed sensor and TCM (part 2)

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace malfunctioning parts.

5.CHECK TCM INPUT SIGNALS

Connect all of disconnected connectors.
Lift the vehicle.
Start the engine.
Check frequency of output speed sensor.

Check TCM input signals

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace output speed sensor. Refer to TM-209, "Removal and Installation".

6.CHECK CIRCUIT BETWEEN IPDM E/R AND OUTPUT SPEED SENSOR

Turn ignition switch OFF.
Disconnect IPDM E/R connector.
Check continuity between IPDM E/R harness connector terminal and output speed sensor harness connector terminals.

Check circuit between IPDM E/R and output speed sensor

Is the check result normal? YES >> GO TO 7.

NO >> Repair or replace malfunctioning parts.

7.DETECT MALFUNCTIONING ITEMS

Check the following items:

Open circuit or short circuit in harness between ignition switch and IPDM E/R. Refer to PG-15, "Wiring Diagram — Ignition Power Supply —".
Short circuit in harness between IPDM E/R harness connector terminal 70 and output speed sensor harness connector terminal 3.
10A fuse (No.46, located in the IPDM E/R). Refer to PG-68, "IPDM E/R Terminal Arrangement".
IPDM E/R

Is the check result normal? YES >> INSPECTION END

NO >> Repair or replace malfunctioning parts.
