Nissan Rogue Service Manual: Parking brake control

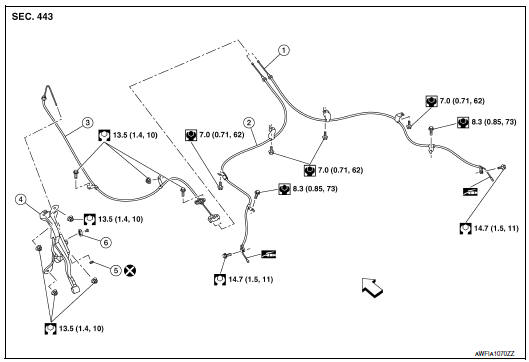

Exploded View
- Parking brake rear cable (RH)
- Parking brake rear cable (LH)
- Parking brake front cable
- Parking brake control
- Adjusting nut
- Parking brake switch
Removal and Installation
REMOVAL
- Remove instrument lower panel LH. Refer to IP-22, "Removal and Installation".
- Remove the knee protector. Refer to IP-14, "Exploded View".
- Disconnect the harness connector from the parking brake switch.
- Remove the parking brake switch.
- Remove the parking brake control nuts and remove the parking brake control.
- Remove adjusting nut from parking brake control.
- Disconnect the parking brake front cable from the parking brake control.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: Do not reuse the adjusting nut.
Parking brake front cable
Removal and Installation
REMOVAL
Remove the instrument lower panel LH. Refer to IP-22, "Removal and
Installation".
Remove driver seat (LH). Refer to SE-32, "DRIVER ...
