Nissan Rogue Owners Manual: Power outlets

Nissan Rogue Owners Manual / Instruments and controls / Power outlets

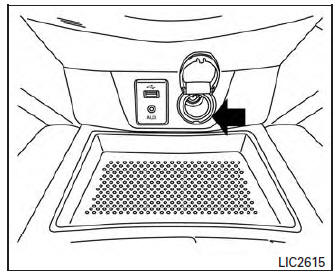

Instrument Panel

12V OUTLETS

The power outlets are for powering electrical accessories such as cellular telephones. They are rated at 12 volt, 120W (10A) maximum.

The front and center console power outlets are powered only when the ignition switch is in the ACC (if so equipped) or ON position.

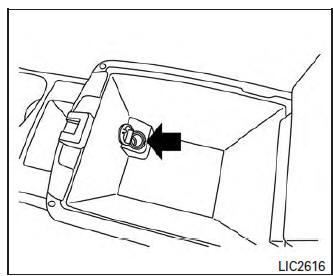

Center Console

CAUTION

The outlet and plug may be hot during or immediately after use.
Only certain power outlets are designed for use with a cigarette lighter unit. Do not use any other power outlet for an accessory lighter. See your NISSAN dealer for additional information.
Do not use with accessories that exceed a 12 volt, 120W (10A) power draw.
Do not use double adapters or more than one electrical accessory.
Use power outlets with the engine running to avoid discharging the vehicle battery.
Avoid using power outlets when the air conditioner, headlights or rear window defroster is on.
Before inserting or disconnecting a plug, be sure the electrical accessory being used is turned OFF.
Push the plug in as far as it will go. If good contact is not made, the plug may overheat or the internal temperature fuse may open.
When not in use, be sure to close the cap. Do not allow water or any other liquid to contact the outlet.

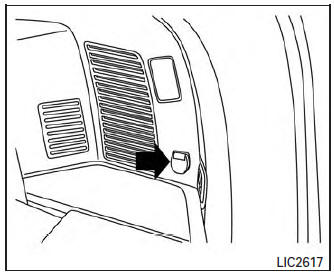

Cargo Area
