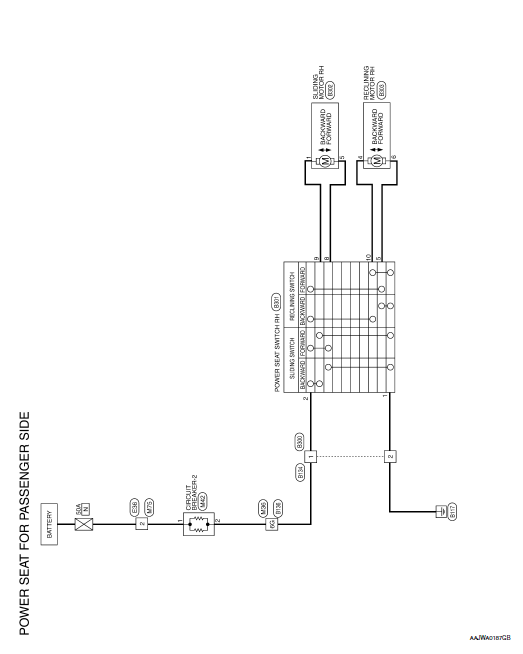

Nissan Rogue Service Manual: Power seat for passenger side
Wiring Diagram
Power seat for driver side
Wiring Diagram
...
Lumbar support system
Wiring Diagram
...
Other materials:
Engine oil and oil filter recommendations
Selecting the correct oil
It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. Refer to “Recommended
fluids/lubricants and capacities” in this
section. NISSAN recommends the use of an
energy conserving oil in ...
Preparation
Special Service Tools
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name
Description
KV10111100
(J-37228)
Seal cutter
Removing oil pan (lower) etc.
Commercial Service Tools
T ...
P0967 pressure control solenoid B
DTC Description
DTC DETECTION LOGIC
DTC
CONSULT screen terms
(Trouble diagnosis content)
DTC detection condition
P0967
PC SOLENOID B
(Pressure Control Solenoid B Control Circuit
High)
When all of the following conditions are satisfied and this state is
main ...
