Description

Power is supplied to the main power window and door lock/unlock with BCM control.

Component Function Check

1. CHECK POWER WINDOW RELAY POWER SUPPLY CIRCUIT

Check that an operation noise of power window relay [located behind the A/C switch assembly (automatic A/ C) or Front air control (manual A/C)] can be heard when turning the main power window and door lock/unlock switch ON.

Is the inspection result normal? YES >> Power window relay power supply circuit is OK.

NO >> Refer to PWC-48, "Diagnosis Procedure".

Diagnosis Procedure

Regarding Wiring Diagram information, refer to PWC-17, "Wiring Diagram".

1. CHECK POWER WINDOW RELAY CONTROL CIRCUIT

Disconnect BCM connector.
Turn ignition switch ON.
Check voltage between BCM connector and ground.

Check power window relay control circuit

Is the inspection result normal? YES >> Replace the BCM. Refer to BCS-75, "Removal and Installation" (with Intelligent Key system) or BCS-135, "Removal and Installation" (without Intelligent Key system).

NO >> GO TO 2.

2. CHECK HARNESS CONTINUITY

Turn ignition switch OFF.
Disconnect BCM and power window relay.
Check continuity between BCM connector and power window relay connector.

Check harness continuity

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness.

3. CHECK POWER WINDOW RELAY

Check power window relay.

Refer to PWC-49, "Component Inspection".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-41, "Intermittent Incident".

NO >> Replace power window relay.

Component Inspection

1. CHECK POWER WINDOW RELAY

Check power window relay.

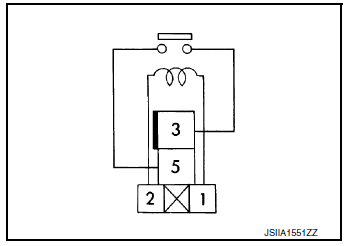

Check power window relay

Is the inspection result normal? YES >> Inspection End.

NO >> Replace power window relay.
