Nissan Rogue Service Manual: Removal and installation

Nissan Rogue Service Manual / Ventilation, heater & air conditioner / Heater & Air Conditioning Control System / Automatic air conditioning / Removal and installation

A/C SWITCH ASSEMBLY

Removal and Installation

REMOVAL

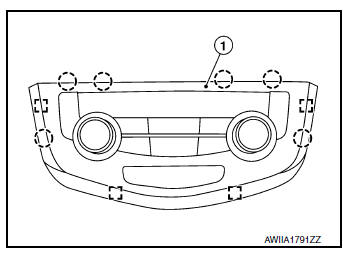

  1.  Release the A/C switch assembly clips and pawls using a suitable tool.

: Metal clip
: Pawl

  1.  Disconnect the harness connector from the A/C switch assembly (1) and remove.

Removal

INSTALLATION

Installation is in the reverse order of removal.

A/C AUTO AMP.

Removal and Installation

REMOVAL

  1.  Remove heating and cooling unit assembly. Refer to HA-42, "HEATING AND COOLING UNIT ASSEMBLY : Removal and Installation".
  2.  Disconnect the harness connectors from the A/C auto amp.
  3.  Release pawls and remove A/C auto amp.

INSTALLATION

Installation is in the reverse order of removal.

AMBIENT SENSOR

Removal and Installation

REMOVAL

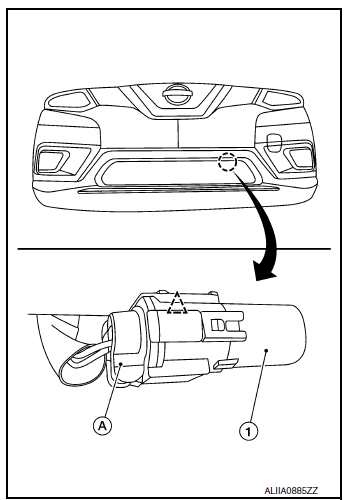

  1.  Disconnect the harness connector (A) from the ambient sensor (1).
  2.  Release the clip and remove ambient sensor.

: Clip

Removal

INSTALLATION

Installation is in the reverse order of removal.

IN-VEHICLE SENSOR

Removal and Installation

REMOVAL

  1.  Remove cluster lid C. Refer to IP-21, "Removal and Installation".

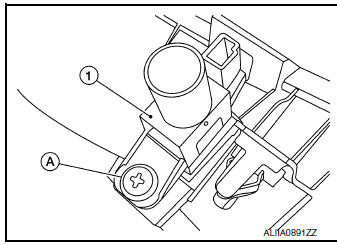

  2.  Remove screw (A) and in-vehicle sensor (1).

Removal

INSTALLATION

Installation is in the reverse order of removal

SUNLOAD SENSOR

Removal and Installation

REMOVAL

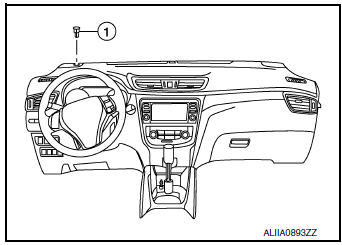

  1.  Release the sunload sensor pawls using a suitable tool.
  2.  Disconnect the harness connector from the sunload sensor (1) and remove.

Removal

INSTALLATION

Installation is in the reverse order of removal.

INTAKE SENSOR

Exploded View

Exploded View

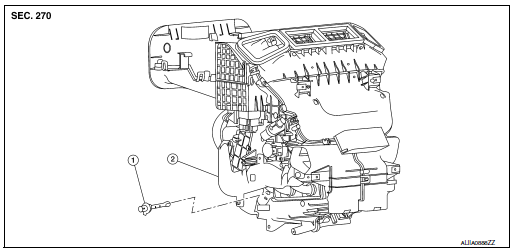

  1. Intake sensor
  2. Heating and cooling unit assembly

Removal and Installation

REMOVAL

  1.  Remove front foot duct (LH). Refer to VTL-10, "FRONT FOOT DUCT : Removal and Installation".
  2.  Disconnect the harness connector and remove intake sensor

INSTALLATION

Installation is in the reverse order of removal.

REFRIGERANT PRESSURE SENSOR

Removal and Installation

REMOVAL

  1.  Discharge the refrigerant. Refer to HA-23, "Recycle Refrigerant".
  2.  Remove front bumper fascia. Refer to EXT-17, "Removal and Installation".
  3.  Disconnect the harness connector from the refrigerant pressure sensor.

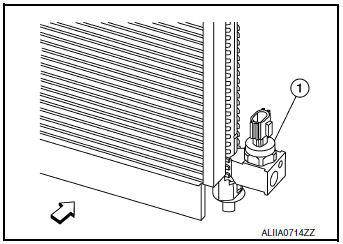

  4.  Remove the refrigerant pressure sensor (1) from the condenser.

: Front

CAUTION: Cap or wrap the opening of the refrigerant pressure sensor with suitable material such as vinyl tape to avoid the entry of air.

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

DOOR MOTOR

Component Parts Location

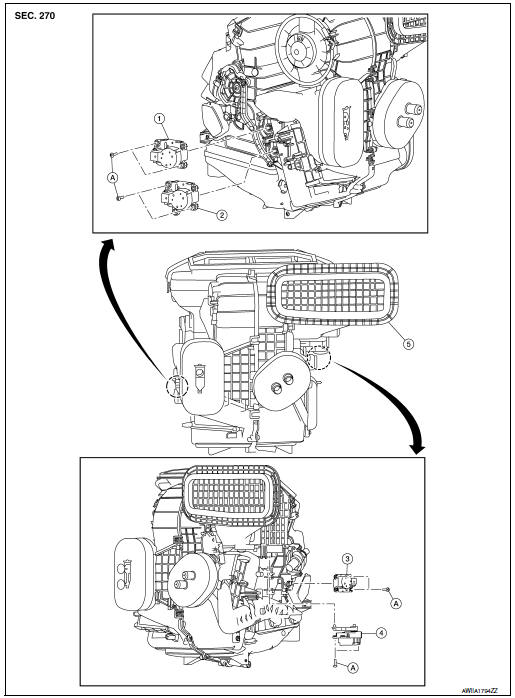

Component Parts Location

  1. Mode door motor
  2. Air mix door motor (RH)
  3. Air mix door motor (LH)
  4.  Intake door motor
  5. Heating and cooling unit assembly
  1.  Screw

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

REMOVAL

  1.  Remove front foot duct (LH). Refer to VTL-10, "FRONT FOOT DUCT : Removal and Installation".
  2.  Disconnect the harness connector from the intake door motor.

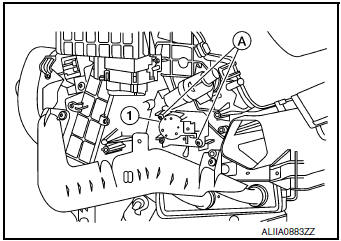

  3.  Remove screws (A) and intake door motor (1).

Removal

INSTALLATION

Installation is in the reverse order of removal.

MODE DOOR MOTOR

MODE DOOR MOTOR : Removal and Installation

REMOVAL

  1.  Remove front foot duct (RH). Refer to VTL-10, "FRONT FOOT DUCT : Removal and Installation".
  2.  Disconnect the harness connector from the mode door motor.

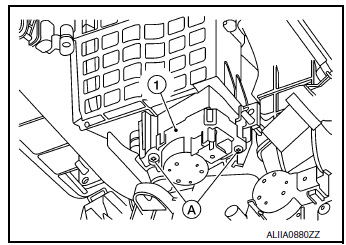

  3.  Remove screws (A) and mode door motor (1).

    (2): Air mix doot motor (RH)

Removal

INSTALLATION

Installation is in the reverse order of removal.

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation

REMOVAL

Air Mix Door Motor (LH)

  1.  Remove front foot duct (LH). Refer to VTL-10, "FRONT FOOT DUCT : Removal and Installation".
  2.  Disconnect the harness connector from the air mix door motor (LH).

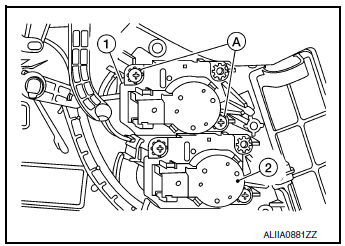

  3. Remove screws (A) and air mix door motor (LH) (1).

Air Mix Door Motor (LH)

Air Mix Door Motor (RH)

  1.  Remove front foot duct (RH). Refer to VTL-10, "FRONT FOOT DUCT : Removal and Installation".
  2.  Disconnect the harness connector from the air mix door motor (RH).

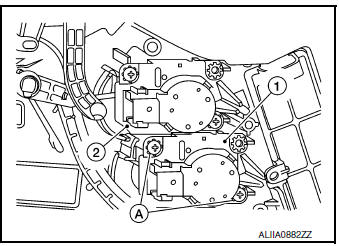

  3.  Remove screws (A) and air mix door motor (RH) (1).

    (2): Mode door motor

Air Mix Door Motor (RH)

INSTALLATION

Installation is in the reverse order of removal.

VARIABLE BLOWER CONTROL

Removal and Installation

REMOVAL

  1.  Remove center console side finisher (LH). Refer to IP-18, "Exploded View".

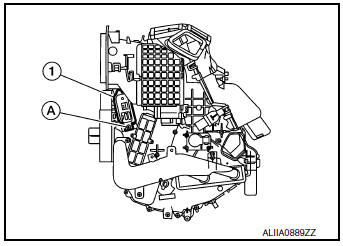

  2.  Disconnect the harness connector from the variable blower control.
  3.  Remove screw (A) and variable blower control (1).

Removal

INSTALLATION

Installation is in the reverse order of removal.

Symptom diagnosis
HEATER AND AIR CONDITIONING SYSTEM CONTROL SYMPTOMS Diagnosis Chart By Symptom NOTE: Perform the self-diagnoses with CONSULT before performing the symptom diagnosis. If DTC is detected, perform ...

Manual air conditioning
...
