Nissan Rogue Service Manual: Removal and installation
NATS ANTENNA AMP.
Removal and Installation
REMOVAL
- Remove the steering column covers. Refer to IP-17, "Removal and Installation".
- Disconnect the harness connector from the NATS antenna amp.

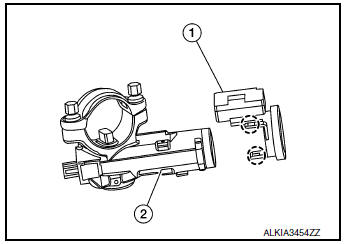

- Release pawls and remove NATS antenna amp. (1) from the
ignition switch (2).
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
- If NATS antenna amp. is not installed correctly, NVIS (NATS) system will not operate properly and "SELFDIAG RESULTS" on CONSULT screen will show "LOCK MODE" or "CHAIN OF IMMU-KEY".
- Initialization is not necessary when only the NATS antenna amp. is replaced with a new one.
Symptom diagnosis
NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS
Symptom Table
NOTE:
Before performing the diagnosis in the following table, check
“SEC-150, "Work Flow"”.
Check tha ...
