AV CONTROL UNIT

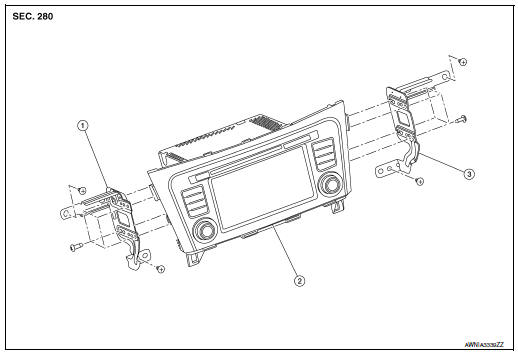

Exploded View
Removal and Installation
REMOVAL
CAUTION:
Refer to AV-134, "CONFIGURATION (AV CONTROL UNIT) : Configuration List".
NOTE: After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.
Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.
Refer to HAC-102, "Removal and Installation" (AUTOMATIC AIR CONDITIONING) or HAC-181, "Removal and Installation" (MANUAL AIR CONDITIONING).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: When replacing AV control unit, perform “WRITE CONFIGURATION”. Refer to AV-134, "CONFIGURATION (AV CONTROL UNIT) : Configuration List".
STEERING SWITCH

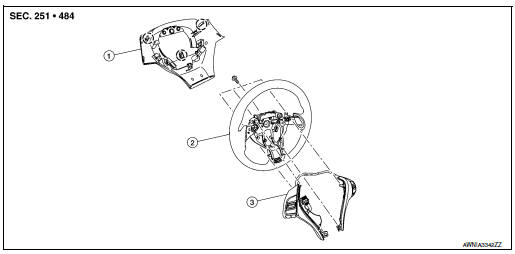

Exploded View

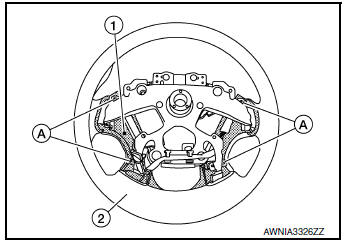

Pawl
Removal and Installation
REMOVAL
NOTE: The steering switches are serviced as an assembly.
INSTALLATION
Installation is in the reverse order of removal.
FRONT TWEETER
Removal and Installation
REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
FRONT DOOR SPEAKER

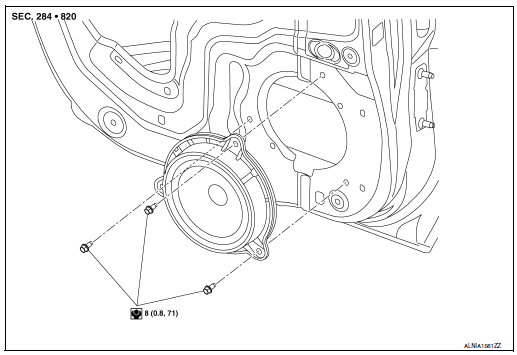

Exploded View
Removal and Installation
REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
REAR DOOR SPEAKER

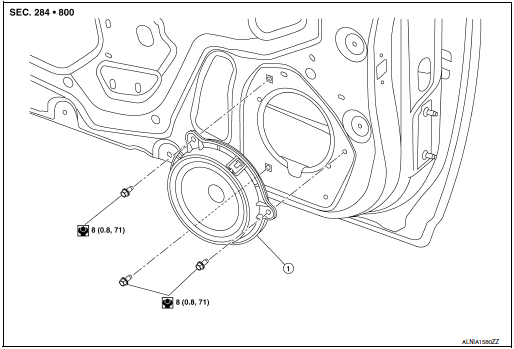

Exploded View
Removal and Installation
REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
USB INTERFACE AND AUX IN JACK
Removal and Installation

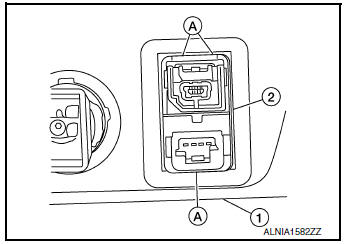

REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
MICROPHONE
Removal and Installation

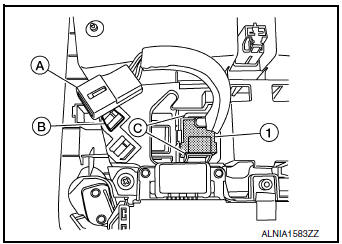

REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
AROUND VIEW MONITOR CONTROL UNIT

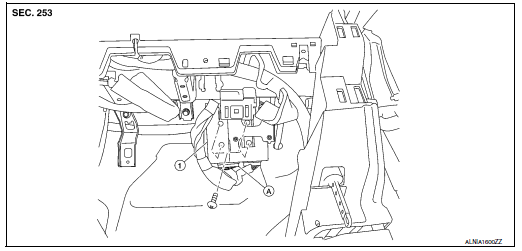

Exploded View
Removal and Installation
REMOVAL
CAUTION: Before replacing around view monitor control unit, save or print current vehicle specification with CONSULT configuration before replacement. Refer to AV-132, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT : Work Procedure".
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Refer to AV-132, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT : Work Procedure".
NOTE: Perform camera image calibration. Refer to AV-136, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure".
FRONT CAMERA

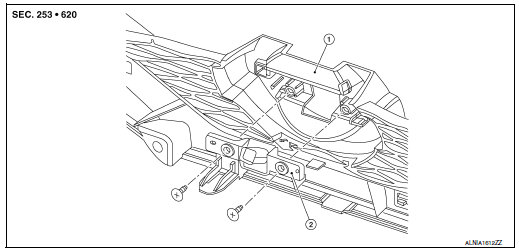

Exploded View
Removal and Installation
REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
NOTE: Perform camera image calibration. Refer to AV-136, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure".
SIDE CAMERA
Removal and Installation
REMOVAL

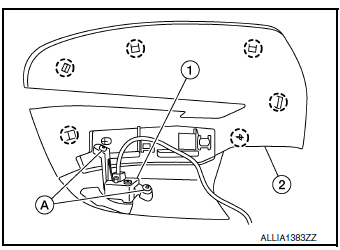

: Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: Perform camera image calibration (if equipped with around view camera). Refer to AV-135, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Description".
REAR VIEW CAMERA
Removal and Installation
REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
GPS ANTENNA
Removal and Installation
REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
AUDIO ANTENNA
Removal and Installation

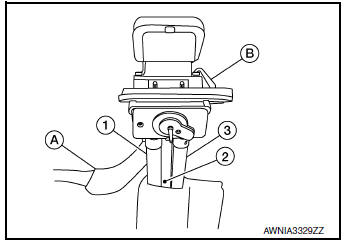

REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
Audio antenna nut : 6.5 N·m (0.66 kg-m, 58 in-lb)
CAUTION: If the audio antenna nut is not properly tightened, lower sensitivity of the antenna may be experienced.
If the nut is over tightened, this will deform the roof panel.
ANTENNA FEEDER
Feeder Layout

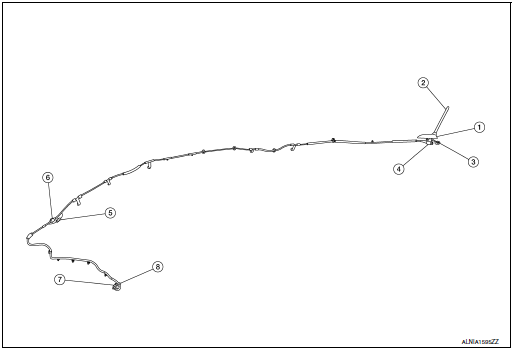

ANTENNA FEEDER LAYOUT
P0451 EVAP control system pressure sensor
DTC Description
DTC DETECTION LOGIC
DTC No.
CONSULT screen terms
(Trouble diagnosis content)
DTC detecting condition
P0451
EVAP SYS PRES SEN
(Evaporative emission system pressure
sensor/switch range/performance)
ECM detects a sloshing signal from the EVAP contr ...
