Nissan Rogue Service Manual: Removal and installation

AV CONTROL UNIT

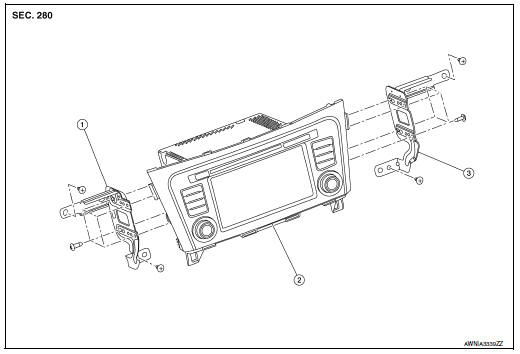

Exploded View

1. AV control unit bracket (LH)
2. AV control unit
3. AV control unit bracket (RH)

Removal and Installation

REMOVAL

CAUTION:

•  Before disconnecting the AV control unit and battery terminals, turn the ignition switch OFF and wait at least 30 seconds.
•  Before replacing AV control unit, perform “READ CONFIGURATION” to save current vehicle specification.

Refer to AV-134, "CONFIGURATION (AV CONTROL UNIT) : Configuration List".

NOTE: After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

1.  Disconnect the negative battery terminal. Refer to PG-75, "Removal and Installation (Battery)".
2.  Remove A/C switch. Refer to HAC-102, "Removal and Installation".
3.  Remove instrument finisher B. Refer to IP-16, "INSTRUMENT FINISHER B : Removal and Installation".
4.  Remove instrument finisher E. Refer to IP-16, "INSTRUMENT FINISHER E : Removal and Installation".
5.  Remove the AV control unit screws, then pull out the AV control unit.
6.  Disconnect the harness connectors from the AV control unit and remove.
7.  Remove the AV control unit bracket (LH/RH) screws and the AV control unit brackets (LH/RH) (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:When replacing AV control unit, perform “WRITE CONFIGURATION”. Refer to AV-134, "CONFIGURATION (AV CONTROL UNIT) : Configuration List".

STEERING SWITCH

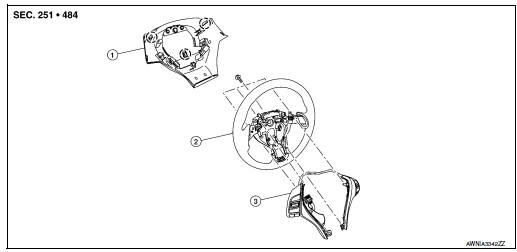

Exploded View

1. Steering wheel rear finisher
2. Steering wheel
3. Steering switches

Pawl

Removal and Installation

REMOVAL

NOTE: The steering switches are serviced as an assembly.

1.  Remove steering wheel. Refer to ST-11, "Removal and Installation".
2.  Release pawls on the steering wheel rear finisher and remove.

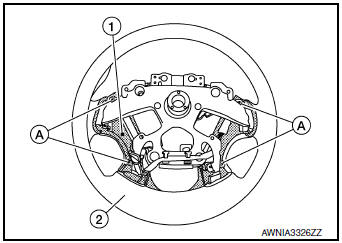

3.  Remove screws (A) and steering switches (1) from steering wheel (2).

INSTALLATION

Installation is in the reverse order of removal.

BOSE SPEAKER AMP

Removal and Installation

REMOVAL

1.  Slide the passenger seat to the full forward position.

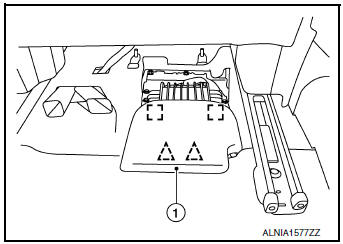

2.  Release the clips using a suitable tool and remove Bose speaker amp cover (1).

   : Metal clip
   : Clip

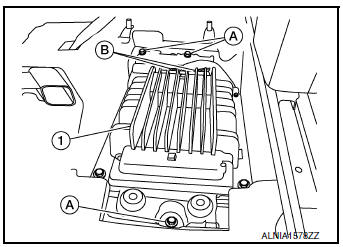

3. Remove Bose speaker amp bolts (A).
4.  Disconnect the harness connectors (B) from the Bose speaker amp (1).

5. Remove the Bose speaker amp. and bracket as an assembly.
6. Remove the bolts and the Bose speaker amp. from the Bose speaker amp. bracket (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

FRONT TWEETER

Removal and Installation

REMOVAL

1.  Remove defroster grille. Refer to VTL-12, "DEFROSTER GRILLE : Removal and Installation".
2.  Remove bolts and pull out the front tweeter.
3.  Disconnect the harness connector from the front tweeter and remove.

INSTALLATION

Installation is in the reverse order of removal.

FRONT DOOR SPEAKER

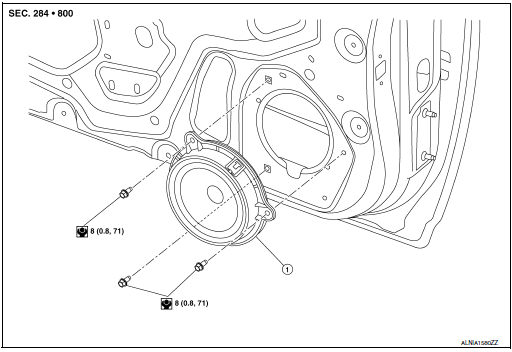

Exploded View

1. Front door speaker

Removal and Installation

REMOVAL

1.  Remove front door finisher. Refer to INT-15, "Removal and Installation".
2.  Remove front door speaker bolts, then pull out front door speaker.
3.  Disconnect the harness connector from front door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

CENTER SPEAKER

Removal and Installation

REMOVAL

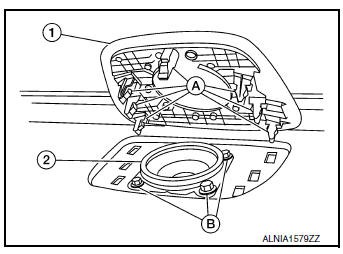

1.  Release the metal clips (A) using a suitable tool and remove center speaker grille (1).
2.  Remove the center speaker bolts (B).
3.  Pull out the center speaker (2).

4. Disconnect the harness connector from the center speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

REAR DOOR SPEAKER

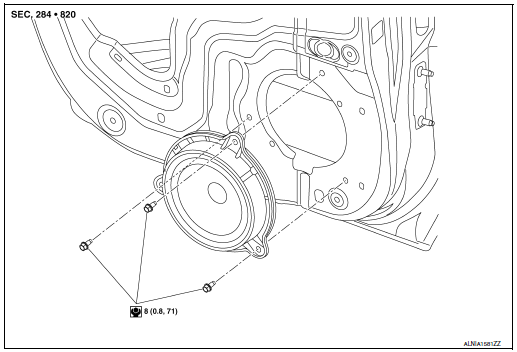

Exploded View

1. Rear door speaker

Removal and Installation

REMOVAL

1.  Remove rear door finisher. Refer to INT-18, "Removal and Installation".
2.  Remove rear door speaker bolts, then pull out rear door speaker.
3.  Disconnect the harness connector from the rear door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

SUBWOOFER

Removal and Installation

REMOVAL

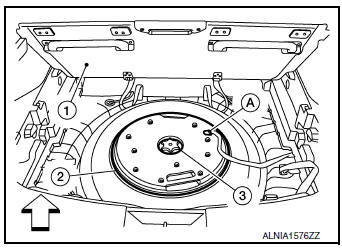

1.  Open the rear luggage floor finisher (1).
2.  Remove the spare tire clamp (3) by rotating counterclockwise.
3.  Disconnect the harness connector (A) from the subwoofer (2) and remove.

   : Front

INSTALLATION

Installation is in the reverse order of removal.

USB INTERFACE AND AUX IN JACK

Removal and Installation

REMOVAL

1.  Remove cluster lid C. Refer to IP-21, "Removal and Installation".

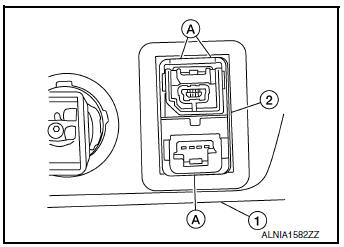

2.  Release the pawls (A) on the back of USB interface and AUX in jack (2), then remove from the front of cluster lid C (1).

INSTALLATION

Installation is in the reverse order of removal.

MICROPHONE

Removal and Installation

REMOVAL

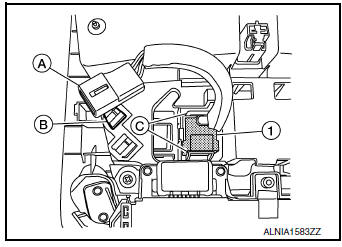

1.  Remove the map lamp assembly. Refer to INL-55, "Removal and Installation".
2.  Release harness connector (A) by sliding rearward to remove from the pawl (B).
3.  Release pawls (C) and remove the microphone (1) from the front room/map lamp assembly.

INSTALLATION

Installation is in the reverse order of removal.

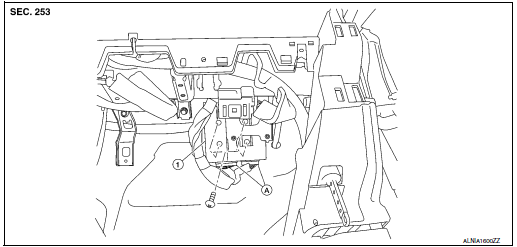

AROUND VIEW MONITOR CONTROL UNIT

Exploded View

1. Around view monitor control unit
1. Harness connector

Removal and Installation

REMOVAL

CAUTION: Before replacing around view monitor control unit, save or print current vehicle specification with CONSULT configuration before replacement. Refer to AV-288, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT : Work Procedure".

1.  Remove glove box assembly. Refer to IP-23, "Removal and Installation".
2.  Remove around view monitor control unit screws.
3.  Disconnect the harness connector from the around view monitor control unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

•  Replace the around view monitor control unit if it has been dropped or sustained an impact.
•  When replacing around view monitor control unit, you must perform "After Replace ECU" with CONSULT.

  Refer to AV-288, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT : Work Procedure".

NOTE: Perform camera image calibration. Refer to AV-292, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure".

FRONT CAMERA

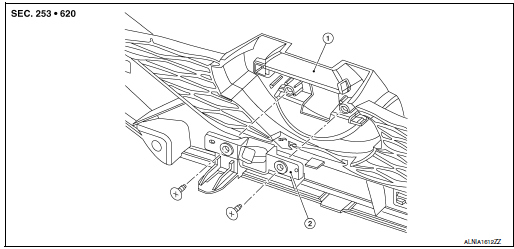

Exploded View

1. Front grille
2. Front camera

Removal and Installation

REMOVAL

1.  Remove the front grille. Refer to EXT-23, "Removal and Installation".
2.  Remove screws and front camera.

INSTALLATION

Installation is in the reverse order of removal.

NOTE: Perform camera image calibration. Refer to AV-292, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure".

SIDE CAMERA

Removal and Installation

REMOVAL

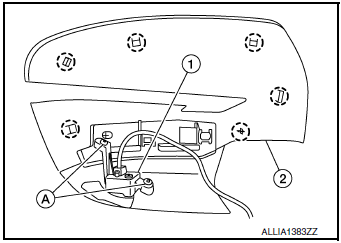

1.  Remove door mirror rear finisher (2). Refer to MIR-25, "Removal and Installation".
2.  Remove screws (A) and side camera (1).

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Perform camera image calibration (if equipped with around view camera). Refer to AV-135, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Description".

REAR VIEW CAMERA

Removal and Installation

REMOVAL

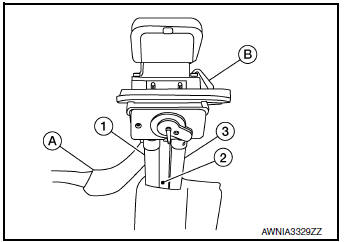

1.  Remove the back door outer finisher. Refer to EXT-50, "Removal and Installation".
2.  Disconnect washer tubes (1,3) and air tube (2) (if equipped).
3.  Release pawl (B), disconnect harness connector (A) from rear view camera and remove.

INSTALLATION

Installation is in the reverse order of removal.

GPS ANTENNA

Removal and Installation

REMOVAL

1.  Remove instrument panel. Refer to IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and Installation".
2.  Remove screw and the GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.

AUDIO ANTENNA

Removal and Installation

REMOVAL

1.  Remove the luggage side upper finisher (RH). Refer to INT-36, "LUGGAGE SIDE UPPER FINISHER : Removal and Installation".
2.  Partially lower headlining (rear). Refer to INT-30, "Removal and Installation".
3.  Disconnect harness connectors from antenna feeder.
4.  Remove nut from audio antenna and remove.

INSTALLATION

Installation is in the reverse order of removal.

Audio antenna nut : 6.5 N·m (0.66 kg-m, 58 in-lb)

CAUTION: If the audio antenna nut is not properly tightened, lower sensitivity of the antenna may be experienced.

If the nut is over tightened, this will deform the roof panel.

ANTENNA FEEDER

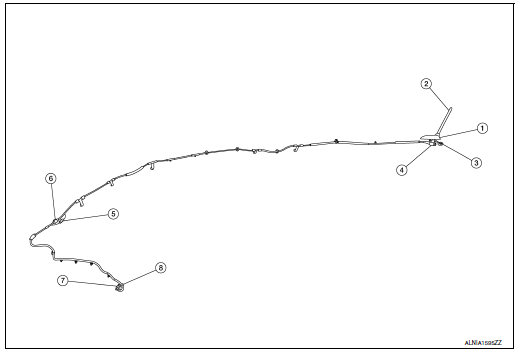

Feeder Layout

ANTENNA FEEDER LAYOUT

1. Antenna base (antenna amp. and satellite antenna)
2. Rod Antenna
3. M503
4. M502
5. M130, M501
6. M129, M500
7. M142
8. M139
