Nissan Rogue Service Manual: Removal and installation

FRONT CAMERA

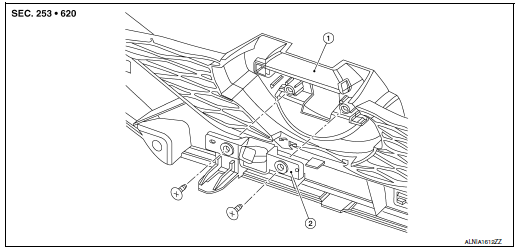

Exploded View

1. Front grille
2.  Front camera

Removal and Installation

REMOVAL

1.  Remove the front grille. Refer to EXT-23, "Removal and Installation".
2.  Remove screws and front camera.

INSTALLATION

Installation is in the reverse order of removal.

NOTE: Perform camera image calibration. Refer to AV-292, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure".

DISTANCE SENSOR

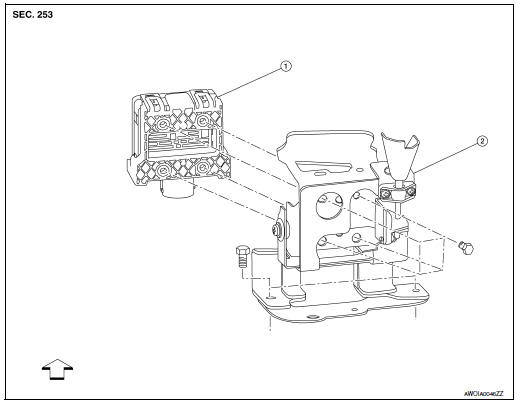

Exploded View

1. Distance sensor
2.  Bracket

Front

Removal and Installation

REMOVAL

1.  Remove the front bumper fascia. Refer to EXT-20, "Removal and Installation".
2.  Remove distance sensor bolts and the distance sensor.

   CAUTION: Do not drop or shock distance sensor.

3.  Remove bolts and distance sensor bracket (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Perform additional service when replacing distance sensor. Refer to DAS-69, "Work Procedure".

SIDE CAMERA

Removal and Installation

REMOVAL

1.  Remove door mirror rear finisher (2). Refer to MIR-25, "Removal and Installation".
2.  Remove screws (A) and side camera (1).

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Perform camera image calibration (if equipped with around view camera). Refer to AV-135, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Description".

BSW INDICATOR

Removal and Installation

REMOVAL

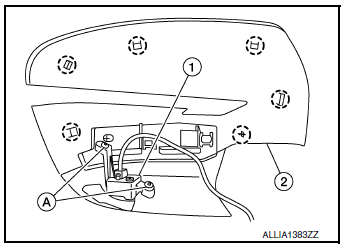

1.  Remove the front door finisher. Refer to INT-15, "Removal and Installation".
2.  Release the door mirror corner finisher using a suitable tool. Refer to MIR-22, "Exploded View".

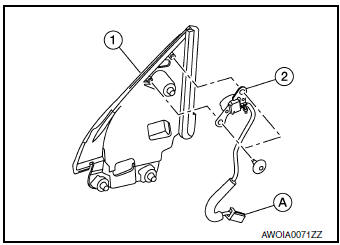

3.  Disconnect the harness connector (A), release the harness clip and remove the door mirror corner finisher (1).
4.  Remove screws and blind spot warning indicator (2).

INSTALLATION

Installation is in the reverse order of removal.

AROUND VIEW MONITOR CONTROL UNIT

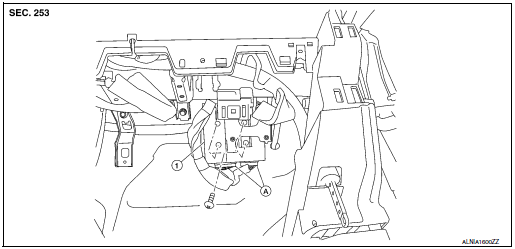

Exploded View

1. Around view monitor control unit
1. Harness connector

Removal and Installation

REMOVAL

CAUTION: Before replacing around view monitor control unit, save or print current vehicle specification with CONSULT configuration before replacement. Refer to AV-288, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT : Work Procedure".

1.  Remove glove box assembly. Refer to IP-23, "Removal and Installation".
2.  Remove around view monitor control unit screws.
3.  Disconnect the harness connector from the around view monitor control unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

•  Replace the around view monitor control unit if it has been dropped or sustained an impact.
•  When replacing around view monitor control unit, you must perform "After Replace ECU" with CONSULT.

  Refer to AV-288, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT : Work Procedure".

NOTE: Perform camera image calibration. Refer to AV-292, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure".

WARNING SYSTEMS SWITCH

Removal and Installation

REMOVAL

1.  Remove the instrument lower panel LH. Refer to IP-14, "Exploded View".

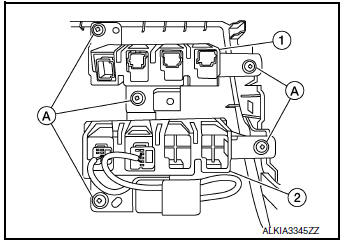

2.  Remove the screws (A) that retain the upper (1) and lower (2) switch carriers.

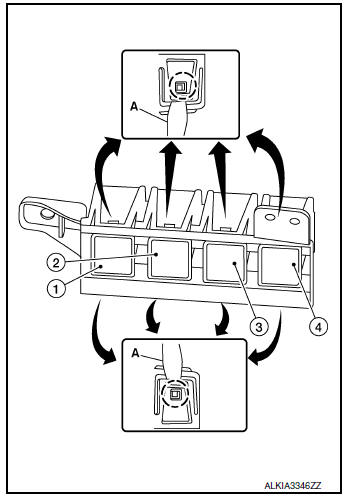

3. Release pawls using a suitable tool (A), then remove the warning systems switch (2) from the lower switch carrier.

   (1): Blank
   (3): AWD LOCK switch (if equipped)
   (4): Hill descent control switch (if equipped)

INSTALLATION

Installation is in the reverse order of removal.

WARNING SYSTEMS BUZZER

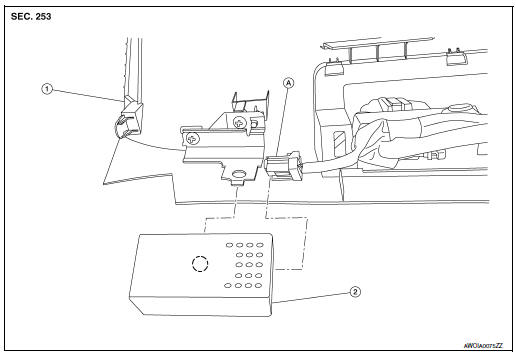

Exploded View

1. Instrument lower panel LH
2.  Warning systems buzzer
1. Harness connector

Pawl

Removal and Installation

REMOVAL

1.  Remove instrument lower panel LH. Refer to IP-14, "Exploded View".
2.  Remove warning systems buzzer from bracket on the back of the instrument lower panel LH.

INSTALLATION

Installation is in the reverse order of removal.

REAR VIEW CAMERA

Removal and Installation

REMOVAL

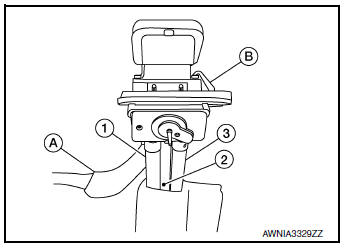

1.  Remove the back door outer finisher. Refer to EXT-50, "Removal and Installation".
2.  Disconnect washer tubes (1,3) and air tube (2) (if equipped).
3.  Release pawl (B), disconnect harness connector (A) from rear view camera and remove.

INSTALLATION

Installation is in the reverse order of removal.

REAR VIEW CAMERA WASHER MOTOR

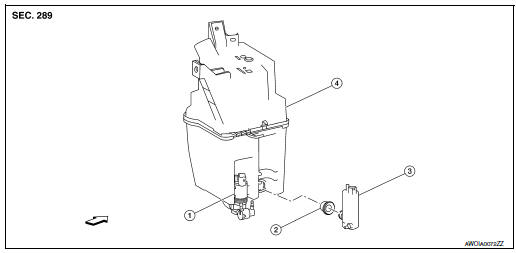

Exploded View

1. Front and rear wiper motor
2. Seal
3. Rear view camera washer motor
4.  Washer tank

Front

Removal and Installation

REMOVAL

1.  Drain the washer fluid.
2. Remove the front under cover. Refer to EXT-16, "Exploded View".
3.  Remove engine side cover. Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
4.  Disconnect the harness connector from the rear view camera washer motor.
5.  Disconnect the washer tube from the rear view camera washer motor.
6.  Remove the rear view camera washer motor.
7.  Remove the washer tank seal (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Add water to the top of washer tank inlet after installing. Check that no leaks exist.

REAR VIEW CAMERA AIR PUMP MOTOR

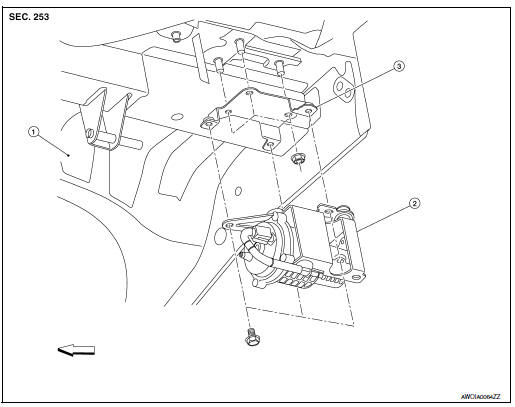

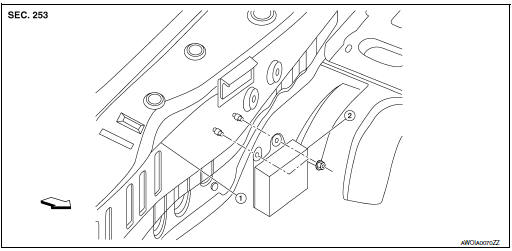

Exploded View

1. Rear floor
2. Rear view camera air pump motor
3. Bracket

Front

Removal and Installation

REMOVAL

1.  Remove the rear bumper fascia under cover (LH). Refer to EXT-20, "Exploded View".
2.  Disconnect the air tubes from the rear view camera air pump motor.
3.  Disconnect the harness connector from the rear view camera air pump motor.
4.  Remove bolts and rear view camera air pump motor.
5.  Remove nuts and remove bracket (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

REAR VIEW CAMERA WASHER CONTROL UNIT

Exploded View

1. Body panel
2. Rear view camera washer control unit

Removal and Installation

REMOVAL

1.  Remove the luggage rear plate. Refer to INT-37, "LUGGAGE REAR PLATE : Removal and Installation".
2.  Disconnect the harness connector from the rear view camera washer control unit.
3.  Remove the rear view camera washer control unit nuts.
4.  Remove the rear view camera washer control unit.

INSTALLATION

Installation is in the reverse order of removal.
