Nissan Rogue Service Manual: Removal and installation
ECM
Removal and Installation

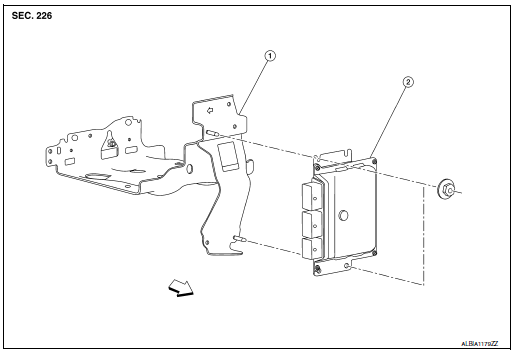

EXPLODED VIEW
1 ECM bracket
2 ECM
: Vehicle front
CAUTION: Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to EC-136, "Work Procedure".
REMOVAL
- Disconnect the battery negative terminal.
- Remove the resonator. Refer to EM-24, "Exploded View".
- Disconnect ECM harness connectors.
- Remove ECM mounting nuts, and then remove ECM.
INSTALLATION
Install in the reverse order of removal.
Periodic maintenance
IDLE SPEED
Inspection
1.CHECK IDLE SPEED
With CONSULT
Check idle speed in “DATA MONITOR” mode of “ENGINE” using CONSULT.
With GST
Check idle speed with Service $01 of GST.
>> IN ...
Service data and specifications (sds)
Idle Speed
Condition
Specification
No load* (in P or N position)
650 ± 50 rpm
*: Under the following conditions
A/C switch: OFF
Electric load: OFF (Ligh ...
