STARTER MOTOR

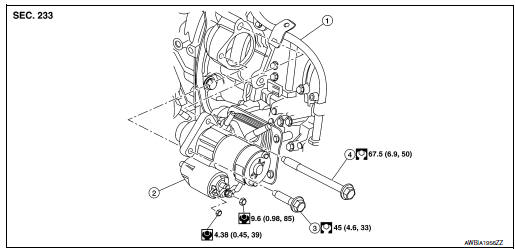

Exploded View
REMOVAL
- Transaxle assembly
- Starter motor
- Lower bolt
- Upper bolt
Removal and Installation
REMOVAL
- Remove battery tray. Refer to PG-77, "Removal and Installation".
- Remove terminal B nut and terminal B harness.
- Remove terminal S nut and terminal S harness.
- Remove starter motor mounting bolts.
- Remove starter motor upward from the vehicle.
INSTALLATION
Installation is in the reverse order of removal. Perform the following: Learning".
- Perform the "Throttle Valve Closed Position Learning" and "Accelerator Pedal Released Position Learning" when harness connector of ECM is disconnected. Refer to EC-140, "Work Procedure" and EC-139, "Work Procedure".
Service data and specifications (SDS)

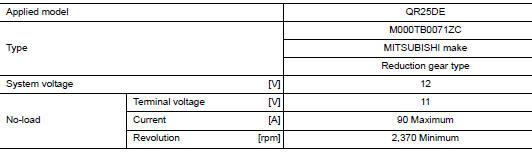

Starter Motor
S connector circuit
Description
The starter motor magnetic switch is supplied with power when the ignition
switch is turned to the START position
while the selector lever is in the P (Park) or N (Neutral) position.
...
