Nissan Rogue Service Manual: Removal and installation

AWD CONTROL UNIT

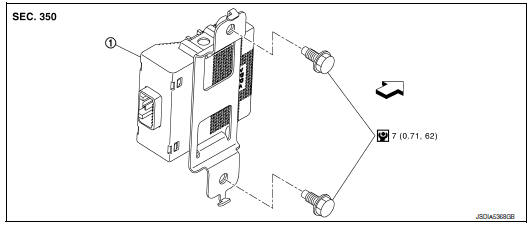

Exploded View

1 AWD control unit
: Vehicle front
: N·m (kg-m, in-lb)

Removal and Installation

REMOVAL

1.  Remove luggage side lower finisher (LH). Refer to INT-33, "Exploded View".
2.  Disconnect AWD control unit harness connector.
3.  Remove AWD control unit bolts ( ).

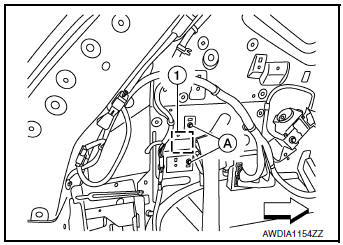

NOTE: AWD control unit is located on the back side of body panel.

: Front

4. Remove AWD control unit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

•  Do not drop or shock AWD control unit.
•  When replacing AWD control unit, perform writing unit characteristic. Refer to DLN-35, "Work Procedure".

AWD LOCK SWITCH

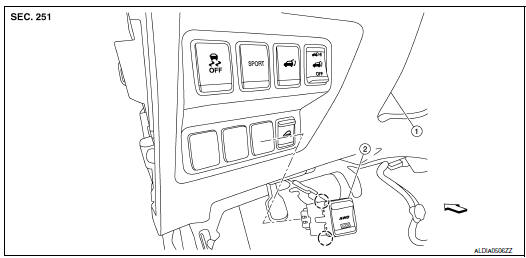

Exploded View

1. Instrument lower panel LH
2.  AWD lock switch

Front
Pawl

Removal and Installation

REMOVAL

1.  Remove instrument lower panel LH. Refer to IP-22, "Removal and Installation".
2.  Disconnect AWD lock switch harness connector (A).
3.  Remove AWD lock switch from lower switch bracket (2).

: Pawls

INSTALLATION

Install in the reverse order of removal.

TRANSFER COVER OIL SEAL

Removal and Installation

NOTE:

•  Replacement on vehicle may cause damage to transfer cover, and may cause a transfer oil leak.
•  If transfer cover oil seal requires replacement, remove the transfer assembly from the vehicle before replacing transfer cover oil seal. Refer to DLN-73, "Disassembly".
