Nissan Rogue Service Manual: Replacement operations

Description

• This section is prepared for technicians who have attained a high level of skill and experience in repairing collision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body repair techniques should not attempt to repair collision-damaged vehicles by using this section.
•  Technicians are also encouraged to read Body Repair Manual (Fundamentals) in order to ensure that the original functions and quality of the vehicle can be maintained. The Body Repair Manual (Fundamentals) contains additional information, including cautions and warning, that are not including in this manual. Technicians should refer to both manuals to ensure proper repairs.
•  Please note that these information are prepared for worldwide usage, and as such, certain procedures might not apply in some regions or countries.

The symbols used in this section for welding operations are shown below.

Symbol marks	Description
	2-spot welds
	3-spot welds
	MIG plug weld
	MIG seam weld / Point weld

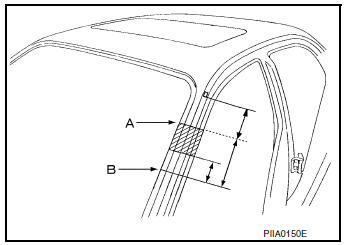

• Front pillar butt joint can be determined anywhere within shaded area as shown in the figure. The best location for the butt joint is at position A due to the construction of the vehicle. Refer to the front pillar section.

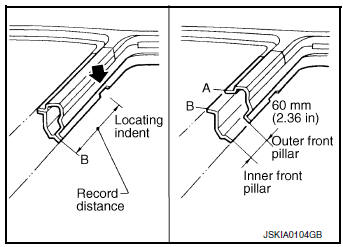

• Determine cutting position and record distance from the locating indent. Use this distance when cutting the service part. Cut outer front pillar over 60 mm (2.36 in) above inner front pillar cut position.

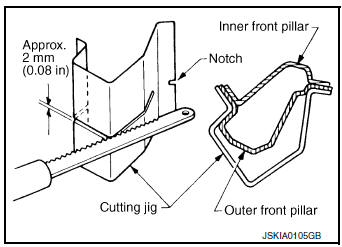

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will permit service part to be accurately cut at joint position.

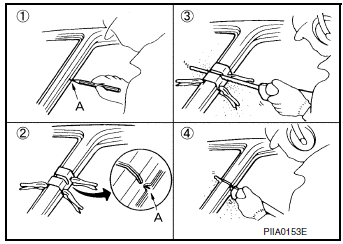

• An example of cutting operation using a cutting jig is as follows.

1.  Mark cutting lines.

1.  Cut position of outer pillar
2.  Cut position of inner pillar

2.  Align cutting line with notch on jig. Clamp jig to pillar.
3.  Cut outer pillar along groove of jig (at position A).
4.  Remove jig and cut remaining portions.
5.  Cut inner pillar at position B in same manner.

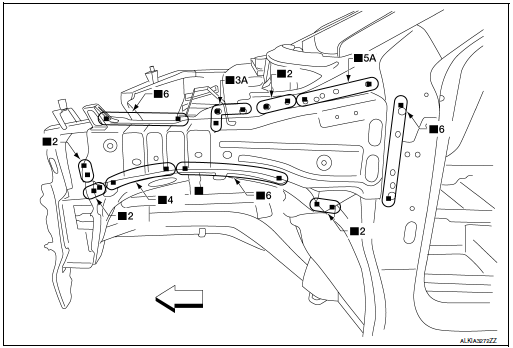

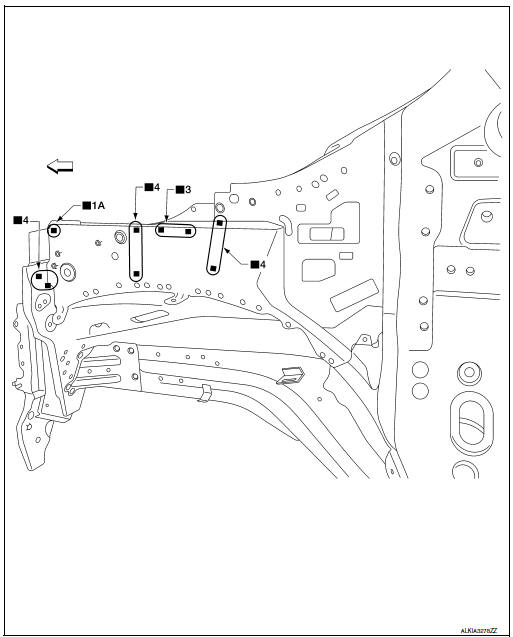

Hoodledge

Replacement parts

•  Upper hoodledge (LH)

Front

Hoodledge Reinforcement

Replacement parts

•  LH Hoodledge reinforcement

Front

Radiator Core Support Side

Replacement parts

•  Radiator core support side

Front

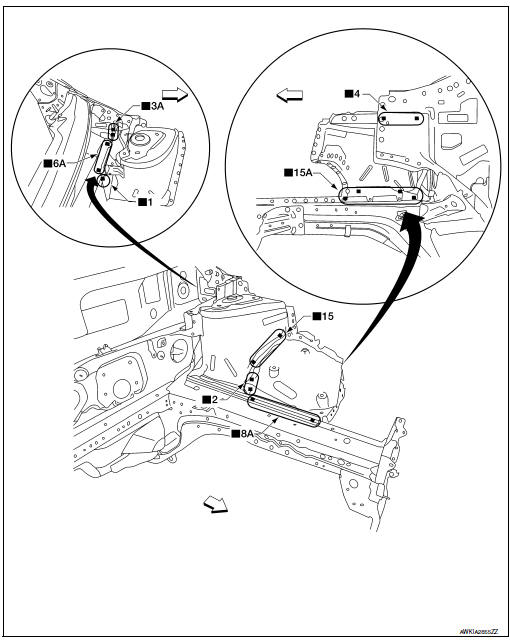

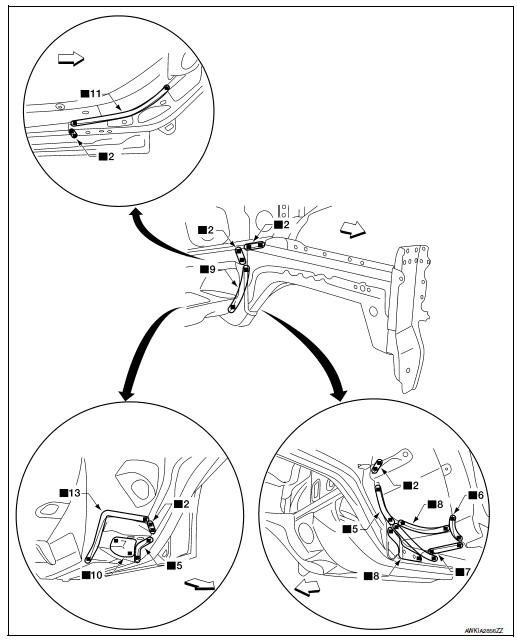

Strut Housing

Replacement parts

•  Strut housing
• Strut housing extension

Front

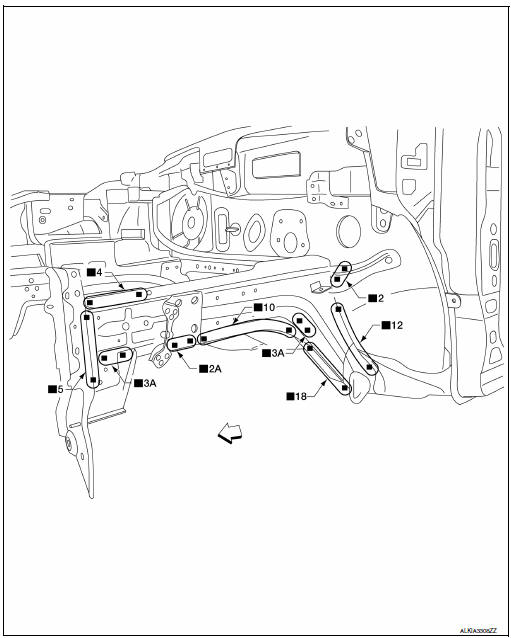

Front Side Member Outer

Work after hoodledge has been removed.

Replacement parts

• Front side member closing plate assembly (LH)

Front

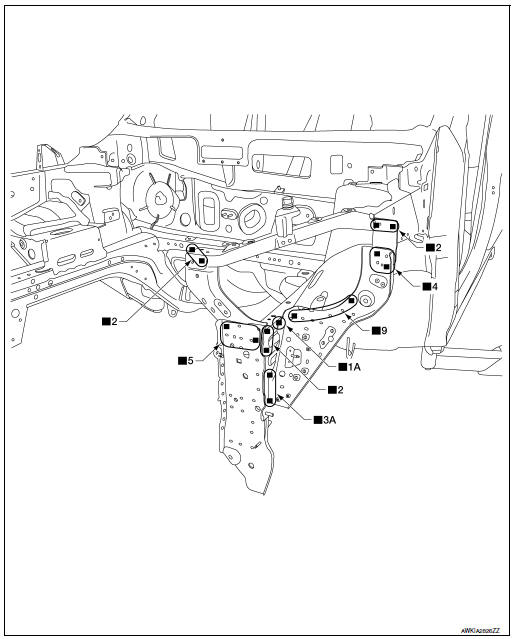

Front Side Member Inner

Work after hoodledge and strut housing has been removed.

Replacement parts

• Front side member inner assembly (LH)

Front

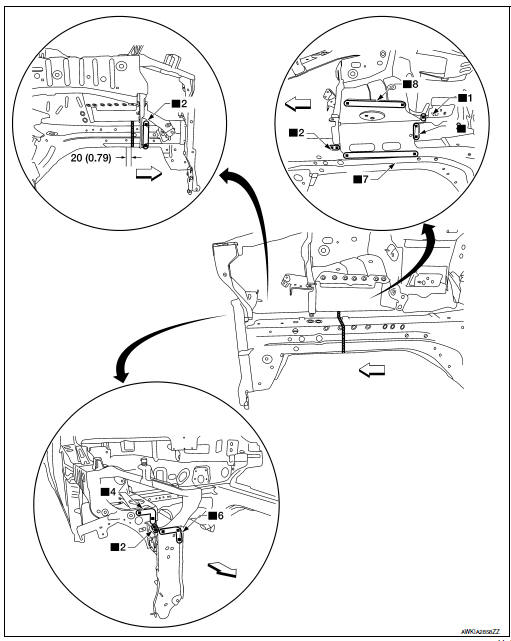

Front Side Member (Partial Replacement)

Replacement parts

• Front side member (RH)
• Front side member closing plate assembly (RH)

Front

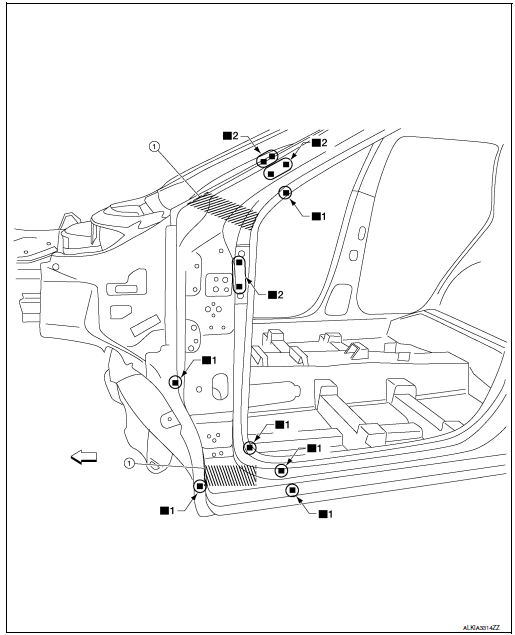

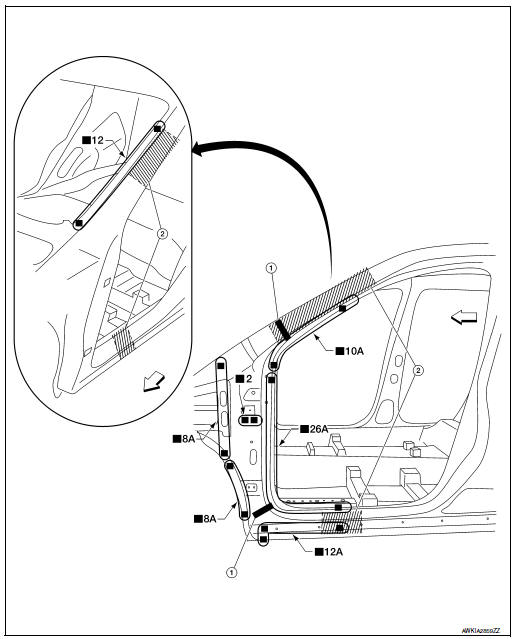

Front Pillar

Work after hoodledge reinforcement has been removed.

Replacement parts

• Front side body (LH)

1. Urethane foam
2. Sectioning location

Front

View B: Before installing outer front side body

Replacement parts

• Inner front pillar reinforcement

1. Urethane foam

Front

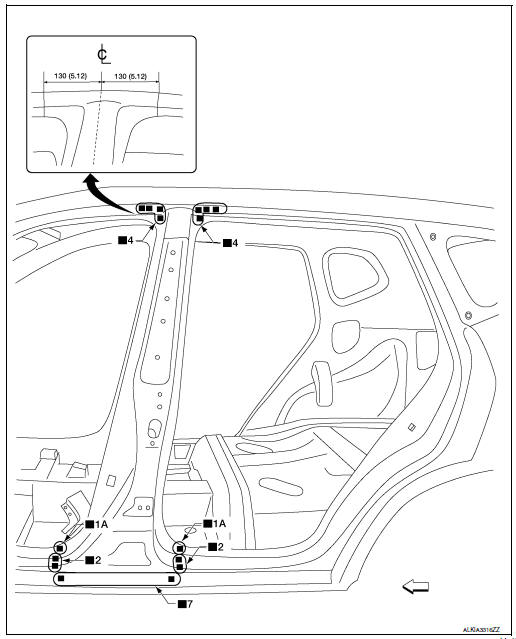

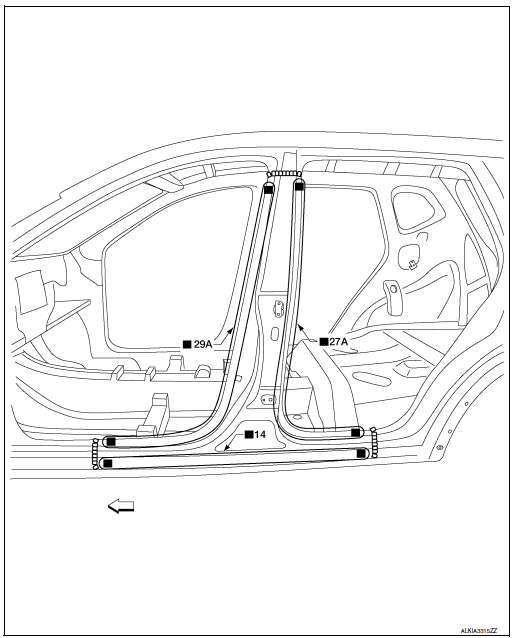

Center Pillar

Replacement parts

• Outer center pillar

Front

Replacement parts

• Center pillar reinforcement

Front

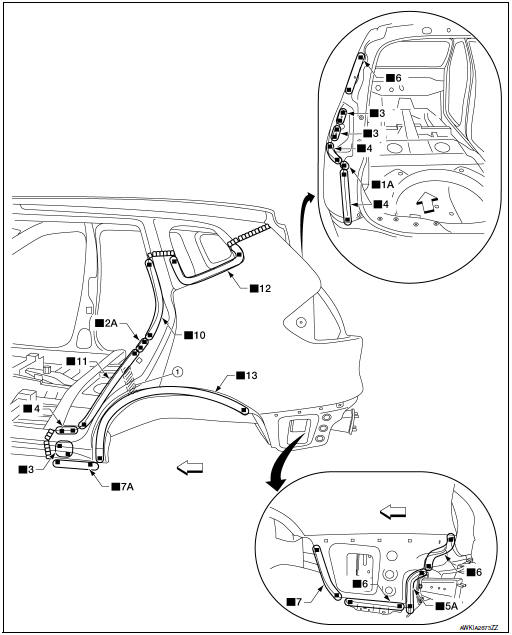

Rear Fender

Replacement parts

• Rear fender assembly (LH)

1. Urethane foam

Front

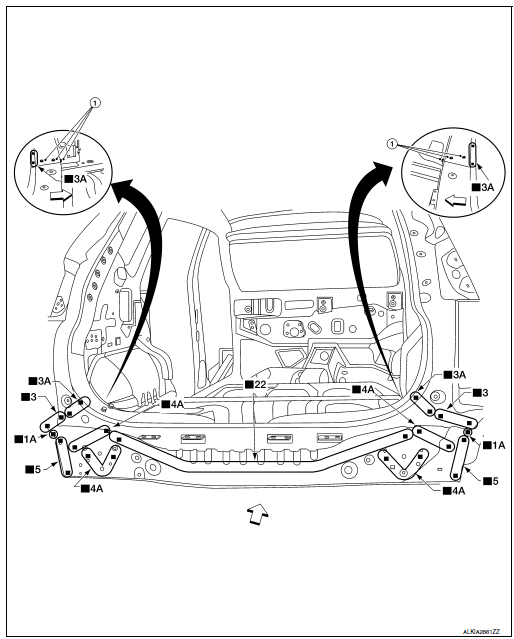

Rear Panel

Replacement parts

• Rear panel assembly

1. Bolt

Front

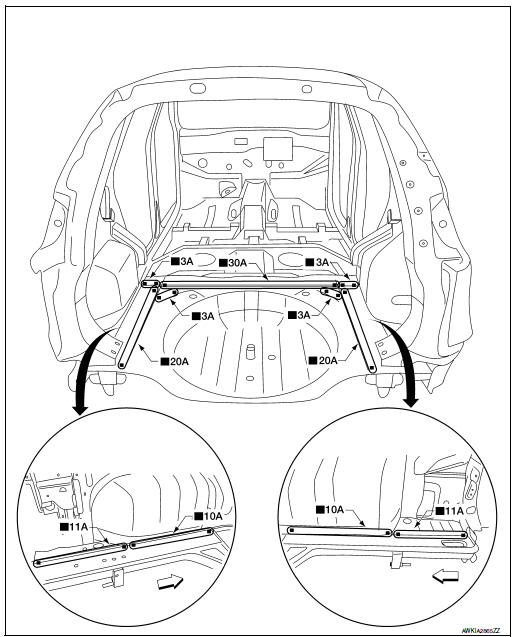

Rear Floor Rear

Work after rear panel has been removed.

Replacement parts

• Rear floor rear
• Rear floor rear side

Front

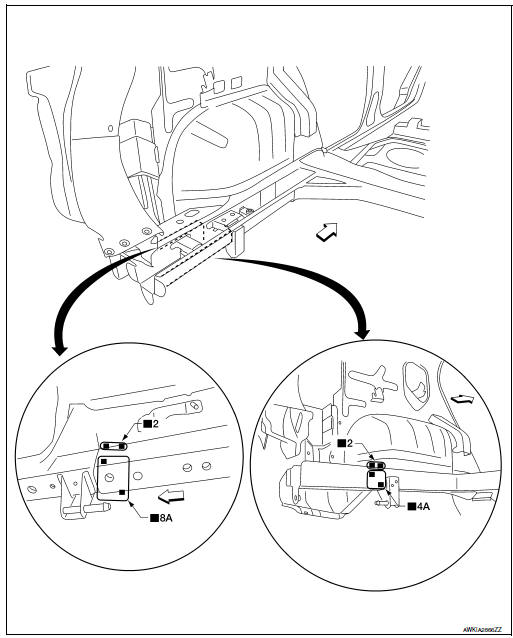

Rear Side Member Extension

Work after rear panel has been removed.

Replacement parts

• Rear side member extension (LH)

Front
