3rd row shown; 2nd row similar

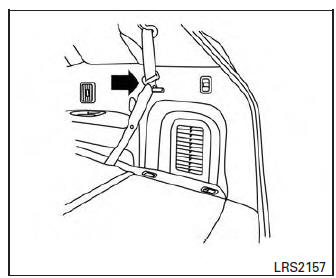

Seat belt hook
When the seat belt is not in use and when folding down the rear seats, hook the rear seat belts on the seat belt hooks.
If, because of body size or driving position, it is not possible to properly fit the lap/shoulder belt and fasten it, an extender that is compatible with the installed seat belts is available for purchase.
The extender adds approximately 8 in (200 mm) of length and are available for the:
See a NISSAN dealer for assistance with purchasing an extender if an extender is required.
WARNING
|
Seat belt maintenance
Then wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.
C1604 torque sensor
DTC Logic
DTC DETECTION LOGIC
DTC
Display item
Malfunction detected condition
Possible cause
C1604
TORQUE SENSOR
When torque sensor output signal is malfunctioning.
Harness or connector
Torque sensor
EPS control unit
...
How to follow trouble diagnoses
Description
NOTICE:
Trouble diagnoses indicate work procedures required to diagnose problems
effectively. Observe the following
instructions before diagnosing.
Before performing trouble diagnoses, read the “Work Flow” in each
section.
After repairs, re-check that the pr ...
Intake manifold
Exploded View
Intake manifold
Intake manifold gasket
Electirc throttle control actuator O-ring
Electric throttle control actuator
Removal and Installation
REMOVAL
WARNING:
To avoid danger of being scalded, do not drain engine coolant when engine is
hot.
N ...
