Nissan Rogue Service Manual: Service data and specifications (SDS)

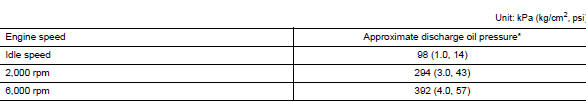

Oil Pressure
*: Engine oil temperature at 80°C (176°F)

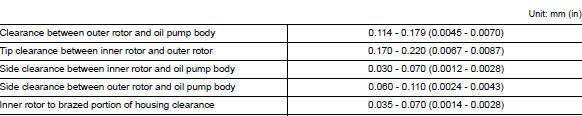

Oil Pump
Relief Valve
Oil Capacity
Oil pump
Exploded View
Front cover (Oil pump body united)
Outer rotor
Inner rotor
Oil pump cover
Regulator valve
Regulator valve spring
Regulator valve plug
CAUTION ...
