Nissan Rogue Service Manual: Side air bag (satellite) sensor

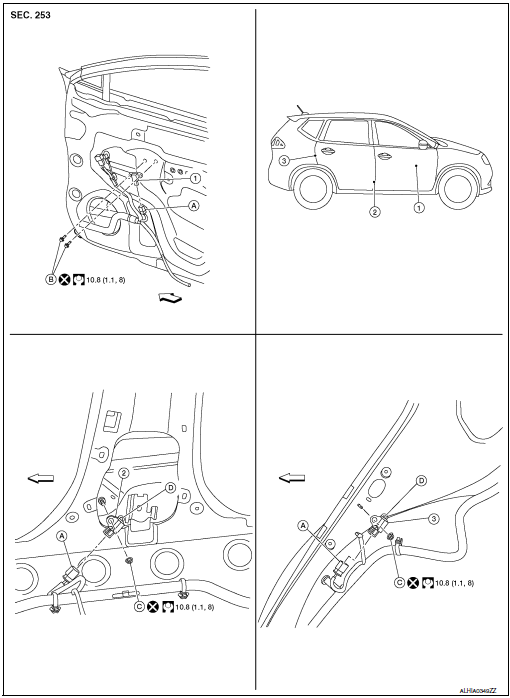

Exploded View

1. Front door satellite sensor
2. Front side air bag satellite sensor
3. Rear side satellite sensor

1. Satellite sensor harness connector
2.  Bolt
3.  Nut
4.  Pawl

Front

NOTE: RH side shown, LH side similar.

Removal and Installation

WARNING:

•  Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at least three minutes.
•  Do not use air tools or electric tools for servicing.

FRONT SIDE AIR BAG SATELLITE SENSOR

Removal

1.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation".
2.  Place aside the front seat belt retractor.
3.  Remove the front side air bag satellite sensor nut.

   CAUTION: Do not reuse the front side air bag satellite sensor nut.

4.  Disconnect the harness connector from the front side air bag satellite sensor and remove.

CAUTION:

•  Replace the front side air bag satellite sensor if it has been dropped or sustained an impact.
•  Do not strike the front side air bag satellite sensor.

Installation

Installation is in the reverse order of removal.

1. Position the front side air bag satellite sensor using the pawl before tightening the nut to specification.

CAUTION:

•  Do not reuse the front side air bag satellite sensor nut.
•  Do not damage the harness connector during installation.
• After installation is complete, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
•  If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with CONSULT".

REAR SIDE AIR BAG SATELLITE SENSOR

Removal

1.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation".
2.  Remove the luggage side lower finisher. Refer to INT-34, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation - With Third Row Seat" (WITH THIRD ROW SEAT), INT-34, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation - With Third Row Seat" (WITHOUT THIRD ROW SEAT).
3.  Remove the rear side air bag satellite sensor bolt.

   CAUTION: Do not reuse the rear side air bag satellite sensor bolt.

4.  Disconnect the harness connector from the rear side air bag satellite sensor and remove.

CAUTION:

•  Replace the rear side air bag satellite sensor if it has been dropped or sustained an impact.
•  Do not strike the rear side air bag satellite sensor.

  Installation Installation is in the reverse order of removal.

•  Position the rear side air bag satellite sensor using the pawl before tightening the bolt to specification.

CAUTION:

•  Do not reuse the rear side air bag satellite sensor bolt.
•  Do not damage the harness connector during installation.
• After installation is complete, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
•  If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with CONSULT".

FRONT DOOR SATELLITE SENSOR

Removal

1.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation".
2.  Remove the front door finisher. Refer to INT-15, "Removal and Installation".
3.  Partially remove front door vapor barrier.
4.  Remove the front door satellite sensor bolts.

   CAUTION: Do not reuse the front door satellite sensor bolts.

5.  Disconnect the harness connector from the front door satellite sensor and remove.

CAUTION:

•  Replace the front door satellite sensor if it has been dropped or sustained an impact.
•  Do not strike the front door satellite sensor.

Installation

Installation is in the reverse order of removal.

CAUTION:

•  Do not reuse the front door satellite sensor bolts.
•  Do not damage the harness connector during installation.
•  After installation is complete, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
•  If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with CONSULT".
