Nissan Rogue Owners Manual: Specifications
Engine
| Model | QR25DE | |
| Type | Gasoline, 4-cycle, DOHC | |
| Cylinder arrangement | 4-cylinder | |
| Bore x Stroke |
in (mm) |
3.5 x 3.9 (89.0 x 100.0) |
| Displacement |
cu in (cm3) |
151.82 (2,488) |
| Firing order | 1-3-4-2 | |
| Idle speed | No adjustment is necessary. | |
| CVT (in “N” position) | ||
| Ignition timing (degree B.T.D.C. at idle speed) | ||
| CO % at idle | ||
| Spark plug | FXE20HE-11C | |
| Spark plug gap (Nominal) |
in (mm) |
0.043 (1.1) |
| Camshaft operation | Timing chai | |
This spark ignition system complies with the Canadian standard ICES-002

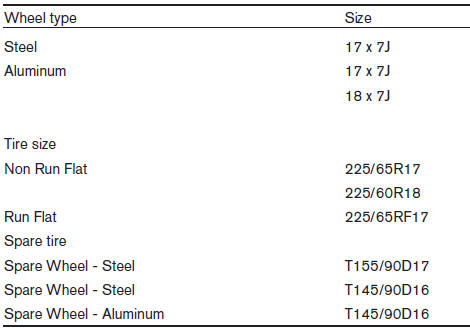

Wheels and tires

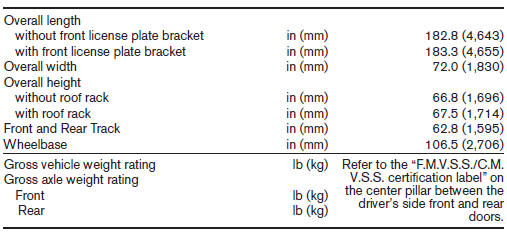

Dimensions and weights
Air conditioner system refrigerant and oil recommendations
The air conditioner system in your NISSAN
vehicle must be charged with the refrigerant
HFC-134a (R-134a) and NISSAN A/C
system oil Type ND-OIL8 or the exact
equivalents.
CAUTIONThe use of ...
When traveling or registering your vehicle in
another country
When planning to drive your NISSAN vehicle
in another country, you should first find
out if the fuel available is suitable for your vehicle’s
engine.
Using fuel with an octane rating that is t ...
Other materials:
Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”,
used along
with a front seat belt, helps to reduce the risk or severity of injury to the
...
The light reminder warning does not sound
Description
Light reminder warning does not sound even though headlamp is illuminated.
Diagnosis Procedure
1.CHECK COMBINATION METER INPUT SIGNAL
Select the "Data Monitor" for the "METER/M&A" and check the "BUZZER" monitor
value.
Is the inspection result ...
Changing wheels and tires
Tire rotation
NISSAN recommends rotating the tires
every 7,500 miles (12,000 km).
Refer to “Flat tire” in the “In case of emergency”
section in this manual for tire replacing
procedures.
As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
...
