Nissan Rogue Service Manual: Steering column
Inspection
HOLE COVER SEAL, HOLE COVER AND LOWER SHAFT
Check each part of hole cover seal, hole cover and steering column and lower shaft for damage or other malfunctions.
Replace if necessary.
STEERING COLUMN
- Check each part of steering column for damage or other malfunctions. Replace entire steering column if any parts are damaged.
- Measure the steering column length (with the steering wheel and airbag module installed) if vehicle has been involved in a minor collision. Replace steering column if outside the specifications.
Steering column length (with steering wheel and air bag module installed) : Refer toST-18, "Steering Column".
- Measure steering column rotating torque using suitable tool. Replace steering column if outside the standard.
Rotating torque : Refer to ST-18, "Steering Column".

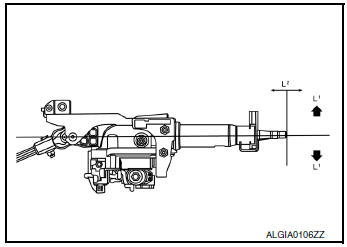

- Check tilt and telescopic mechanism operating range (L1), (L2) as shown.
Tilt operating range (L1) : Refer to ST-18, "Steering
Column".
Telescopic operating range
(L2)
: Refer toST-18, "Steering
Column".
Steering wheel
Inspection
STEERING WHEEL AXIAL END PLAY
Check installation conditions of steering gear, front suspension
assembly, axle and steering column.
Check if movement exists when steeri ...
Steering gear and linkage
Inspection
BOOT
Check boot for cracks. Replace if any damage is found.
OUTER SOCKET AND INNER SOCKET
Boot
Check boot for cracks, and replace it if a malfunction is
detected.
Gear H ...
