Nissan Rogue Service Manual: Sunshade motor assembly
Removal and Installation
REMOVAL
- Remove the headlining. Refer to. INT-30, "Removal and Installation".

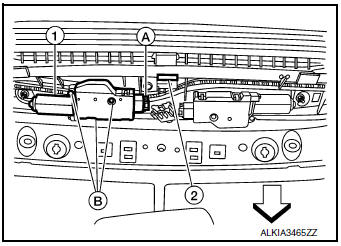

- Disconnect the harness connector (A) from the sunshade motor assembly (1).
- Remove sunshade motor assembly screws (B).
- Remove the sunshade motor assembly from the moonroof unit
assembly (2).
Front
INSTALLATION
Installation is in the reverse order of removal.
- Synchronize sunshade motor assembly with moonroof unit assembly. Refer to RF-24, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement".
