Nissan Rogue Service Manual: System description
DESCRIPTION

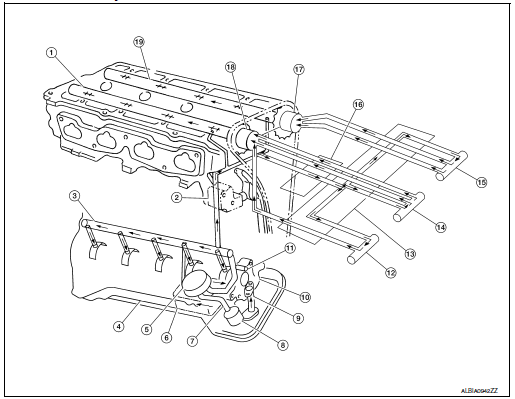

Engine Lubrication System
- Camshaft (INT)
- Chain tensioner
- Main gallery
- Oil pan
- Oil cooler
- Balancer unit
- Oil pan oil gallery
- Oil filter (with relief valve)
- Oil Strainer
- Oil pump
- Timing chain and balancer unit timing chain oil jet
- Intake valve timing intermediate lockcontrol solenoid valve
- Intake valve timing control cover
- Intake valve timing control solenoid valve
- Exhaust valve timing control solenoid valve
- Front cover
- Exhaust valve timing controller
- Intake valve timing controller
- Camshaft (EXH)

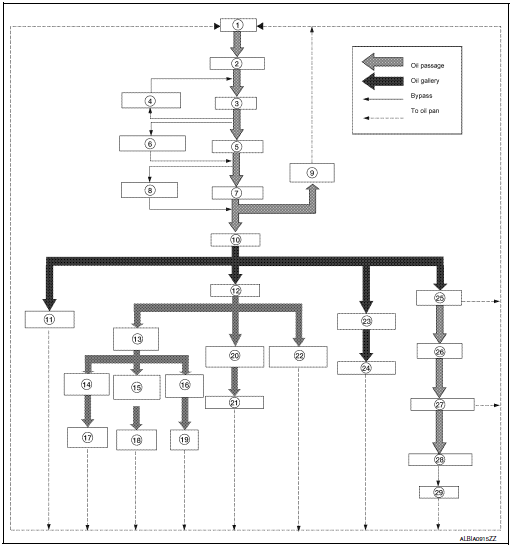

Engine Lubrication System Schematic
- Oil pan
- Oil strainer
- Oil pump
- Regulator valve
- Oil filter
- Relief valve (Built in oil filter)
- Oil cooler
- Relief valve
- Chain oil jet
- Main gallery
- Piston oil jet
- Cylinder head
- C-VTC oil filter
- C-VTC EXH solenoid valve
- C-VTC intermediate solenoid valve
- C-VTC INT solenoid valve
- C-VTC exhaust
- C-VTC intermediate
- C-VTC intake
- Camshaft journal
- Camshaft
- Chain tensioner
- Balancer housing
- Balancershaft journal
- Main bearing
- Crankshaft
- Connectiong rod bearing
- Connectiong rod
- Piston
Preparation
Special Service Tools
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name
Description
KV10111100
(J-37228)
...
