Nissan Rogue Service Manual: System description
STRUCTURE AND OPERATION

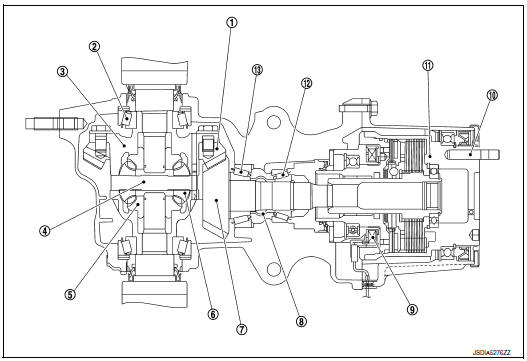

Sectional View
- Drive gear
- Side bearing
- Differential case
- Pinion mate shaft
- Side gear
- Pinion mate gear
- Drive pinion
- Collapsible spacer
- AWD solenoid
- Stud bolt
- Electric controlled coupling
- Pinion front bearing
- Pinion rear bearing
Electric Controlled Coupling
The electric controlled coupling operates as the AWD system. For the operation, refer to DLN-12, "Operation Description".
Preparation
Special Service Tools
The actual shapes of TechMate tools may differ from those of special service
tools illustrated here.
Tool number
(TechMate No.)
Tool name
Description
...
Symptom diagnosis
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NVH Troubleshooting Chart
Use the chart below to find the cause of the symptom. If necessary, repair or
replace these parts.
×: Applicabl ...
