Nissan Rogue Service Manual: TCM

Nissan Rogue Service Manual / Transmission & driveline / Transaxle & Transmission / Removal and installation / TCM

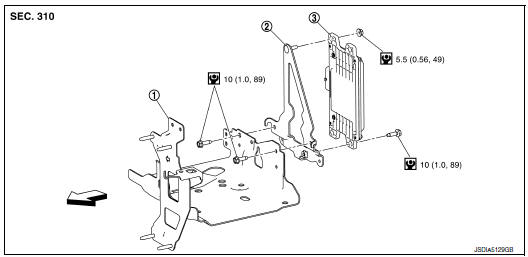

Exploded View

Exploded View

Bracket
Bracket
TCM

: Vehicle front
: N·m (kg-m, in-lb)

Removal and Installation

CAUTION:

Do not impact the TCM when removing or installing TCM.
When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then replace TCM. Refer to TM-82, "Description".
Before replacing TCM, save TCM data using "ADDITIONAL SERVICE WHEN REPLACING TCM".
Refer to TM-82, "Work Procedure".
When replacing TCM, note the “CVTF DETERIORATION DATE” value displayed on CONSULT “CONFORM CVTF DETERIORTN” in MAINTENANCE BOOKLET, before start the operation.

REMOVAL

Disconnect the battery negative terminal. Refer to PG-75, "Exploded View".
Remove the air duct (inlet). Refer to EM-24, "Exploded View".
Disconnect the TCM harness connector (A).

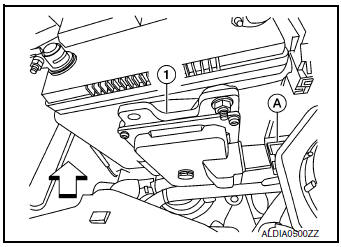

Removal

(1) : TCM
: Front

Remove the TCM nuts and remove TCM from bracket.

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

ADJUSTMENT AFTER INSTALLATION

Perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to TM-82, "Description".
