DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms (Trouble diagnosis content)	DTC detecting condition
U1050	LIN COMMUNICATION [LIN (Local Interconnect Network) communication)]	ECM detects LIN communication error.
U1051		ECM detects LIN communication error.

POSSIBLE CAUSE

Harness or connectors (LIN communication circuit is open or shorted.)
Generator
ECM

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted. always perform the following procedure before conducting the next test.

Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

Turn ignition ON and wait at least 10 seconds.
Check DTC.

Is DTC detected? YES >> Proceed to EC-175, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK LIN COMMUNICATION CIRCUIT

Turn ignition switch OFF.
Disconnect ECM harness connector and generator harness connector.
Check the continuity between ECM harness connector and generator harness connector.

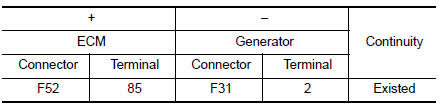

Check lin communication circuit

Also check harness for short to power and short to ground.

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace error-detected parts.

2.REPLACE GENERATOR

Replace generator. Refer to CHG-20, "Removal and Installation".
Erase DTC.
Perform DTC confirmation procedure again. Refer to EC-175, "DTC Description".

Is DTC detected again? YES >> Replace ECM. Refer to EC-499, "Removal and Installation".

NO >> INSPECTION END
