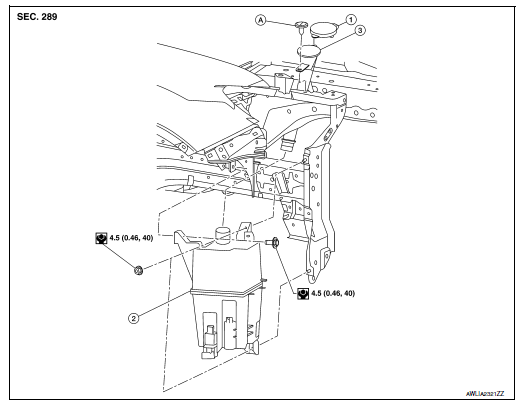

Exploded View

Exploded View

Cap
Washer tank
Washer tank inlet
Clip

Removal and Installation

REMOVAL

Drain washer fluid.
Using a suitable tool release washer tank inlet clip and remove washer tank inlet.
Remove engine side cover. Refer EXT-28, "FENDER PROTECTOR : Exploded View".
Remove engine under cover. Refer to EXT-37, "ENGINE UNDER COVER : Removal and Installation".
Remove front fender protector (RH). Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
Disconnect harness connector from rear view camera washer motor then front and rear washer motor.
Disconnect washer level switch harness connector (if equipped).
Disconnect front and rear washer motor tubes and the rear view camera washer motor tube (if equipped).
Remove washer tank nuts and bolt and remove the washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Add water up to the top of washer tank inlet after installing. Check that no leaks exist.
Fill washer tank with specified amount of fluid. Refer to WW-75, "Specifications".
