Nissan Rogue Owners Manual: Windows

POWER WINDOWS

The power windows operate when the ignition switch is placed in the ON position, or for a period of time after the ignition switch is placed in the OFF position. If the driver’s or passenger’s door is opened during this period of time, the power to the windows is canceled.

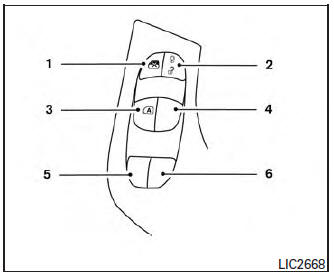

Power windows

1. Window lock button
2.  Power door lock switch
3.  Driver side automatic switch
4.  Front passenger side switch
5.  Left rear passenger side switch
6.  Right rear passenger side switch

Driver’s side power window switch

The driver’s side control panel is equipped with switches to open or close all of the windows.

To open a window, push the switch to the first detent and continue to hold down until the desired window position is reached. To close a window, pull the switch to the first detent and continue to hold up until the desired window position is reached.

Locking passengers’ windows

When the window lock switch is depressed, only the driver’s side window can be opened or closed. Push it again to cancel the window lock function.

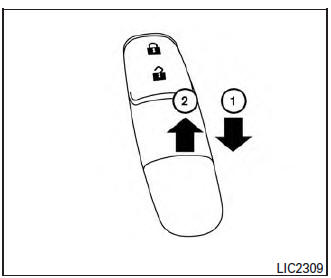

Front passenger’s power window switch

The passenger’s window switch operates only the corresponding passenger’s window. To open the window partially, push the switch down 1 lightly until the desired window position is reached. To close the window partially, pull the switch up 2 until the desired window position is reached.

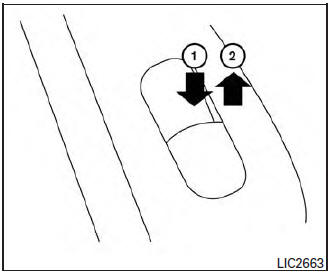

Rear power window switch

The rear power window switches open or close only the corresponding windows. To open the window, push the switch and hold it down 1 . To close the window, pull the switch up 2 .

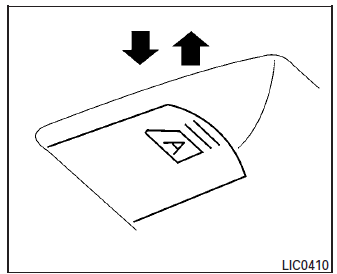

Automatic operation

To fully open a window, press the window switch down to the second detent and release it; it need not be held. The window automatically opens all the way. To stop the window, lift the switch up while the window is opening.

To fully close a window, pull the switch up to the second detent and release it; it need not be held.

To stop the window, press the switch down while the window is closing.

Auto-reverse function

The auto-reverse function can be activated when a window is closed by automatic operation.

Depending on the environment or driving conditions, the auto-reverse function may be activated if an impact or load similar to something being caught in the window occurs.

If the vehicle’s battery is disconnected, replaced, or jump started, the power window auto-reverse function may not operate properly. If this occurs, please contact the dealer to re-initialize the power window auto-reverse system.

If the control unit detects something caught in a window equipped with automatic operation as it is closing, the window will be immediately lowered.
