Nissan Rogue Service Manual: Wiring diagram
NVIS
Wiring Diagram

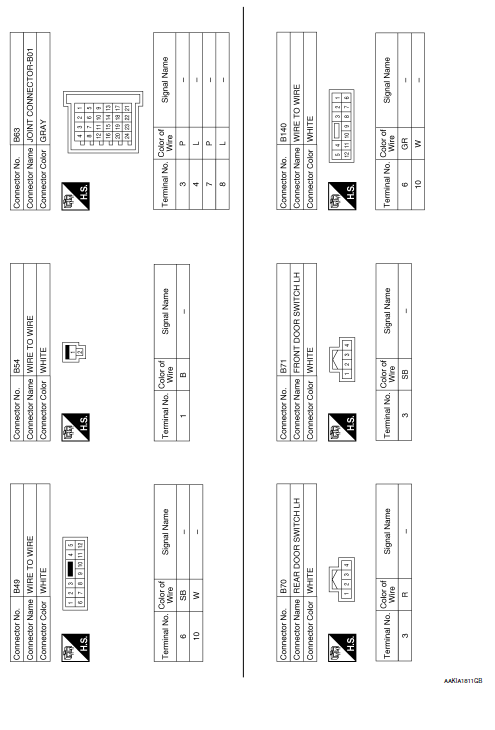

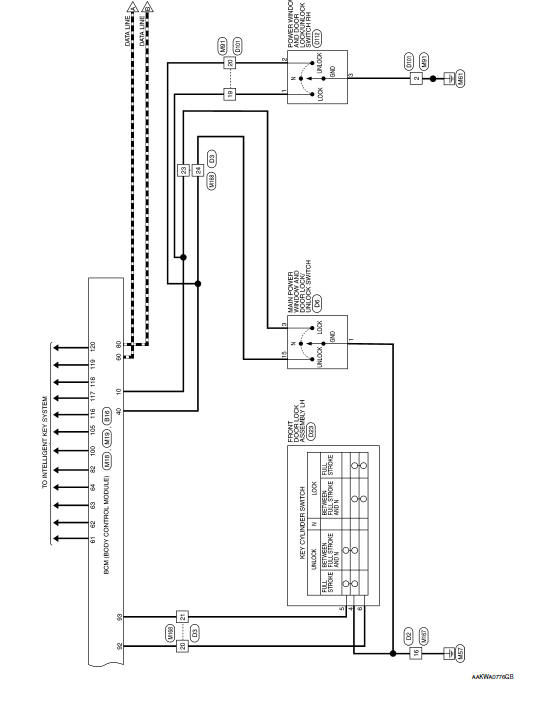

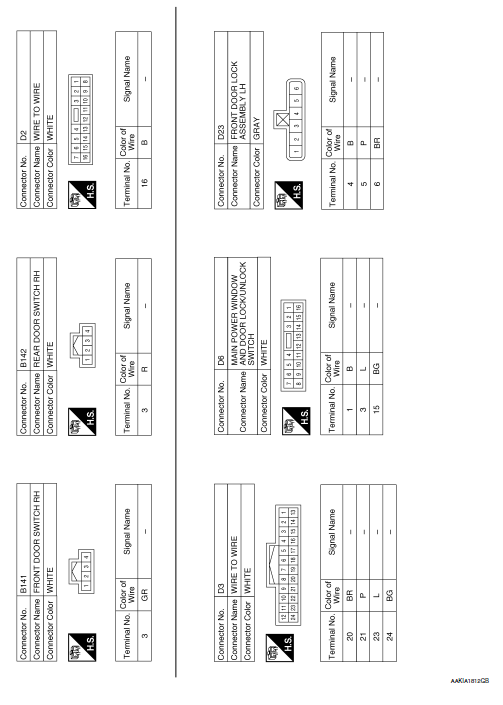

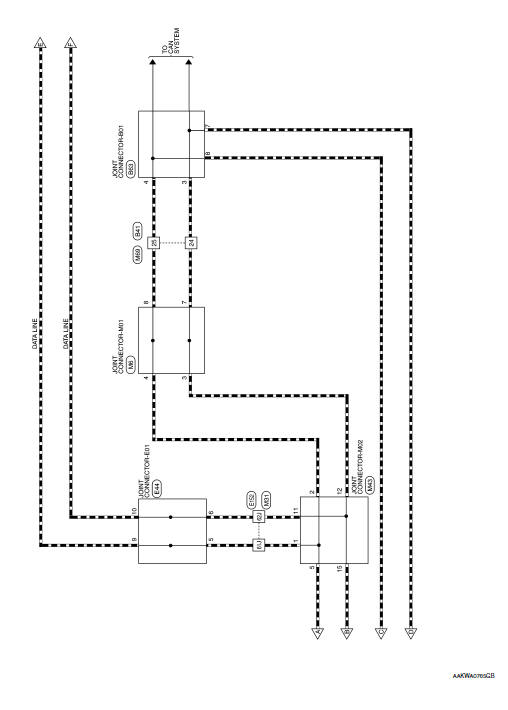

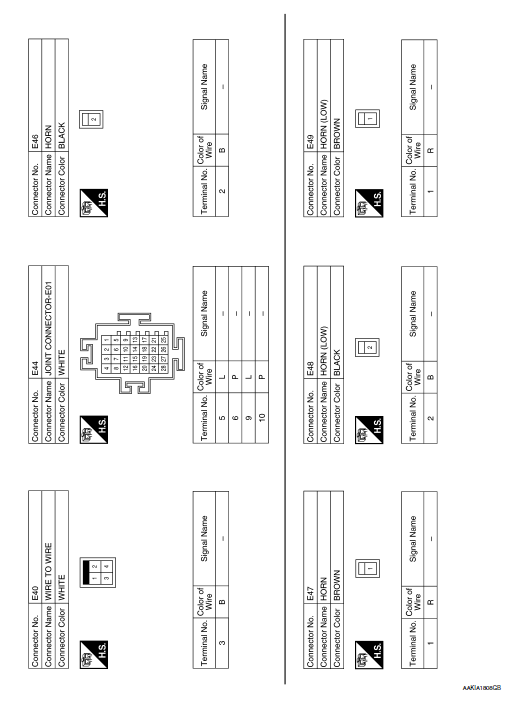

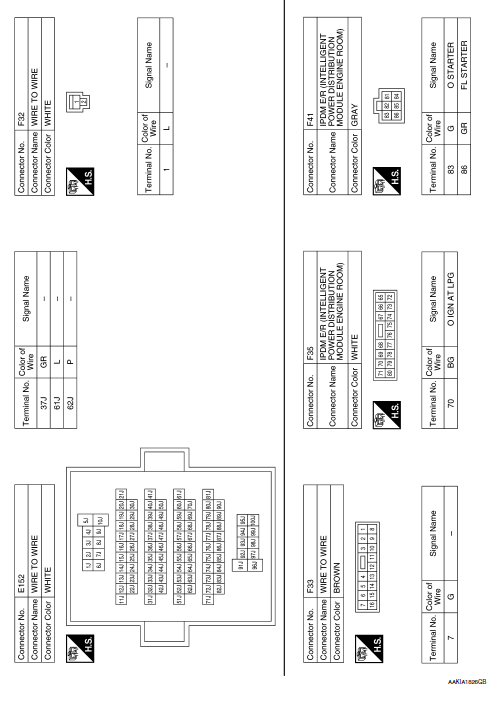

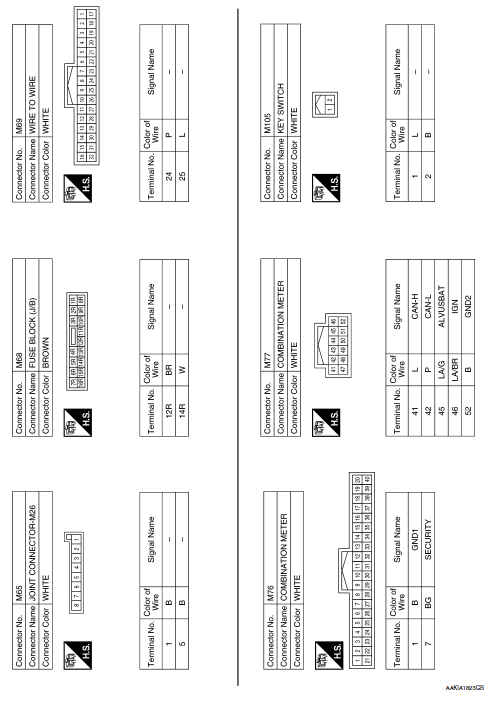

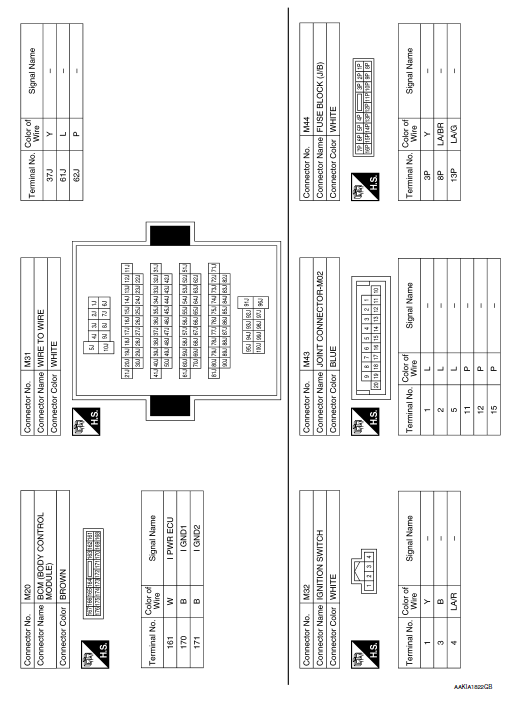

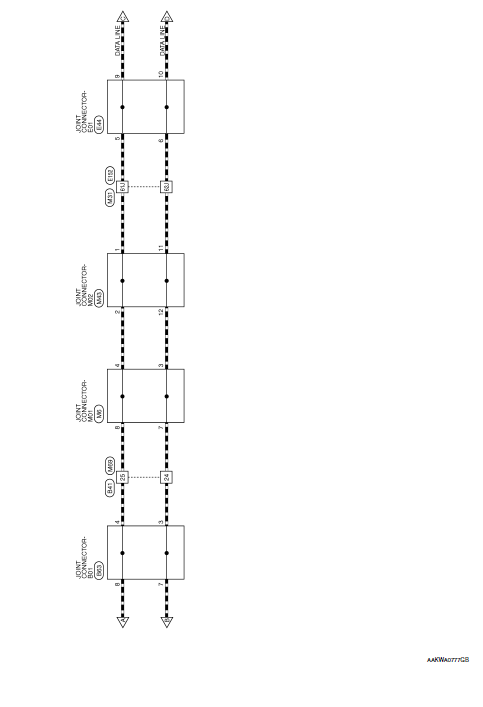

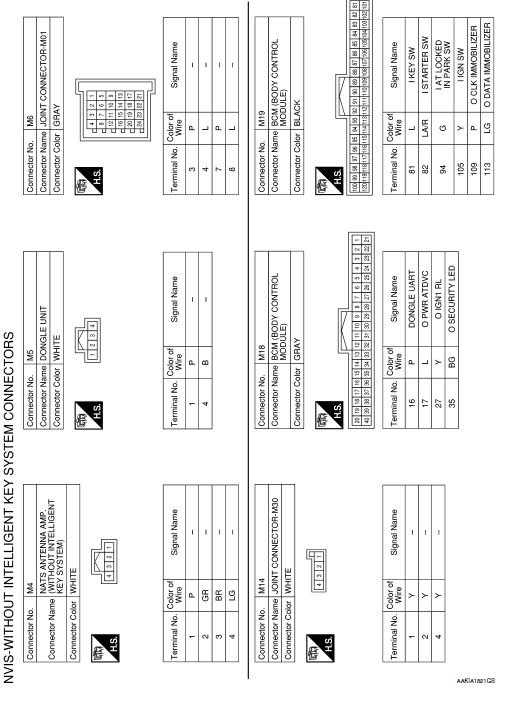

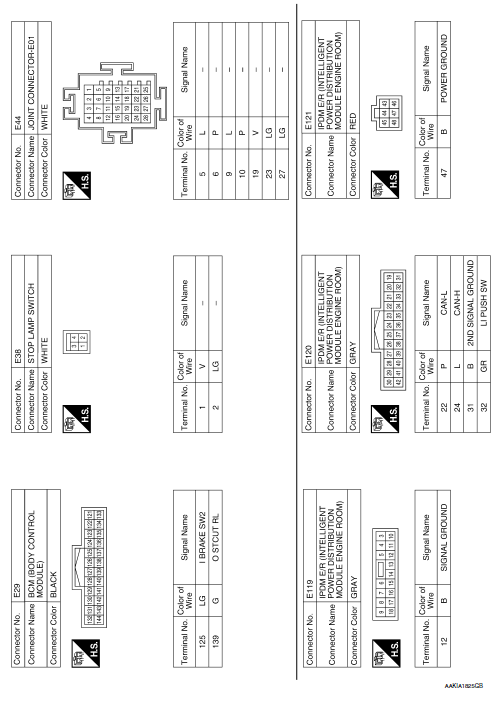

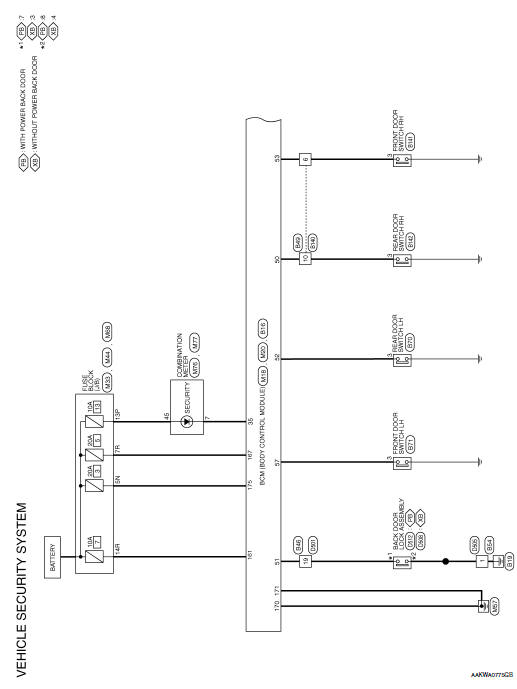

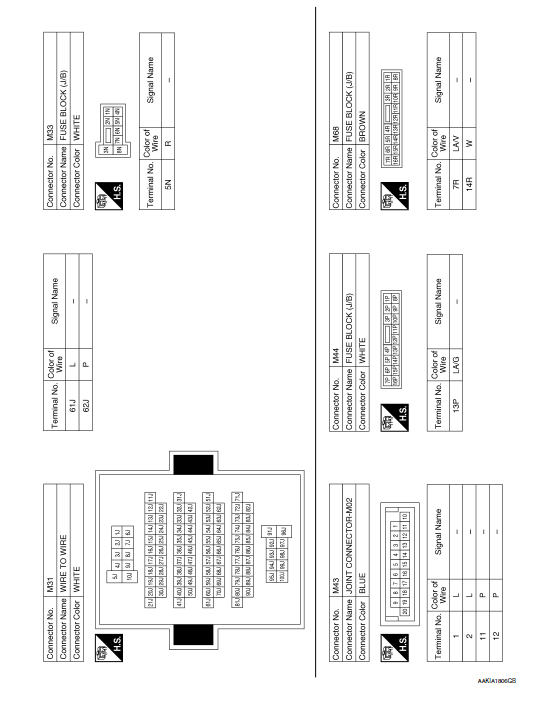

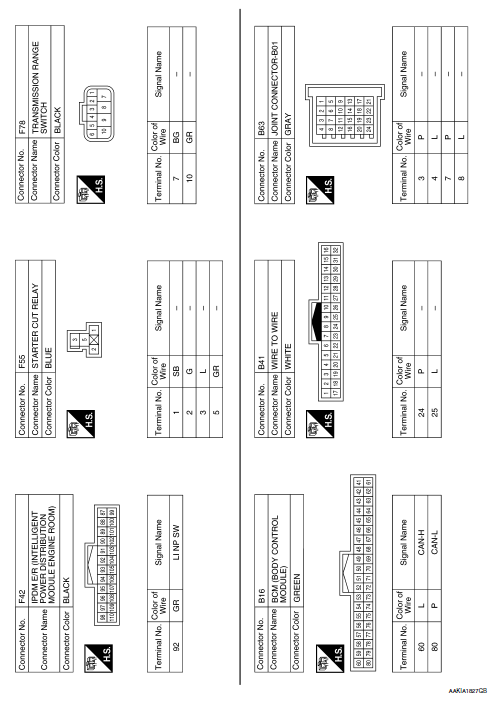

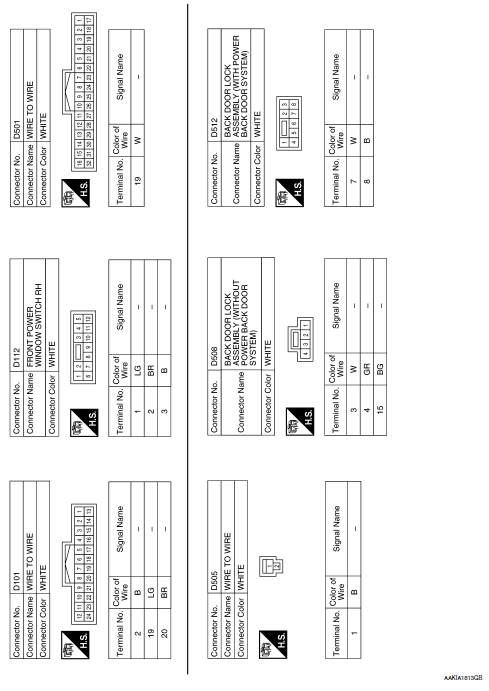

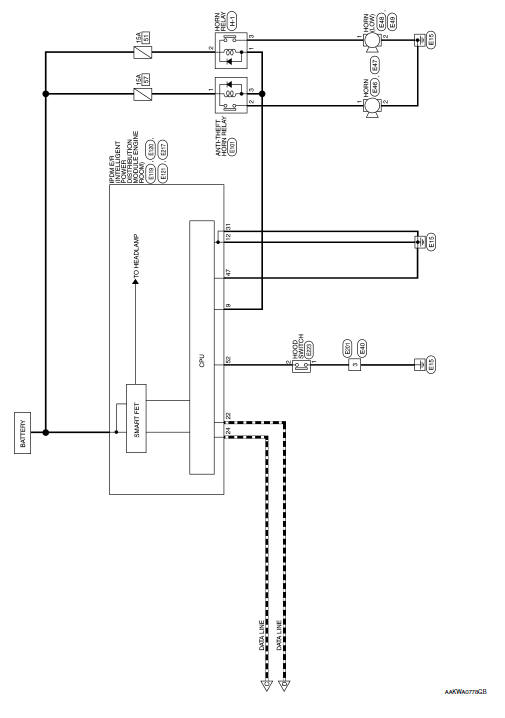

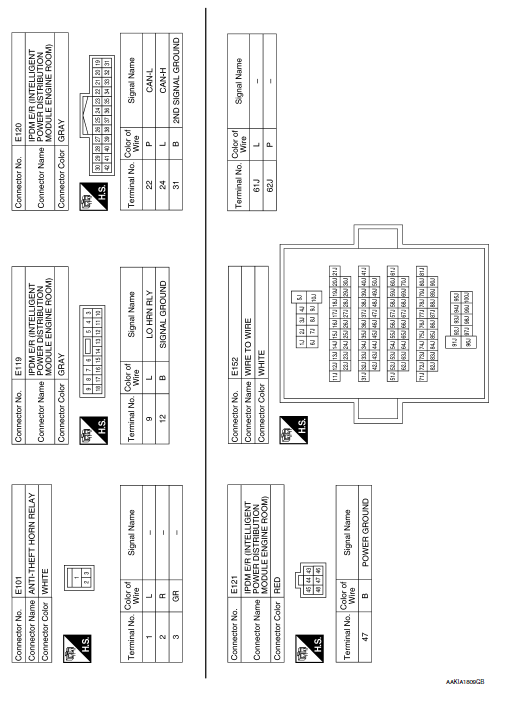

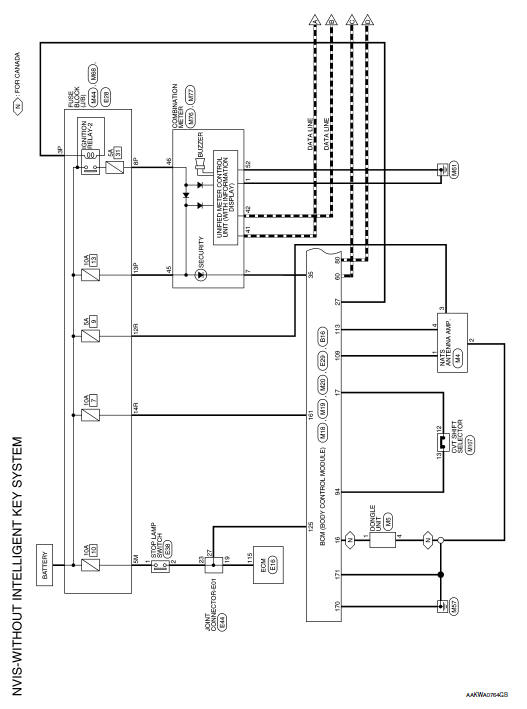

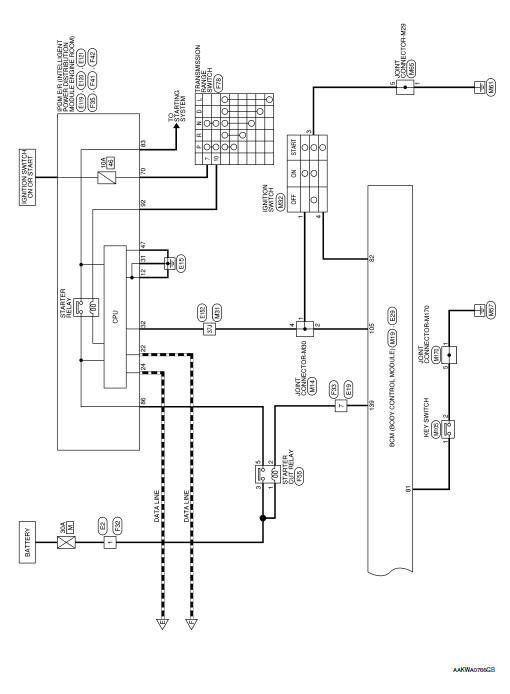

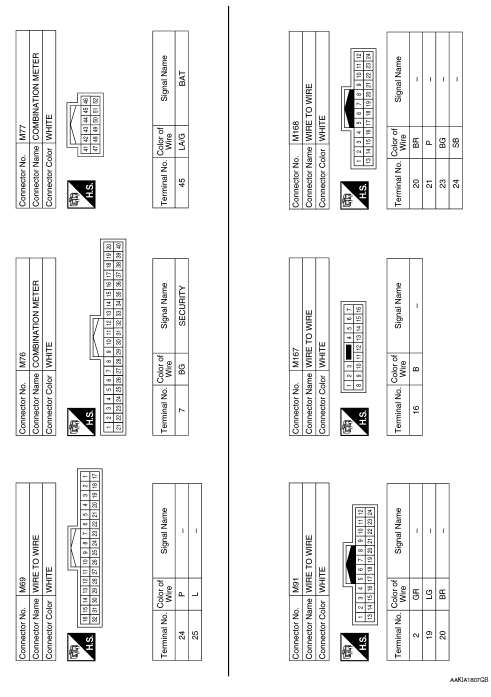

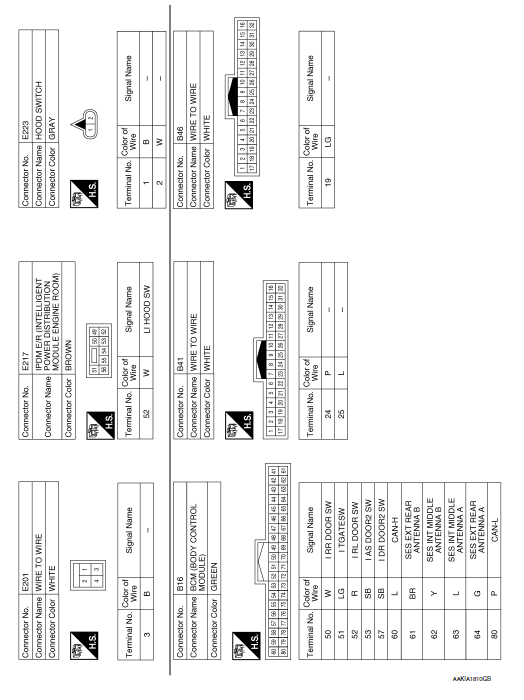

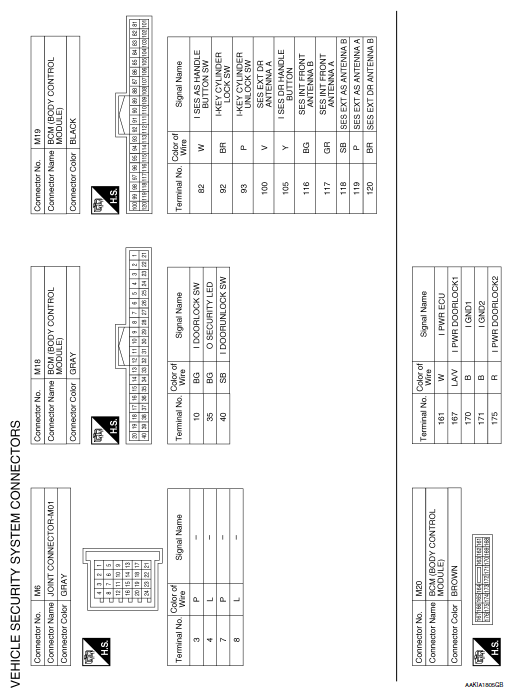

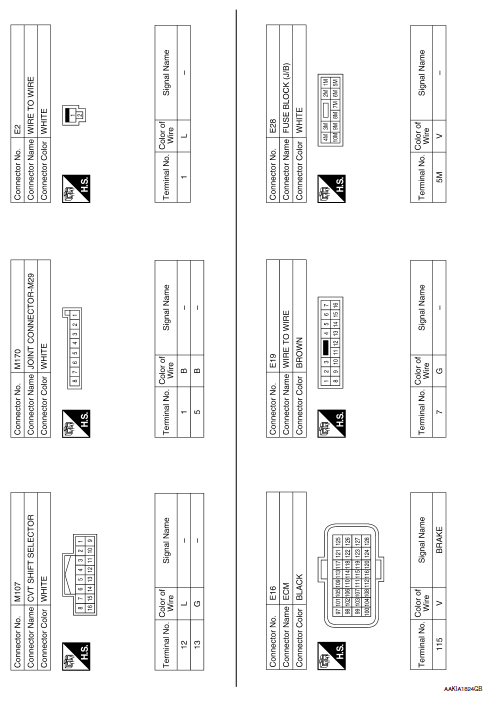

VEHICLE SECURITY SYSTEM
Wiring Diagram
ECU diagnosis information
ECM, IPDM E/R, BCM
List of ECU Reference
...
Basic inspection
DIAGNOSIS AND REPAIR WORKFLOW
Work Flow
OVERALL SEQUENCE
DETAILED FLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the
condition and the ...
Other materials:
Connecting Procedure
Connecting Procedure
NOTE:
The connecting procedure must be performed
when the vehicle is stationary. If the
vehicle starts moving during the procedure,
the procedure will be cancelled.
Press the [ ] button
on the control
panel.
Touch the “Settings” key.
T ...
ECU diagnosis information
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)
Reference Value
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
PHYSICAL VALUES
1: With Intelligent Key system
2: With remote keyless entry
Fail-safe
CAN COMMUNICATION CONTROL
When CAN communicati ...
ECU diagnosis information
TCM
Reference Value
CONSULT DATA MONITOR STANDARD VALUE
In CONSULT, electric shift timing or lock-up timing, i.e.
operation timing of each solenoid valve, is displayed.
Therefore, if there is an obvious difference between the shift timing
estimated from a shift shock (or engine
...
