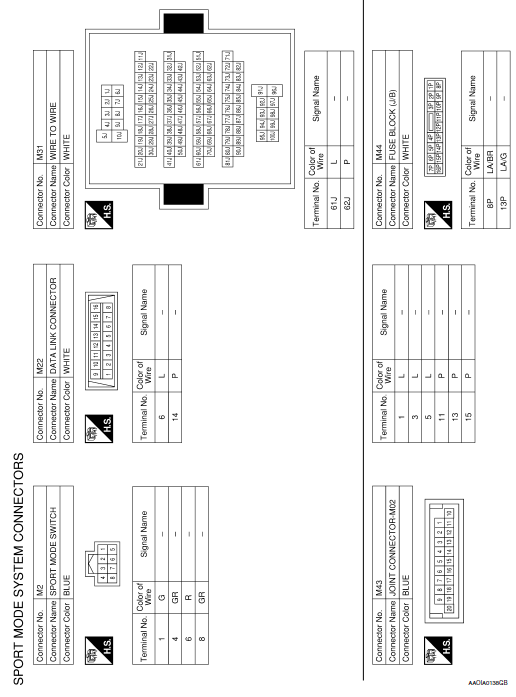

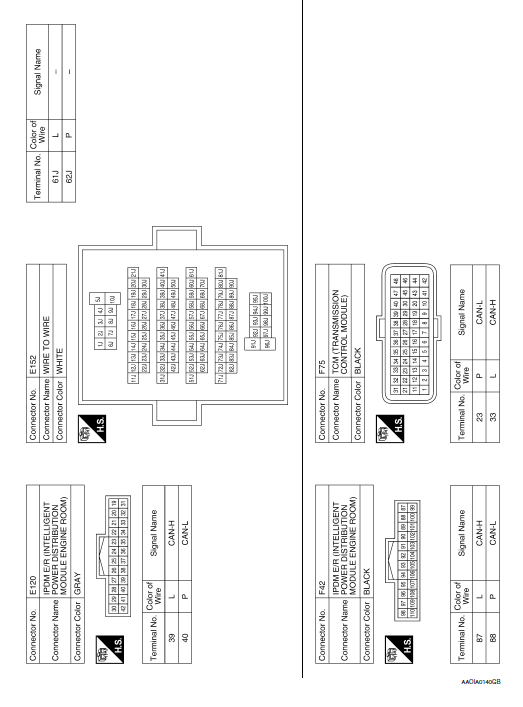

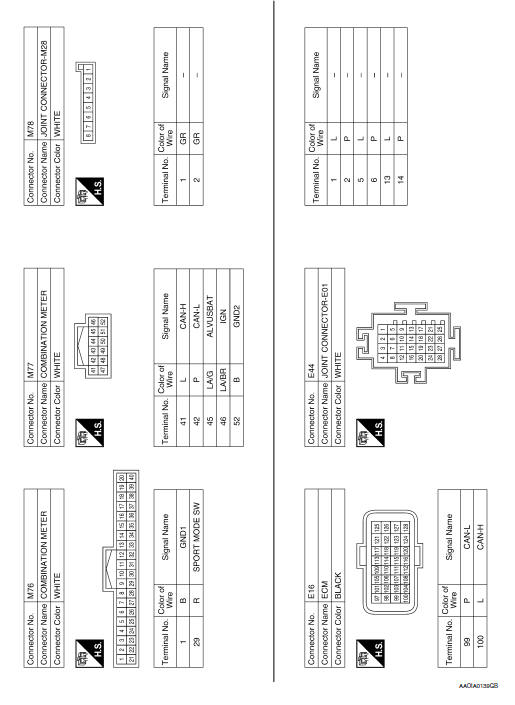

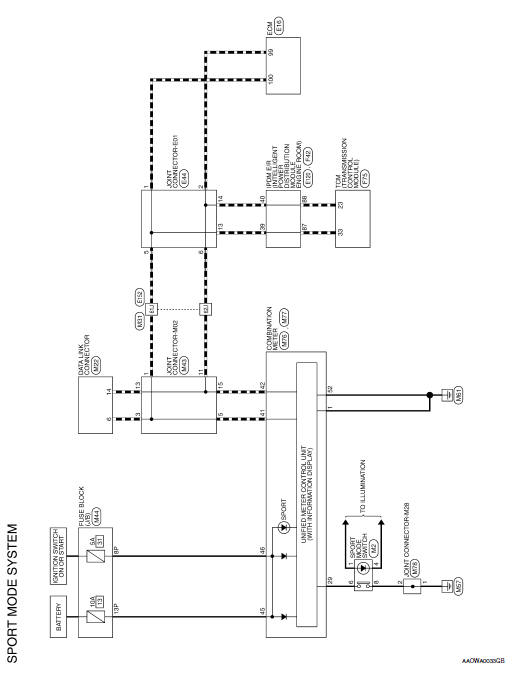

Nissan Rogue Service Manual: Wiring diagram

ECU diagnosis information

SPORT MODE List of ECU Reference ...

Basic inspection

DIAGNOSIS AND REPAIR WORK FLOW Work Flow DETAILED FLOW 1.OBTAIN INFORMATION ABOUT SYMPTOM Interview the customer to obtain as much information as possible about the conditions and environment un ...
