Nissan Rogue Service Manual: Combination meter
Reference Value

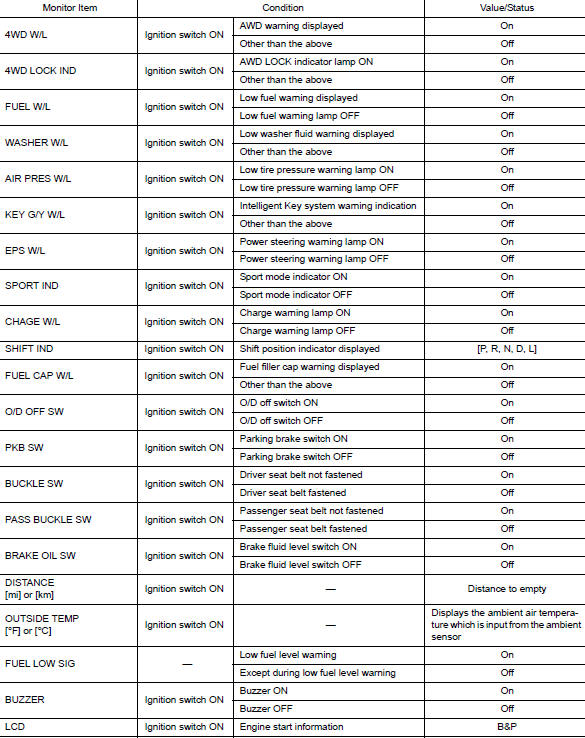

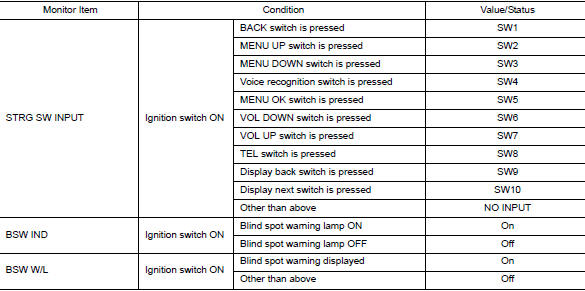

VALUES ON THE DIAGNOSIS TOOL
*: DDS (hill descent control)
NOTE: Some items are not available according to vehicle specification.

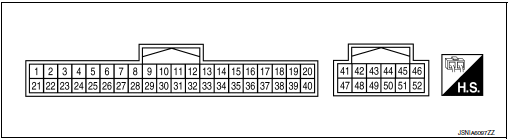

TERMINAL LAYOUT

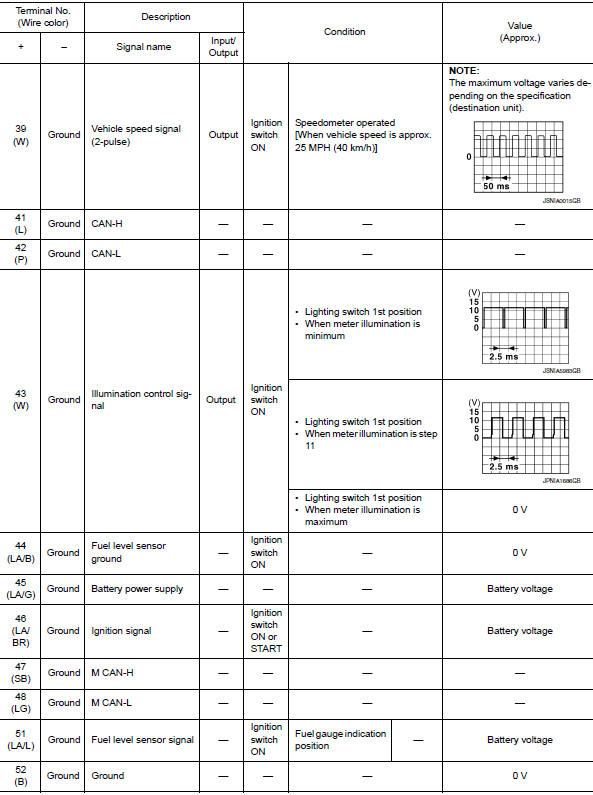

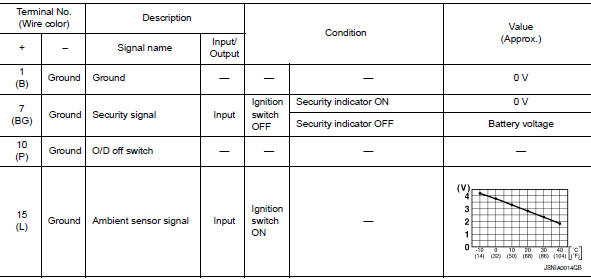

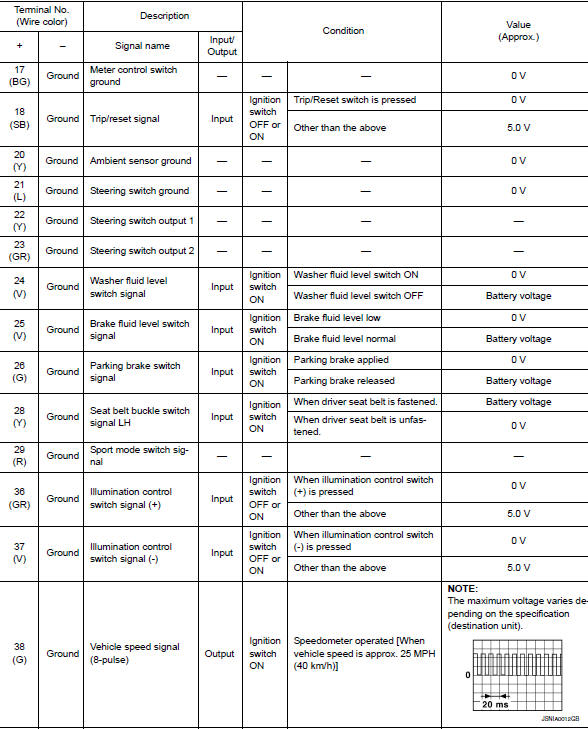

PHYSICAL VALUES

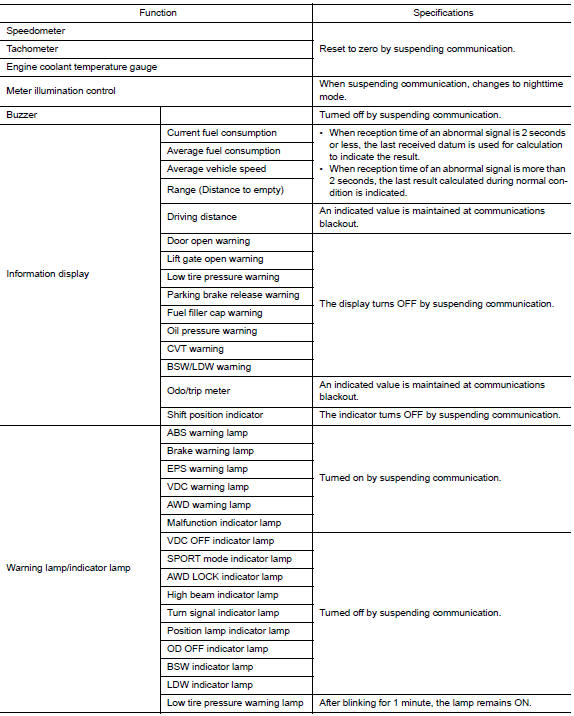

Fail-safe
The combination meter activates the fail-safe control if the CAN communication lines between each unit are malfunctioning

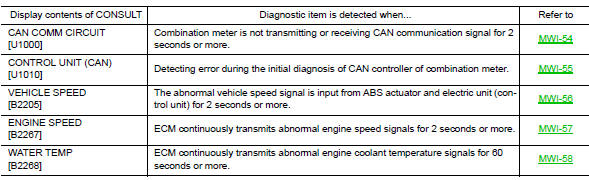

DTC Index
BCM (body control module)
List of ECU Reference
...
